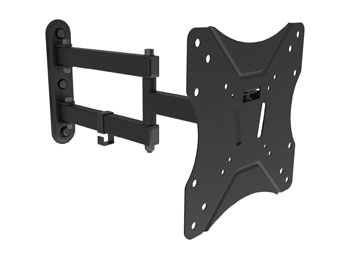

23"-42” Articulating TV Wall Mount Bracket
Model 650404EAN 4015867198919
26 specifications
- Weight1.95 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-7.5 - 7.5°
- Width230 mm
Overview
- Weight
- 1.95 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -7.5 - 7.5°
- Width
- 230 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650404
- Part number
- 650404
- EAN / UPC
- 4015867198919
- Also known as
- Equip 23"-42” Articulating TV Wall Mount Bracket
Specifications
26 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 106.7 cm (42") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -7.5 - 7.5° |
| Swivel angle range | -90 - 90° |
| Cable management | Yes |
| Distance to the wall (max) | 40.3 cm |
| Distance to the wall (min) | 7.2 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | CE |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 403 mm |
| Height | 230 mm |
| Weight | 1.95 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 235 mm |
| Package depth | 78 mm |
| Package height | 275 mm |
| Package weight | 2.2 kg |
