Equip 43"-86" Back to Back Dual Screen Ceiling Mount

43"-86" Back to Back Dual Screen Ceiling Mount

Model 650377EAN 4015867241639

39 specifications

Weight8.2 kg
ColourBlack
Number of displays supported2
Height adjustmentYes
Compliance certificatesREACH, RoHS
Width689 mm

See all specifications

Overview

Weight: 8.2 kg
Colour: Black
Number of displays supported: 2
Height adjustment: Yes
Compliance certificates: REACH, RoHS
Width: 689 mm

Brand: Equip
Category: TV Mounts & Stands
Model: 650377
Part number: 650377
EAN / UPC: 4015867241639
Also known as: Equip 43"-86" Back to Back Dual Screen Ceiling Mount

Specifications

39 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	2
Maximum weight capacity (per display)	50 kg
Maximum weight capacity	100 kg
Minimum screen size	109.2 cm (43")
Maximum screen size	2.18 m (86")
Mounting type	Ceiling
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200,300 x 200,400 x 200,300 x 300,400 x 300,400 x 400,600 x 400

Ergonomics

Specification	Value

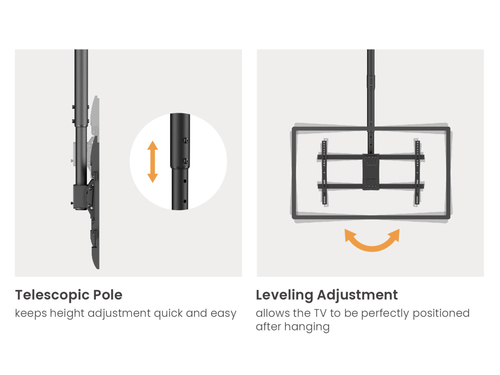

Height adjustment	Yes

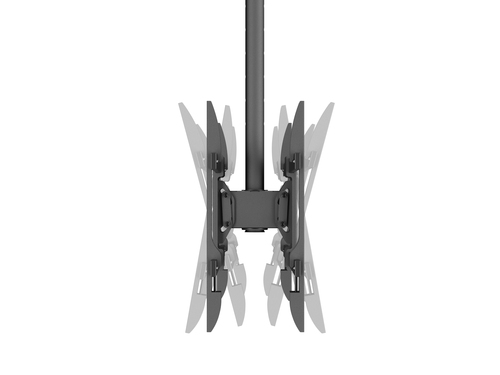

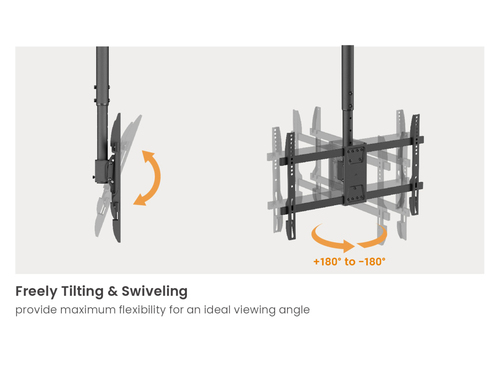

Tilt adjustment	Yes
Tilt angle range	-20 - 5°
Swivelling	Yes
Swivel angle range	-180 - 180°
Cable management	Yes
Distance to the wall (max)	169 cm
Distance to the wall (min)	109 cm
Suitable for curved screen	Yes

Design

Specification	Value
Product colour	Black
Housing material	Stainless steel
Anti-theft function	Yes

Packaging content

Specification	Value
Screws included	Yes
Manual	Yes

Technical details

Specification	Value
Compliance certificates	REACH, RoHS
Country of origin	China

Weight & dimensions

Specification	Value
Width	689 mm
Depth	154 mm
Height	1905 mm
Weight	8.2 kg

Packaging data

Specification	Value
Package width	937 mm
Package depth	254 mm
Package height	168 mm
Package weight	9.3 kg

Logistics data

Specification	Value
Master (outer) case width	937 mm
Master (outer) case length	254 mm
Master (outer) case height	168 mm
Master (outer) case gross weight	9.3 kg
Products per master (outer) case	1 pc(s)
Customs product code (TARIC)	8529909700
