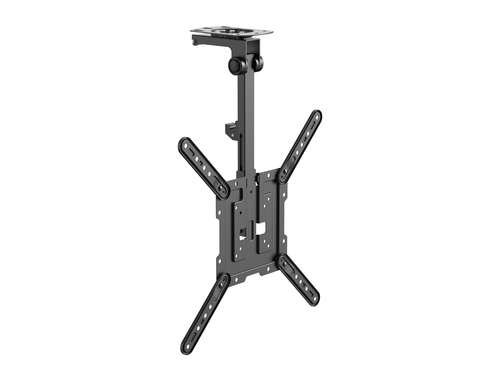

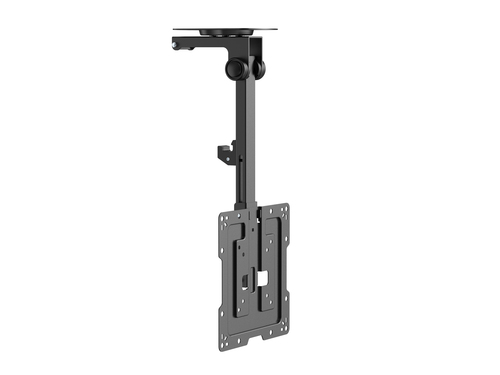

Equip 23"-55" Ceiling Mount TV Bracket

23"-55" Ceiling Mount TV Bracket

Model 650375EAN 4015867236116

38 specifications

Weight2.11 kg
ColourBlack
Number of displays supported1
Height adjustmentYes
Compliance certificatesREACH, RoHS
Width435 mm

See all specifications

Overview

Weight: 2.11 kg
Colour: Black
Number of displays supported: 1
Height adjustment: Yes
Compliance certificates: REACH, RoHS
Width: 435 mm

Brand: Equip
Category: TV Mounts & Stands
Model: 650375
Part number: 650375
EAN / UPC: 4015867236116
Also known as: Equip 23"-55" Ceiling Mount TV Bracket

Specifications

38 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity	20 kg
Minimum screen size	58.4 cm (23")
Maximum screen size	139.7 cm (55")

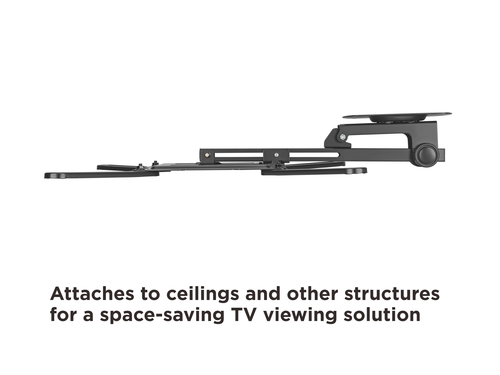

Mounting type	Ceiling
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	400 x 400 mm
Panel mounting interface	75 x 75,100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300

Ergonomics

Specification	Value

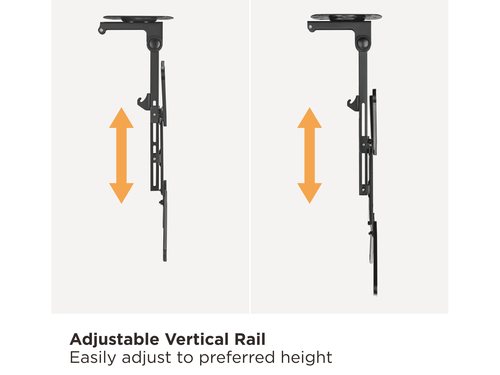

Height adjustment	Yes
Height adjustment range	520 - 614 mm
Tilt adjustment	Yes
Tilt angle range	0 - 80°

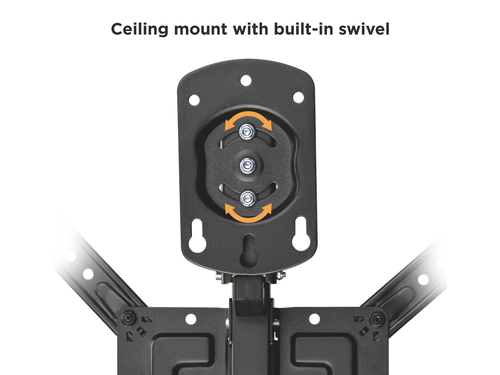

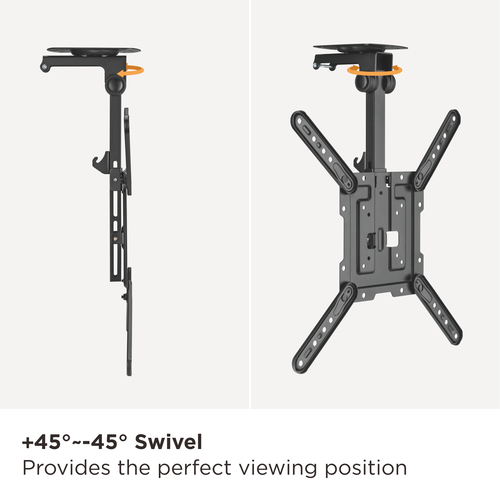

Swivelling	Yes
Swivel angle range	-45 - 45°
Cable management	No
Distance to the wall (max)	8.3 cm
Suitable for curved screen	Yes

Design

Specification	Value
Product colour	Black
Housing material	Stainless steel

Packaging content

Specification	Value
Screws included	Yes
Manual	Yes

Technical details

Specification	Value
Compliance certificates	REACH, RoHS
Country of origin	China
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Width	435 mm
Depth (max)	16.5 cm
Height	614 mm
Weight	2.11 kg

Packaging data

Specification	Value
Package width	415 mm
Package depth	225 mm
Package height	90 mm
Package weight	2.45 kg

Logistics data

Specification	Value
Master (outer) case width	470 mm
Master (outer) case length	430 mm
Master (outer) case height	382 mm
Master (outer) case gross weight	20.5 kg
Products per master (outer) case	8 pc(s)
Harmonized System (HS) code	8529908100
