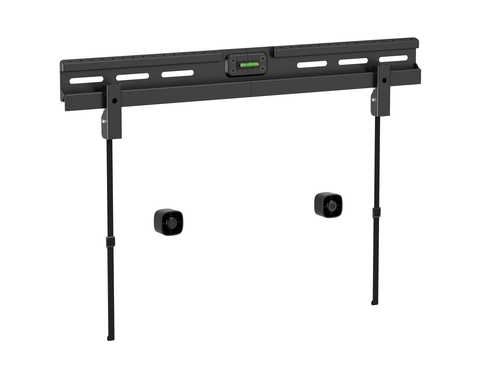

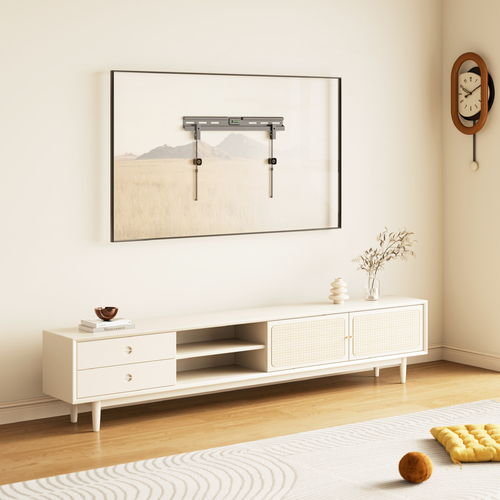

Equip 37"-86" No Drilling TV Wall Mount Bracket

37"-86" No Drilling TV Wall Mount Bracket

Model 650364EAN 4015867243886

33 specifications

Weight1.5 kg
ColourBlack
Number of displays supported1
Cable managementNo
Compliance certificatesREACH, RoHS
Width660 mm

See all specifications

Overview

Weight: 1.5 kg
Colour: Black
Number of displays supported: 1
Cable management: No
Compliance certificates: REACH, RoHS
Width: 660 mm

Brand: Equip
Category: TV Mounts & Stands
Model: 650364
Part number: 650364
EAN / UPC: 4015867243886
Also known as: Equip 37"-86" No Drilling TV Wall Mount Bracket

Specifications

33 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1

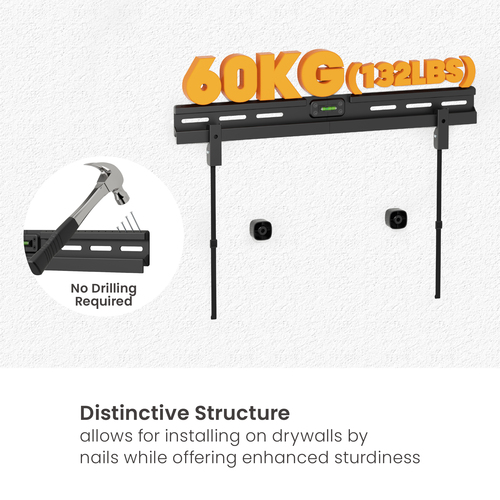

Maximum weight capacity (per display)	60 kg
Maximum weight capacity	60 kg
Minimum screen size	94 cm (37")
Maximum screen size	2.18 m (86")
Mounting type	Wall
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400

Ergonomics

Specification	Value
Cable management	No

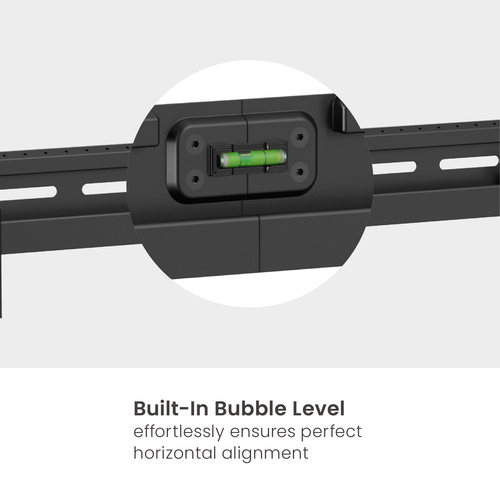

Built-in spirit level	Yes
Suitable for curved screen	No

Design

Specification	Value
Product colour	Black
Housing material	Plastic, Stainless steel
Anti-theft function	No

Packaging content

Specification	Value
Manual	Yes
Screw nuts included	Yes

Technical details

Specification	Value
Compliance certificates	REACH, RoHS
Country of origin	China

Weight & dimensions

Specification	Value
Width	660 mm

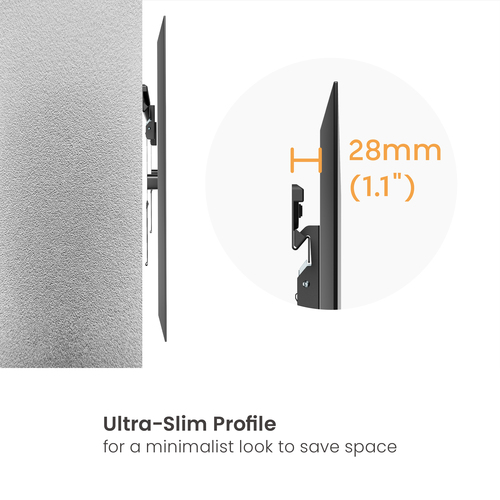

Depth (max)	2.8 cm
Height	126 mm
Weight	1.5 kg

Packaging data

Specification	Value
Package width	86 mm
Package depth	65 mm
Package height	335 mm
Package weight	1.6 kg

Logistics data

Specification	Value
Master (outer) case width	350 mm
Master (outer) case length	275 mm
Master (outer) case height	280 mm
Master (outer) case gross weight	19.7 kg
Products per master (outer) case	12 pc(s)
Customs product code (TARIC)	8529909600
