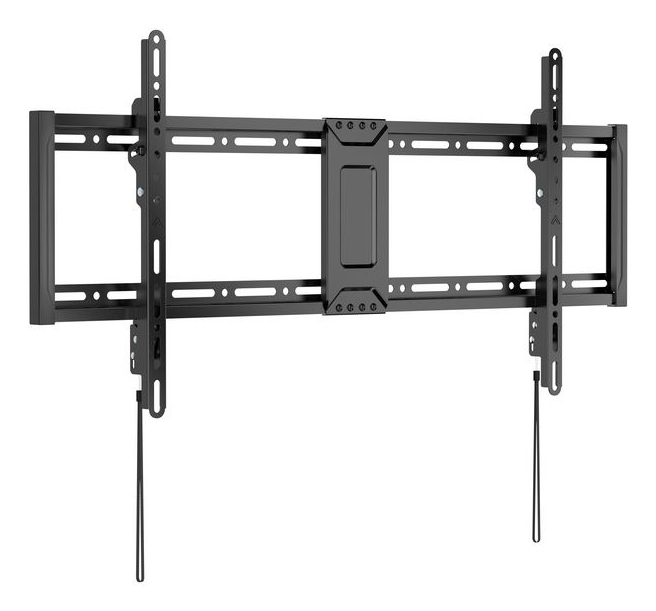

43"-95" Tilt Slim TV Wall Mount Bracket
Model 650361EAN 4015867240953
31 specifications
- Weight2.45 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Compliance certificatesCE, RoHS
- Width886 mm
Overview
- Weight
- 2.45 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Compliance certificates
- CE, RoHS
- Width
- 886 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650361
- Part number
- 650361
- EAN / UPC
- 4015867240953
- Also known as
- Equip 43"-95" Tilt Slim TV Wall Mount Bracket
Specifications
31 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |

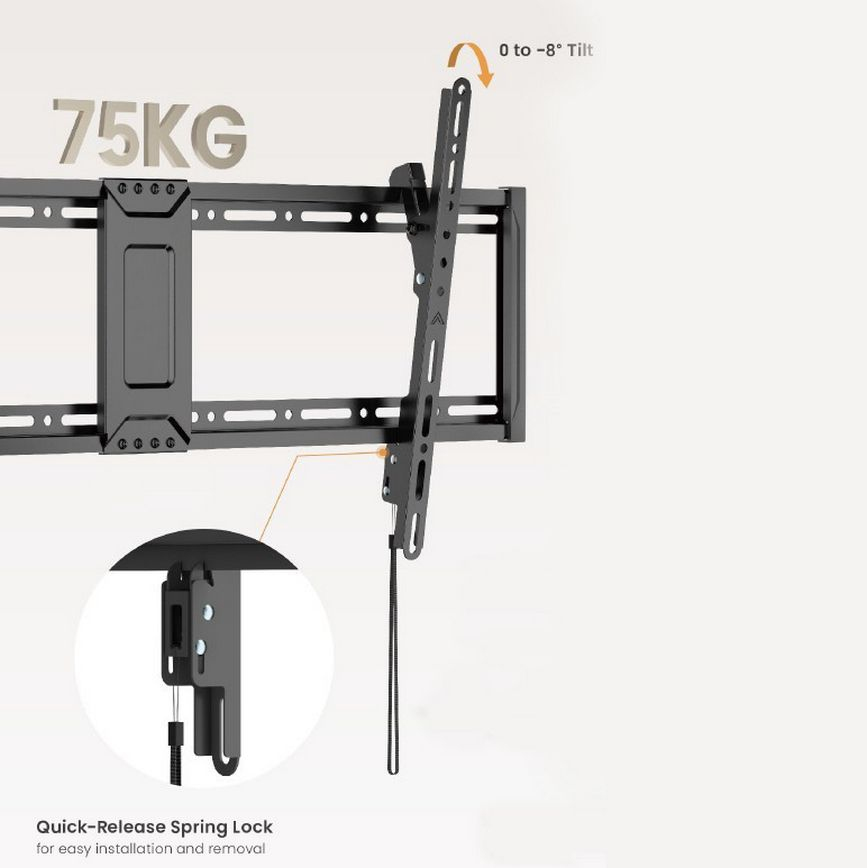

| Maximum weight capacity (per display) | 75 kg |
| Maximum weight capacity | 75 kg |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.41 m (95") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |

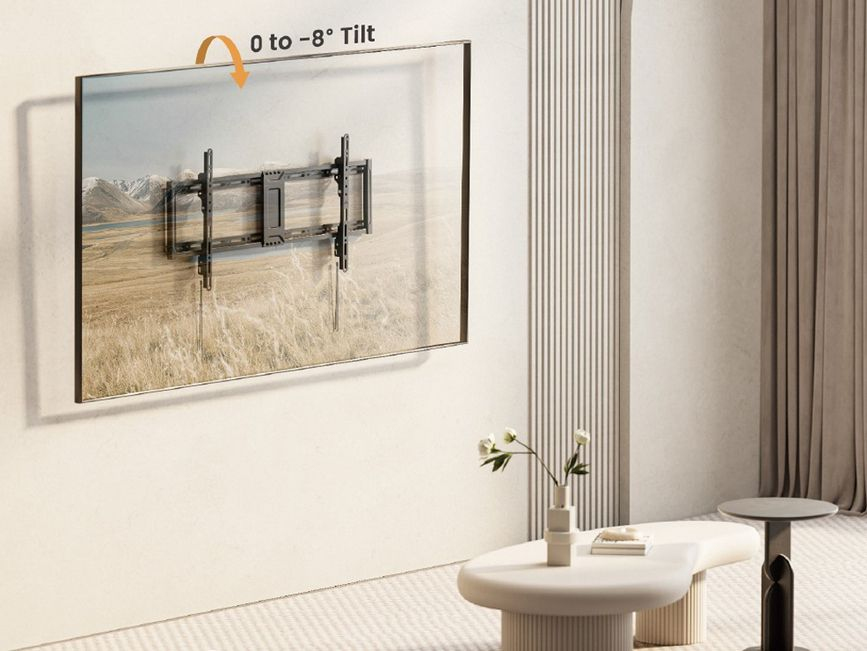

| Tilt angle range | 0 - 8° |
| Cable management | No |
| Distance to the wall (max) | 4.2 cm |
| Suitable for curved screen | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Stainless steel |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 886 mm |
| Depth (max) | 4.2 cm |
| Height | 426 mm |
| Weight | 2.45 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 230 mm |
| Package depth | 48 mm |
| Package height | 445 mm |
| Package weight | 2.85 kg |
| Package type | Box |
