43"-95" Fixed Slim TV Wall Mount Bracket
Model 650360EAN 4015867240946
27 specifications
- Weight2.2 kg
- ColourBlack
- Number of displays supported1
- Cable managementYes
- Compliance certificatesRoHS, CE
- Width886 mm
Overview
- Weight
- 2.2 kg
- Colour
- Black
- Number of displays supported
- 1
- Cable management
- Yes
- Compliance certificates
- RoHS, CE
- Width
- 886 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650360
- Part number
- 650360
- EAN / UPC
- 4015867240946
- Also known as
- Equip 43"-95" Fixed Slim TV Wall Mount Bracket
Specifications
27 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 75 kg |
| Maximum weight capacity | 75 kg |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.41 m (95") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Cable management | Yes |

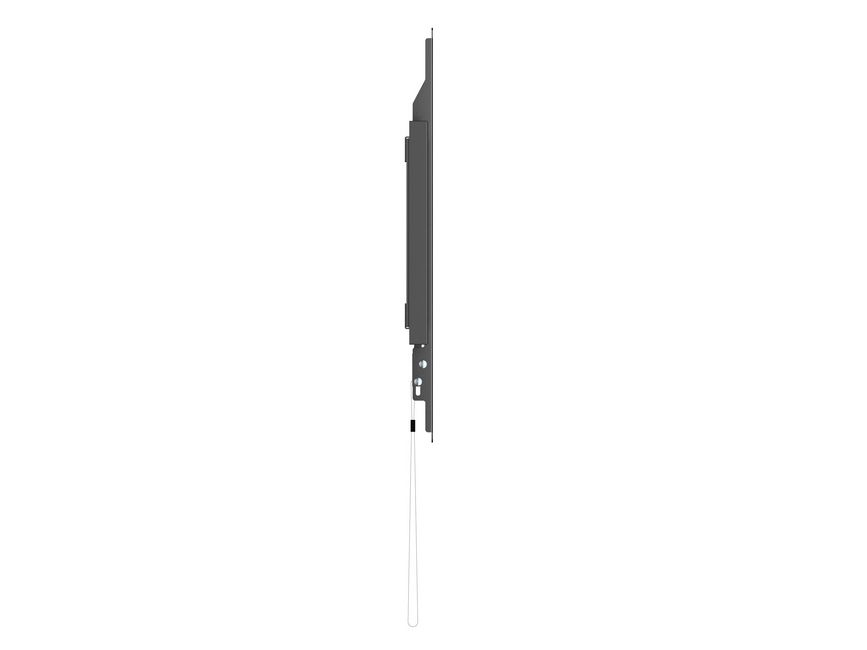

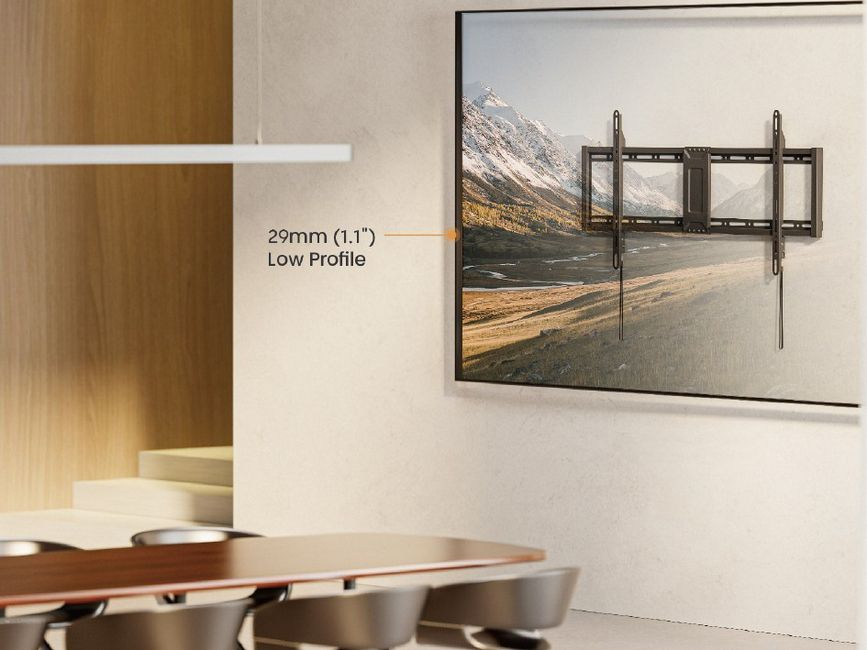

| Distance to the wall (max) | 2.9 cm |
| Suitable for curved screen | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Stainless steel |
| Anti-theft function | No |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 886 mm |
| Depth (max) | 2.9 cm |
| Height | 426 mm |
| Weight | 2.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 230 mm |
| Package depth | 48 mm |
| Package height | 445 mm |
| Package weight | 2.6 kg |
| Package type | Box |
