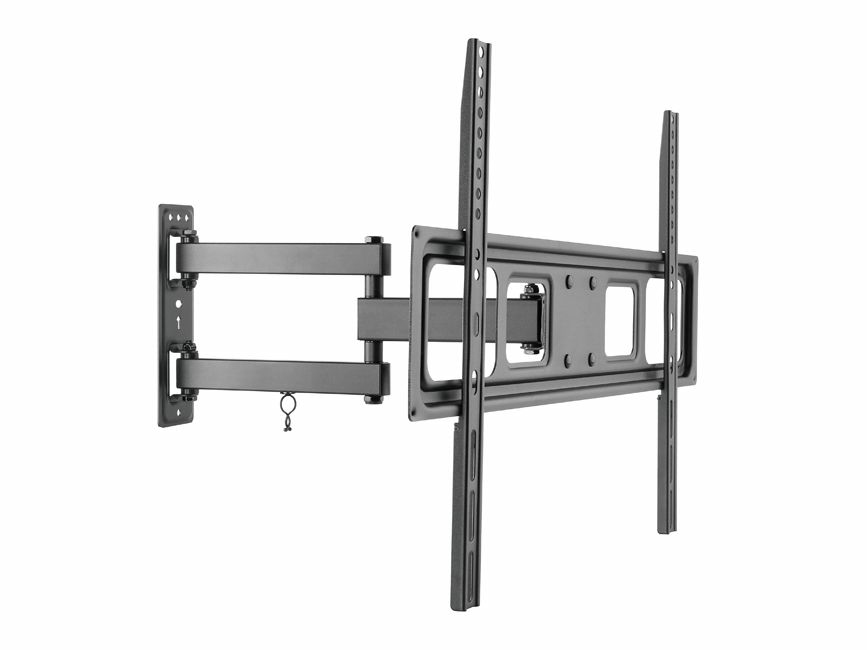

37"-70" Articulating TV Wall Bracket
Model 650342EAN 4015867225455
35 specifications
- Weight3.12 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Country of originChina
- Width655 mm
Overview
- Weight
- 3.12 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- China
- Width
- 655 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650342
- Part number
- 650342
- EAN / UPC
- 4015867225455
- Also known as
- Equip 37"-70" Articulating TV Wall Bracket
Specifications
35 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |

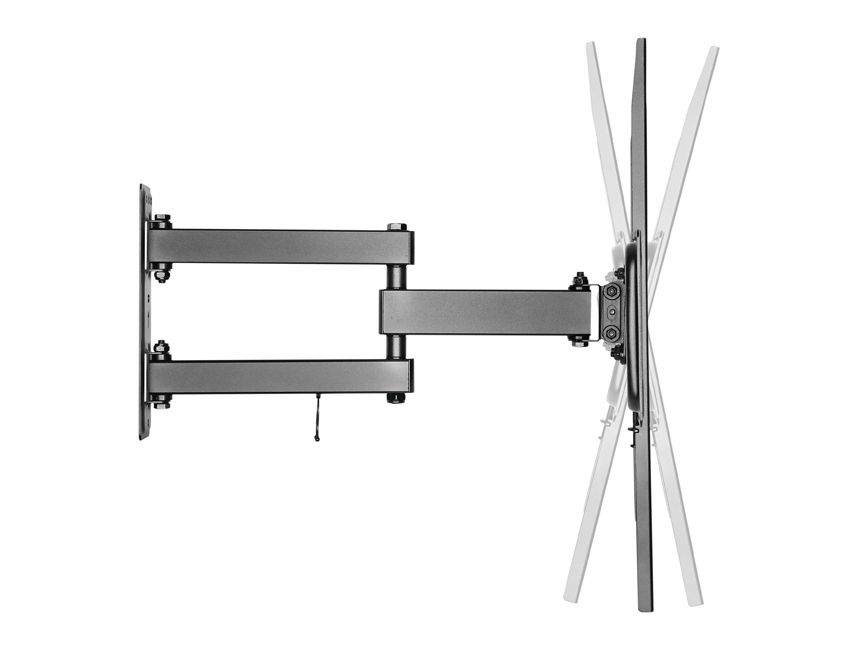

| Tilt angle range | -15 - 10° |
| Pan range | -90 - 90° |

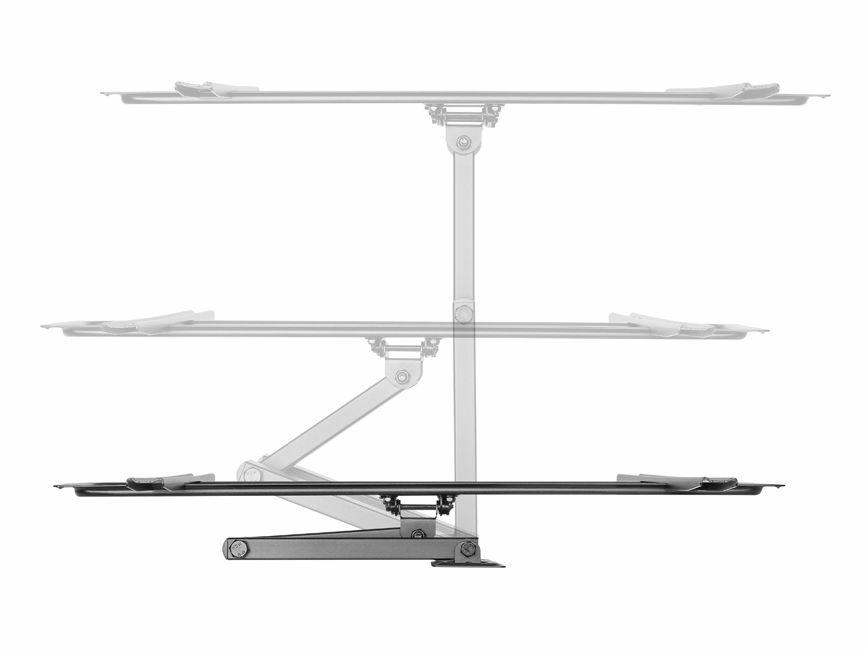

| Distance to the wall (max) | 42.7 cm |
| Distance to the wall (min) | 6.3 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Stainless steel |
| Certification | ROHS |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 655 mm |
| Depth (max) | 42 cm |
| Height | 427 mm |
| Weight | 3.12 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 231 mm |
| Package depth | 68 mm |
| Package height | 677 mm |
| Package weight | 3.54 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 430 mm |
| Master (outer) case length | 245 mm |
| Master (outer) case height | 690 mm |
| Master (outer) case gross weight | 22 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85299097 |
