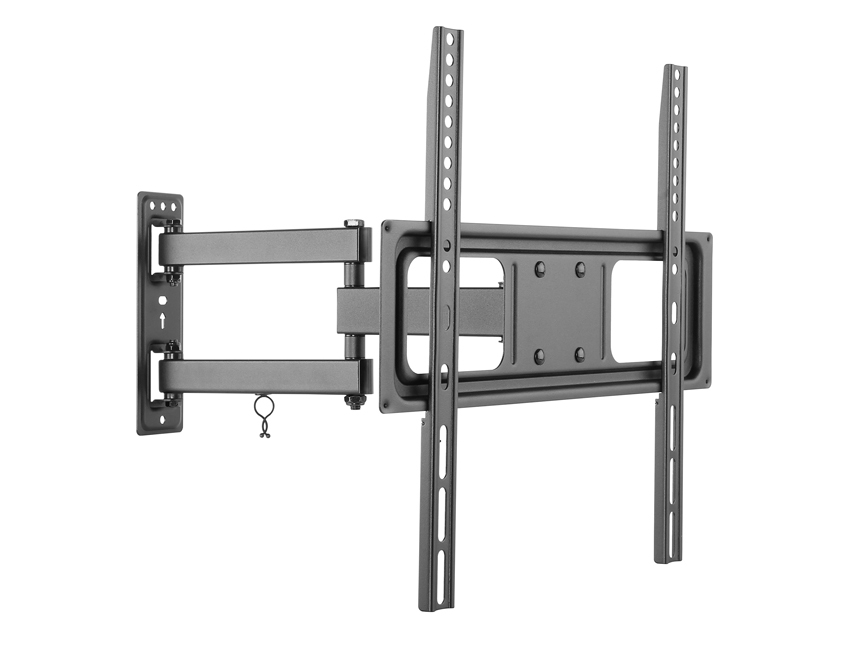

650341 32"-55" Articulating TV Wall Bracket
Model 650341EAN 4015867225448
29 specifications
- Weight2.79 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Country of originChina
- Width455 mm
Overview
- Weight
- 2.79 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- China
- Width
- 455 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650341
- Part number
- 650341
- EAN / UPC
- 4015867225448
- Also known as
- Equip 650341 32"-55" Articulating TV Wall Bracket
Specifications
29 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |

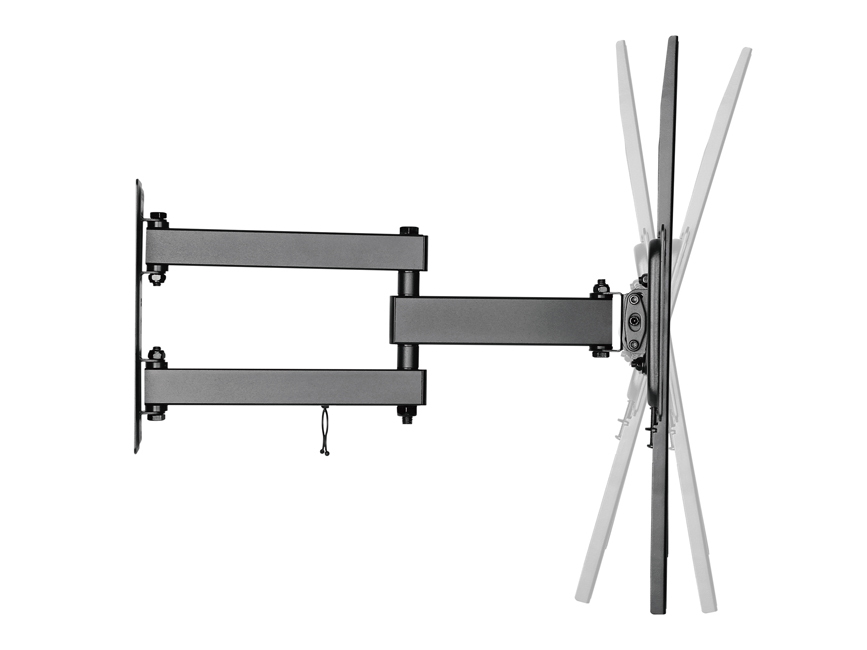

| Tilt angle range | -15 - 10° |
| Pan range | -90 - 90° |
| Distance to the wall (max) | 42.7 cm |
| Distance to the wall (min) | 6.3 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Stainless steel |
| Certification | ROHS |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 455 mm |
| Depth (max) | 42 cm |
| Height | 427 mm |
| Weight | 2.79 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 231 mm |
| Package depth | 68 mm |
| Package height | 477 mm |
| Package weight | 3.07 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
