Equip 60"-120" Heavy-Duty Fixed TV Mount Bracket

60"-120" Heavy-Duty Fixed TV Mount Bracket

Model 650338EAN 4015867230923

30 specifications

Weight3.16 kg
ColourBlack
Number of displays supported1
Cable managementNo
Compliance certificatesREACH, RoHS
Width1005 mm

See all specifications

Overview

Weight: 3.16 kg
Colour: Black
Number of displays supported: 1
Cable management: No
Compliance certificates: REACH, RoHS
Width: 1005 mm

Brand: Equip
Category: TV Mounts & Stands
Model: 650338
Part number: 650338
EAN / UPC: 4015867230923
Also known as: Equip 60"-120" Heavy-Duty Fixed TV Mount Bracket

Specifications

30 specifications in 8 groups

Mounting

Specification	Value
Number of displays supported	1
Maximum weight capacity	120 kg
Minimum screen size	152.4 cm (60")
Maximum screen size	3.05 m (120")
Mounting type	Wall
Minimum VESA mount	50 x 500 mm
Maximum VESA mount	900 x 600 mm
Panel mounting interface	50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 400,600 x 600,600 x 300,700 x 400,800 x 400,800 x 500,800 x 600,900 x 600

Ergonomics

Specification	Value
Cable management	No
Distance to the wall (min)	3.5 cm

Design

Specification	Value
Product colour	Black
Housing material	Stainless steel

Packaging content

Specification	Value
Screws included	Yes

Technical details

Specification	Value
Compliance certificates	REACH, RoHS
Country of origin	China
Sustainability compliance	Yes

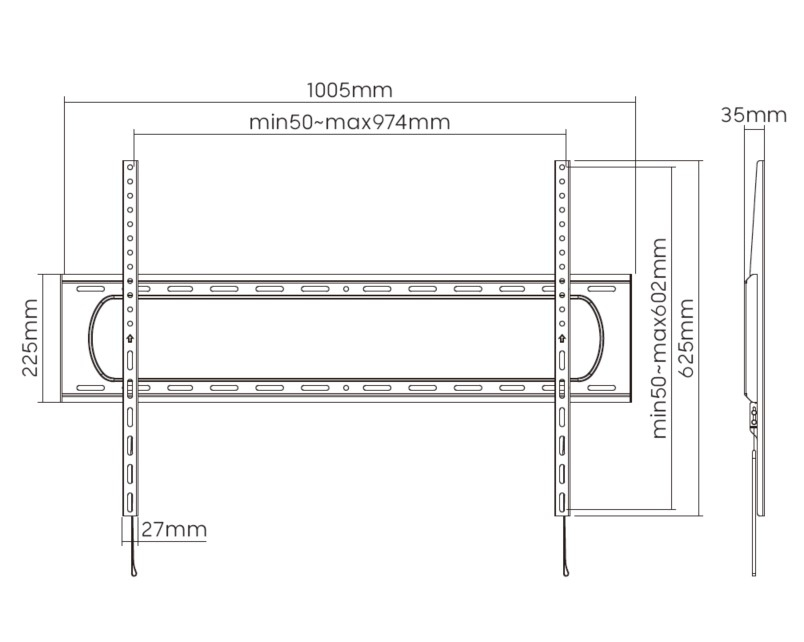

Weight & dimensions

Specification	Value
Width	1005 mm
Depth (max)	3.5 cm
Height	625 mm
Weight	3.16 kg

Packaging data

Specification	Value
Package width	232 mm
Package depth	46 mm
Package height	1030 mm
Package weight	3.72 kg
Package type	Box

Logistics data

Specification	Value
Master (outer) case width	250 mm
Master (outer) case length	205 mm
Master (outer) case height	1045 mm
Master (outer) case gross weight	15.8 kg
Products per master (outer) case	4 pc(s)
