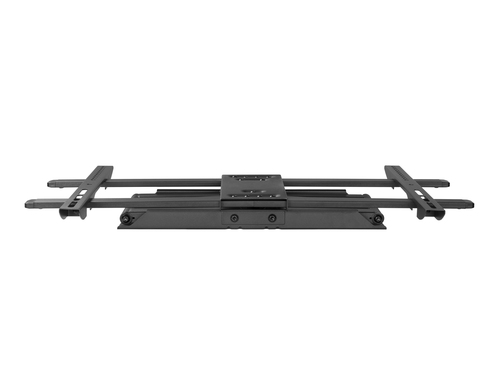

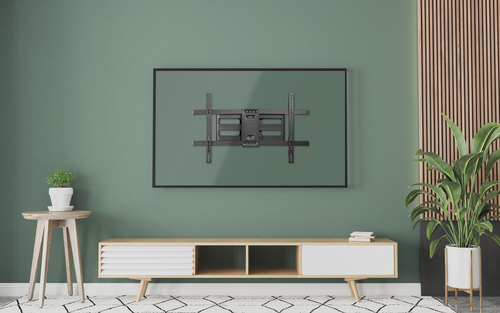

37"-80" Full Motion TV Wall Mount Bracket
Model 650335EAN 4015867227183
31 specifications
- Weight5.2 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Country of originChina
- Width710 mm
Overview
- Weight
- 5.2 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- China
- Width
- 710 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650335
- Part number
- 650335
- EAN / UPC
- 4015867227183
- Also known as
- Equip 37"-80" Full Motion TV Wall Mount Bracket
Specifications
31 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 60 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 2.03 m (80") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |

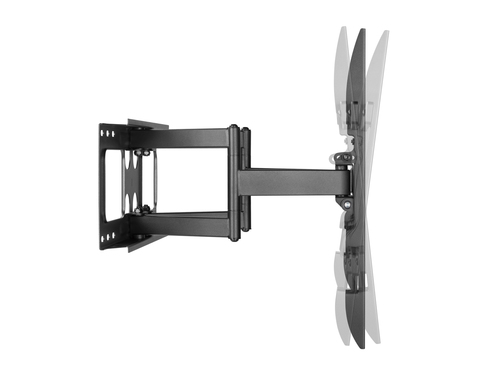

| Tilt angle range | -15 - 5° |

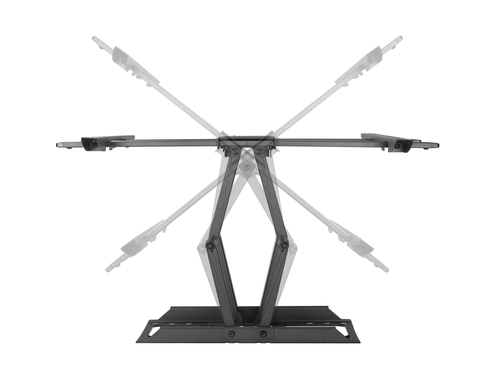

| Pan range | -60 - 60° |

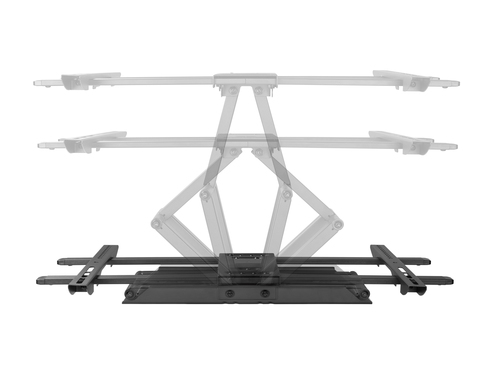

| Distance to the wall (max) | 40.2 cm |
| Distance to the wall (min) | 5.8 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic, Stainless steel |
| Anti-theft function | No |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Screw nuts included | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 710 mm |
| Depth (max) | 43 cm |
| Height | 402 mm |
| Weight | 5.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 436 mm |
| Package depth | 65 mm |
| Package height | 298 mm |
| Package weight | 5.66 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
