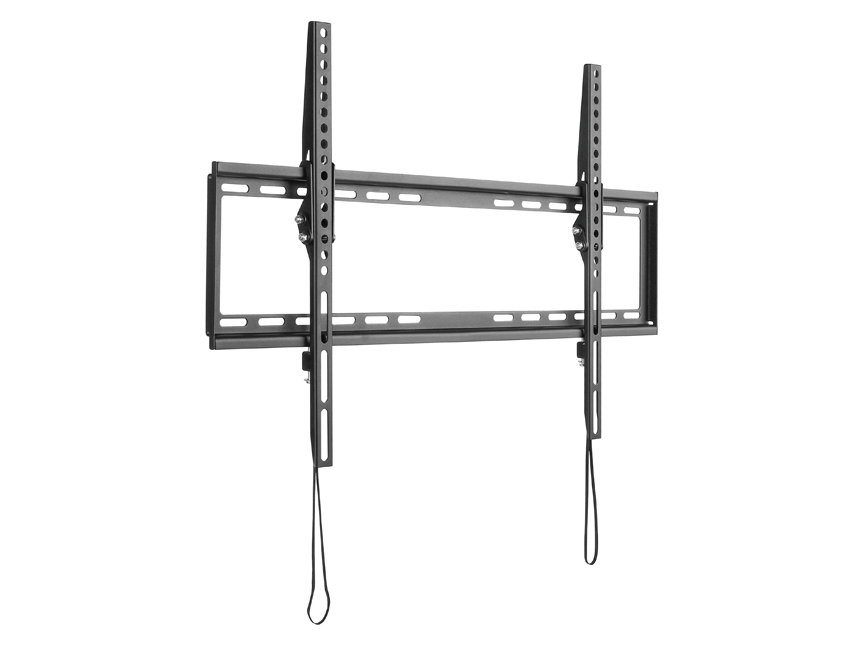

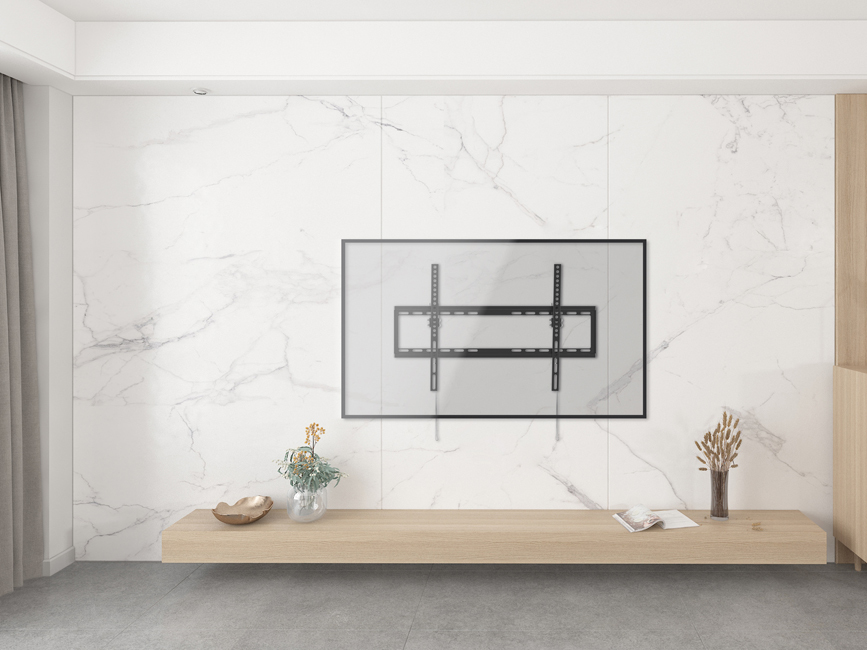

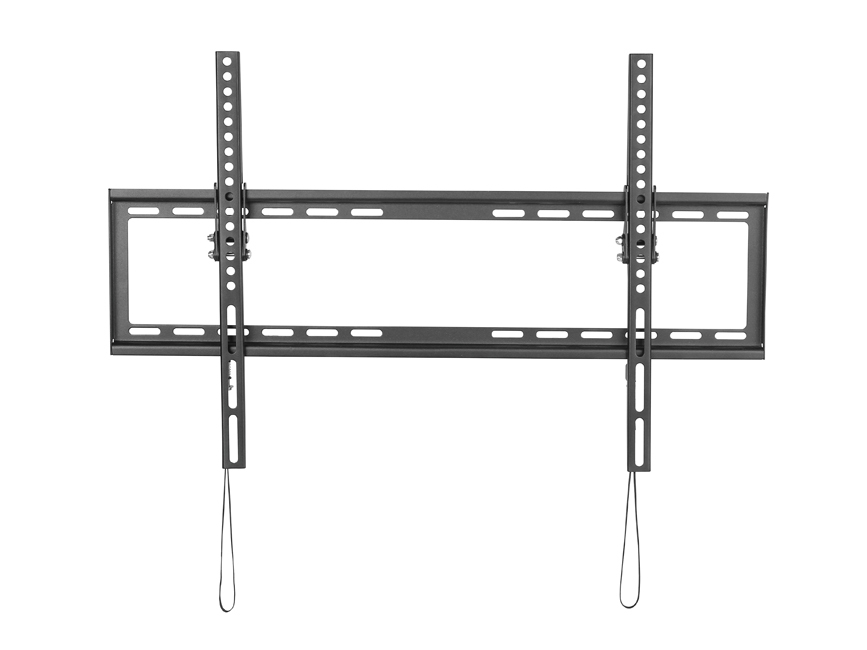

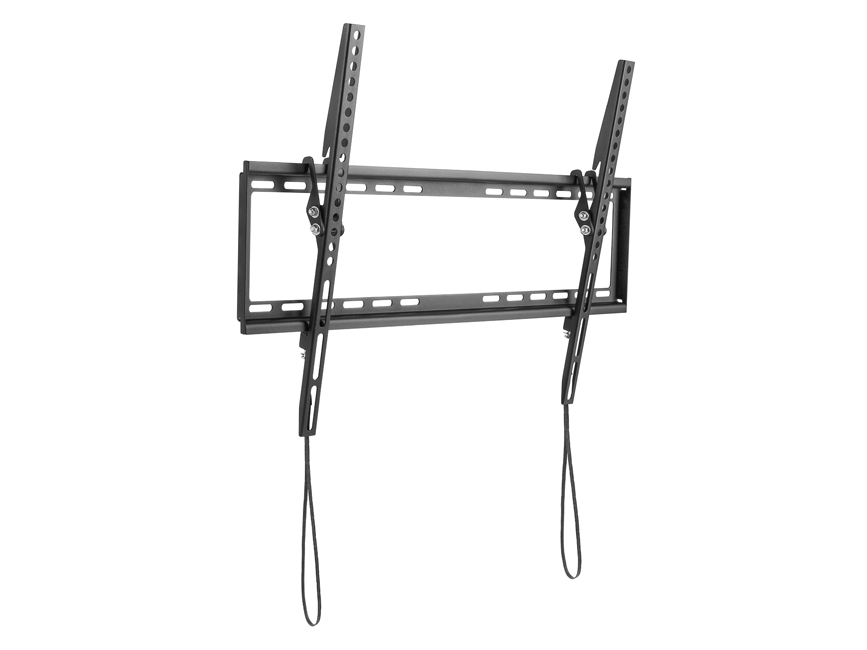

650334 37"-75" Low Profile TV Wall Mount Bracket
Model 650334EAN 4015867225431
27 specifications
- Weight1.35 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Country of originChina
- Width665 mm
Overview
- Weight
- 1.35 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- China
- Width
- 665 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650334
- Part number
- 650334
- EAN / UPC
- 4015867225431
- Also known as
- Equip 650334 37"-75" Low Profile TV Wall Mount Bracket
Specifications
27 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 35 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |

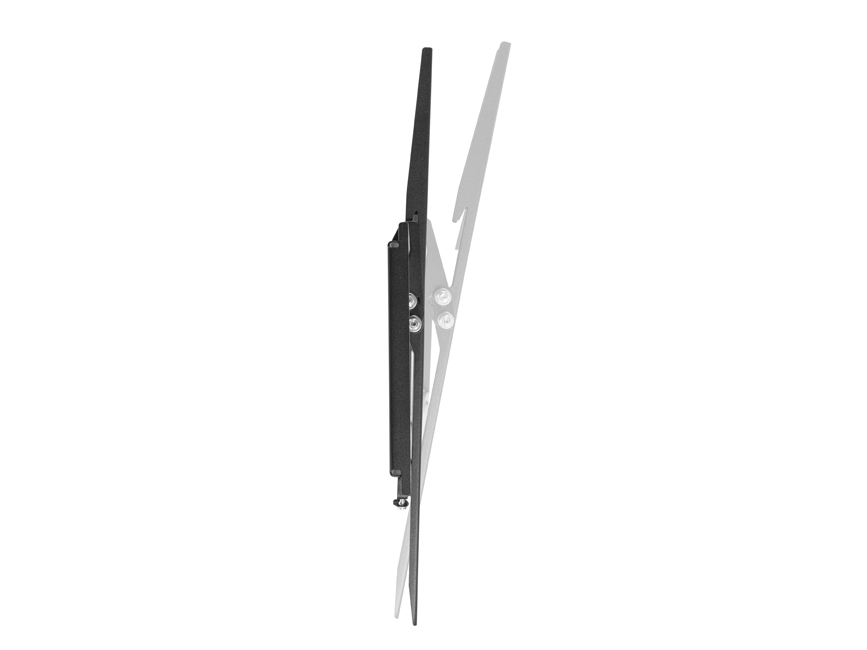

| Tilt angle range | -8 - 0° |
| Distance to the wall (max) | 2.05 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic, Stainless steel |
| Certification | ROHS |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 665 mm |
| Depth (max) | 2.05 cm |
| Height | 422 mm |
| Weight | 1.35 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 25 mm |
| Package depth | 670 mm |
| Package height | 175 mm |
| Package weight | 1.42 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
