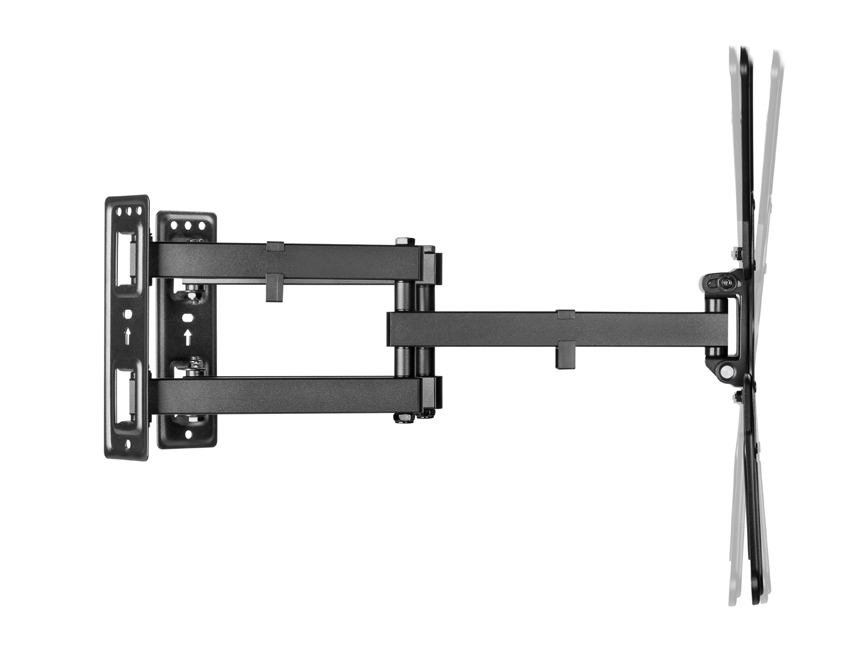

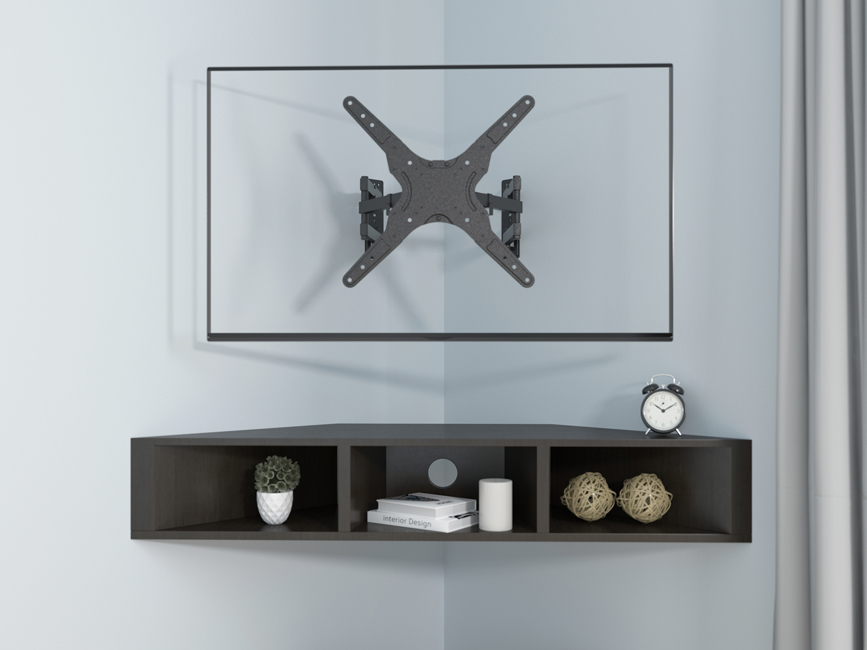

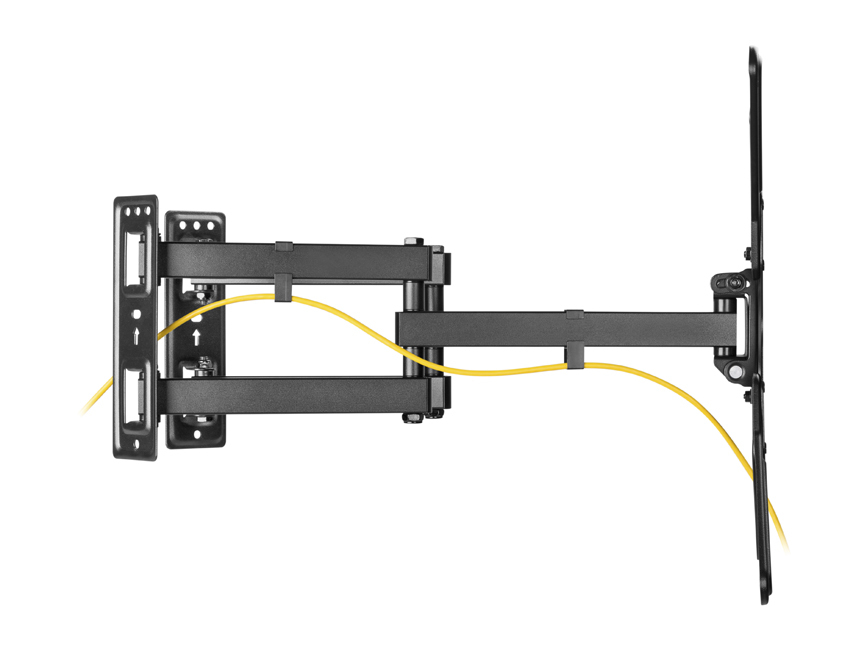

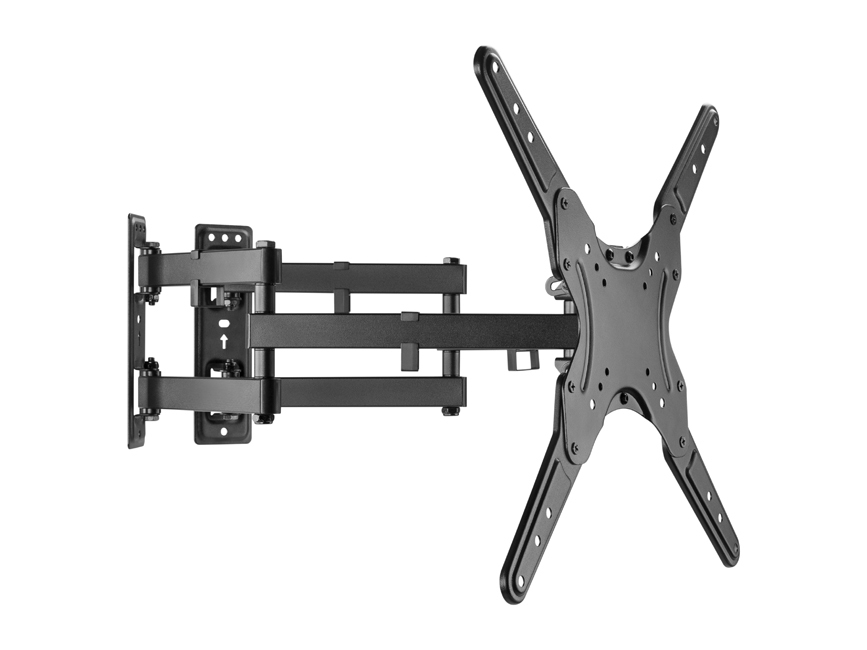

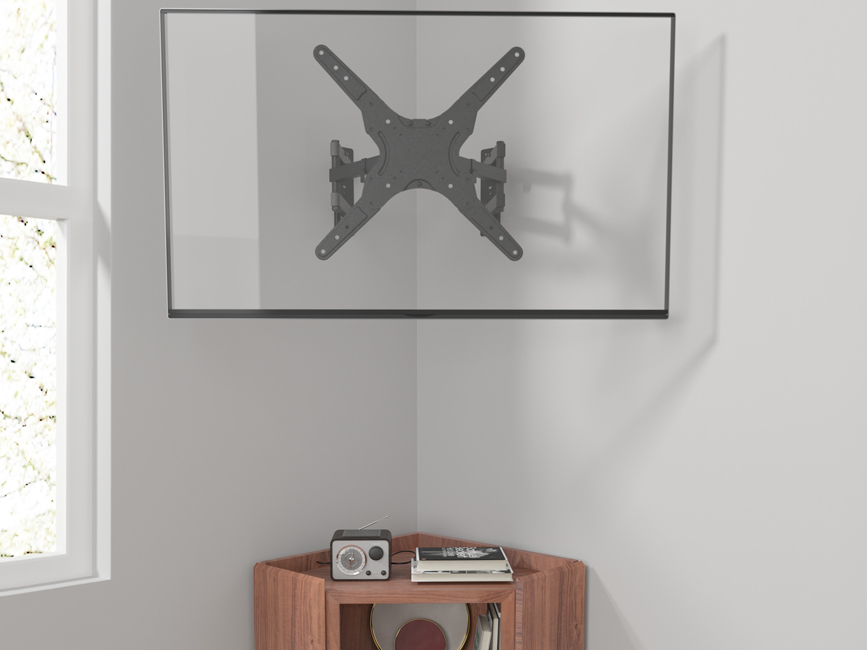

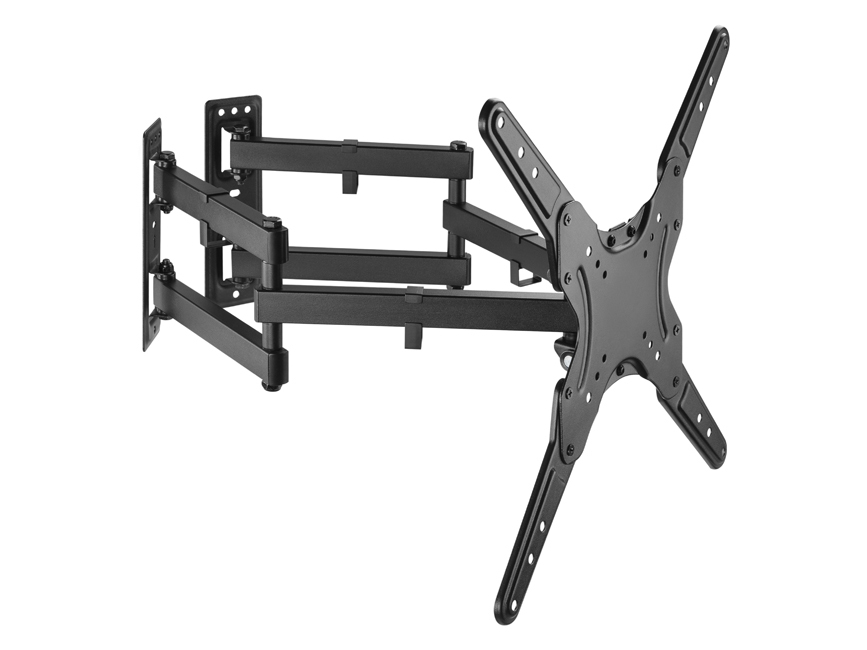

650328 23"-55" Full motion Corner TV Wall Mount Bracket
Model 650328EAN 4015867225752
27 specifications
- Weight4.36 kg
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Country of originChina
- Width435 mm
Overview
- Weight
- 4.36 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Country of origin
- China
- Width
- 435 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650328
- Part number
- 650328
- EAN / UPC
- 4015867225752
- Also known as
- Equip 650328 23"-55" Full motion Corner TV Wall Mount Bracket
Specifications
27 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 45 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300 |
Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 2° |
| Pan range | -45 - 45° |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic, Stainless steel |
| Certification | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth (max) | 52.8 cm |
| Height | 435 mm |
| Weight | 4.36 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package width | 152 mm |
| Package depth | 320 mm |
| Package height | 240 mm |
| Package weight | 4.72 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
