60"-100" Tilt Curved TV Wall Mount Bracket
Model 650322EAN 4015867205150
29 specifications
- Weight8.19 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-15 - 15°
- Country of originChina
- Width1140 mm
Overview
- Weight
- 8.19 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -15 - 15°
- Country of origin
- China
- Width
- 1140 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650322
- Part number
- 650322
- EAN / UPC
- 4015867205150
- Also known as
- Equip 60"-100" Tilt Curved TV Wall Mount Bracket
Specifications
29 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 100 kg |
| Minimum screen size | 152.4 cm (60") |
| Maximum screen size | 2.54 m (100") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 1098 x 807 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400,800 x 600,1000 x 400,1000 x 600,1000 x 800 |
Ergonomics
| Specification | Value |
|---|---|

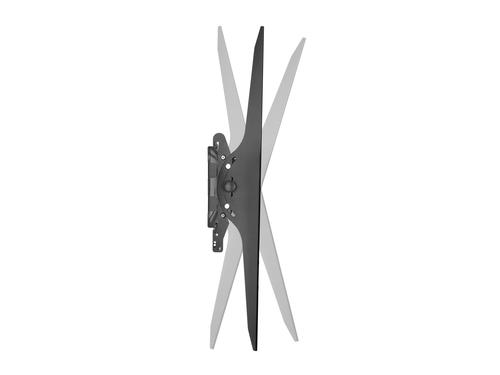

| Tilt angle range | -15 - 15° |
| Distance to the wall (max) | 13 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Country of origin | China |

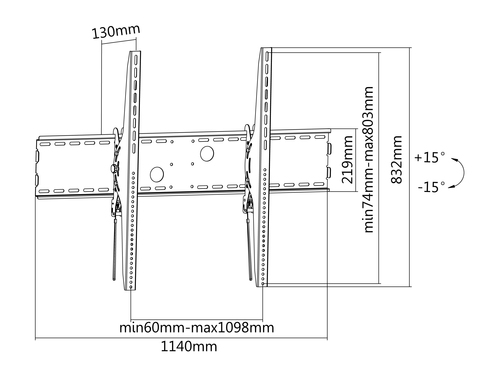

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1140 mm |
| Depth | 130 mm |
| Height | 832 mm |
| Weight | 8.19 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1178 mm |
| Package depth | 232 mm |
| Package height | 68 mm |
| Package weight | 9.51 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 1195 mm |
| Master (outer) case length | 155 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 19.6 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 85299097 |
