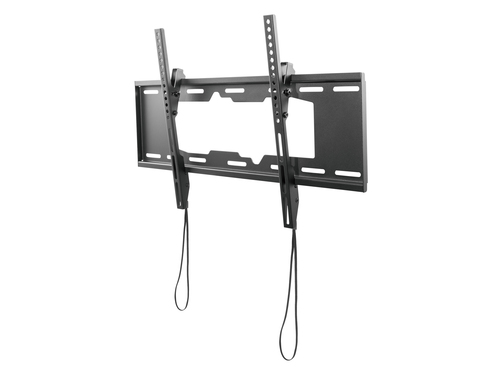

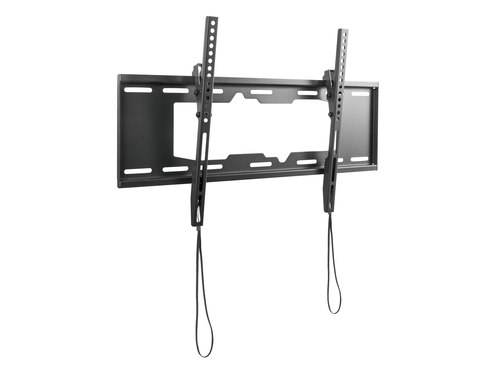

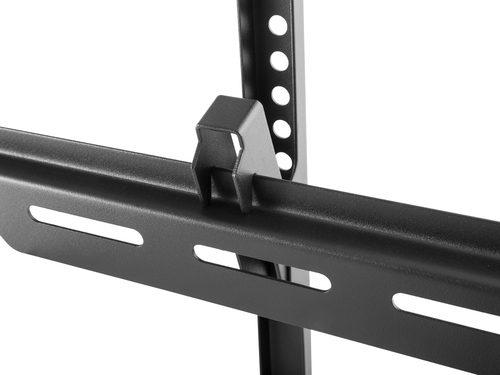

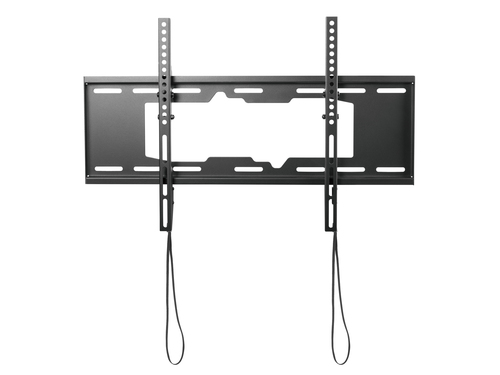

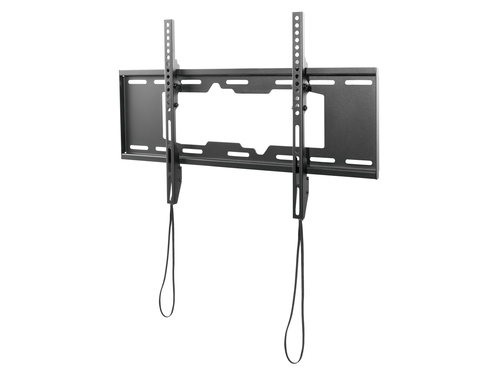

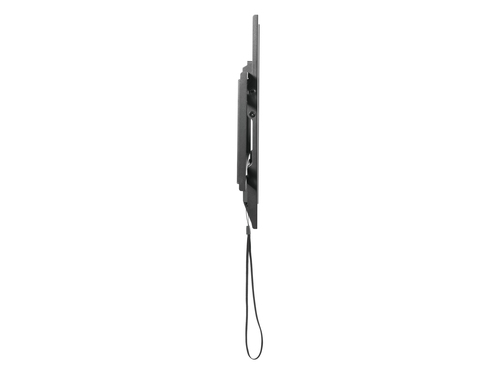

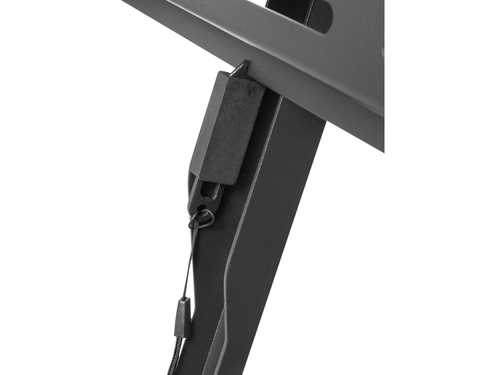

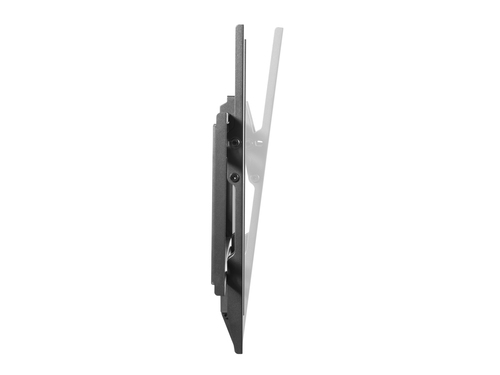

37"-70" Low Profile TV Wall Mount Bracket
Model 650318EAN 4015867204955
32 specifications
- Weight2.24 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range0 - 8°
- Compliance certificatesRoHS
- Width38 mm
Overview
- Weight
- 2.24 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- 0 - 8°
- Compliance certificates
- RoHS
- Width
- 38 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650318
- Part number
- 650318
- EAN / UPC
- 4015867204955
- Also known as
- Equip 37"-70" Low Profile TV Wall Mount Bracket
Specifications
32 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 177.8 cm (70") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|

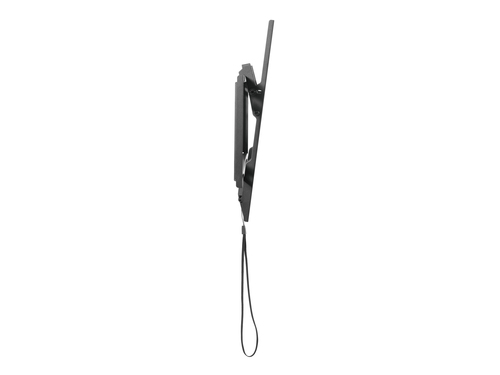

| Tilt angle range | 0 - 8° |
| Built-in spirit level | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | CE |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 38 mm |
| Depth | 674 mm |
| Height | 430 mm |
| Weight | 2.24 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 228 mm |
| Package depth | 700 mm |
| Package height | 40 mm |
| Package weight | 2.54 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 265 mm |
| Master (outer) case length | 720 mm |
| Master (outer) case height | 248 mm |
| Master (outer) case gross weight | 16.5 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85299097 |
