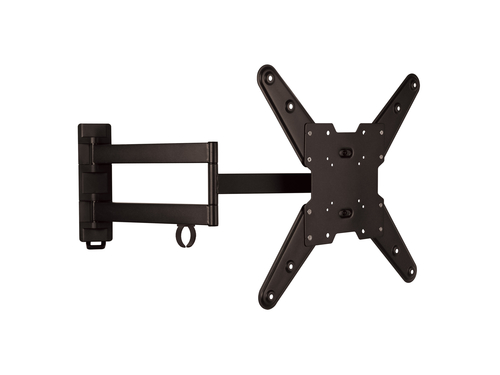

23"-55" Tilt/Swivel TV Wall Mount Bracket
Model 650105EAN 4015867187111
24 specifications
- Weight3.5 kg
- ColourBlack
- Number of displays supported1
- Tilt angle range-15 - 5°
- Width410 mm
Overview
- Weight
- 3.5 kg
- Colour
- Black
- Number of displays supported
- 1
- Tilt angle range
- -15 - 5°
- Width
- 410 mm
- Brand
- Equip
- Category
- TV Mounts & Stands
- Model
- 650105
- Part number
- 650105
- EAN / UPC
- 4015867187111
- Also known as
- Equip 23"-55" Tilt/Swivel TV Wall Mount Bracket
Specifications
24 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 58.4 cm (23") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400 |

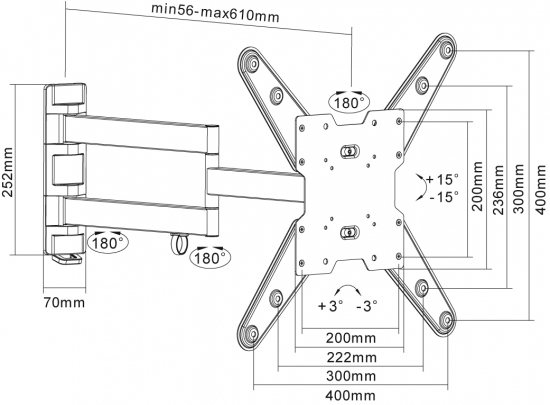

Ergonomics
| Specification | Value |
|---|---|
| Tilt angle range | -15 - 5° |
| Swivel angle | 180° |
| Distance to the wall (max) | 61 cm |
| Distance to the wall (min) | 5.6 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 410 mm |
| Depth | 610 mm |
| Height | 410 mm |
| Weight | 3.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 70 mm |
| Package height | 405 mm |
| Package weight | 3.8 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
