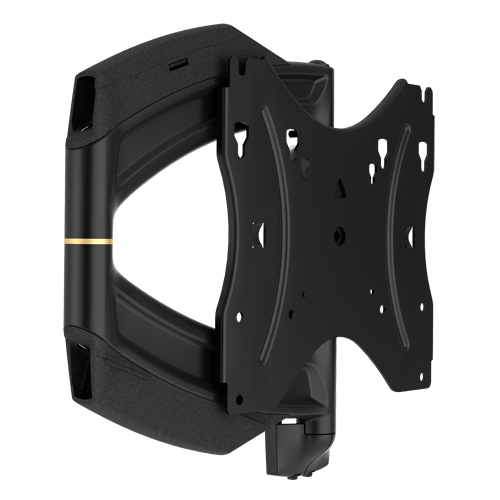

Small ThinstallTM Single Swing Arm Wall Display Mount
18 Inch Extension
Model TS118SUEAN 184206575842
30 specifications
- ColourBlack
- Number of displays supported1
- Height adjustmentYes
- Width1000 mm
Overview
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- Yes
- Width
- 1000 mm
- Brand
- Chief
- Category
- TV Mounts & Stands
- Model
- TS118SU
- Part number
- TS118SU
- EAN / UPC
- 184206575842, 623164889900, 641676220011, 841872153551
- Also known as
- Chief Small ThinstallTM Single Swing Arm Wall Display Mount - 18 Inch Extension
Specifications
30 specifications in 8 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 15.88 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 81.3 cm (32") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 75 x 75,100 x 100,200 x 200 |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | Yes |
| Tilt angle range | -12 - 0° |
| Angle of rotation | 90° |
| Number of pivot points | 3 |
| Cable management | Yes |
| Distance to the wall (max) | 45.7 cm |
| Distance to the wall (min) | 3.8 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | ULCERT |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1000 mm |
| Depth | 38.1 mm |
| Depth (max) | 45.7 cm |
| Height | 293.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.27 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
Other features
| Specification | Value |
|---|---|
| Width (imperial) | 33 cm (13") |
| Depth (imperial) | 3.81 cm (1.5") |
| Height (imperial) | 29.2 cm (11.5") |
| Screen size compatibility | 254 - 812.8 mm (10 - 32") |
| Quantity outer carton | 1 pc(s) |
