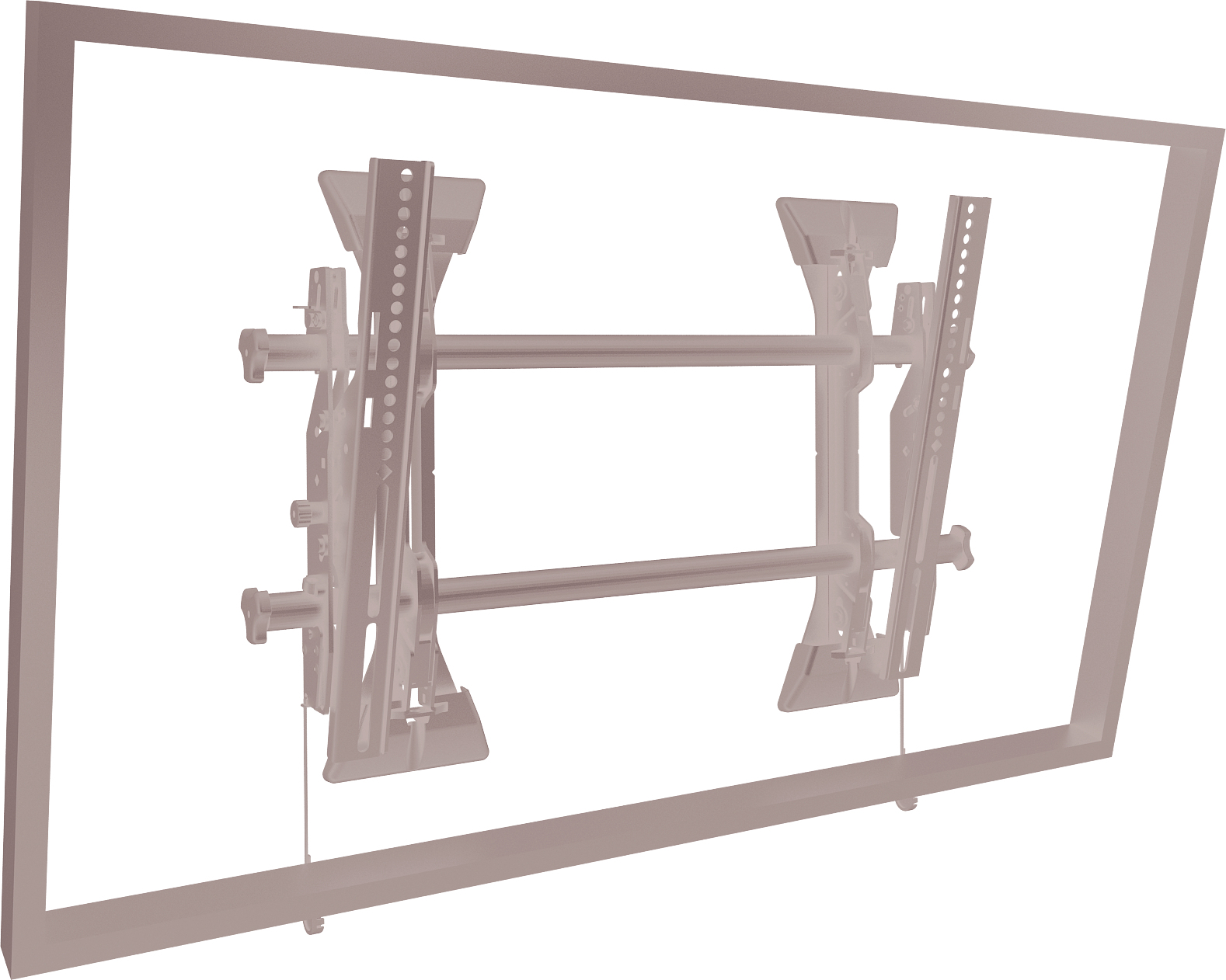

Medium Fusion® Micro-Adjustable Tilt Wall Mount
Model MTM1UEAN 841872163291
24 specifications
- Weight9.6 kg
- ColourBlack
- Number of displays supported1
- Height adjustmentYes
- Width654 mm
Overview
- Weight
- 9.6 kg
- Colour
- Black
- Number of displays supported
- 1
- Height adjustment
- Yes
- Width
- 654 mm
- Brand
- Chief
- Category
- TV Mounts & Stands
- Model
- MTM1U
- Part number
- MTM1U
- EAN / UPC
- 841872163291
- Also known as
- Chief Medium Fusion® Micro-Adjustable Tilt Wall Mount
Specifications
24 specifications in 7 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity | 56.7 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Suitable for computer monitor | Yes |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Cable management | Yes |
| Distance to the wall (max) | 5.1 cm |
| Distance to the wall (min) | 5.1 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | UL |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 654 mm |
| Depth | 50.8 mm |
| Height | 438.1 mm |
| Weight | 9.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.47 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85299097 |
