Full motion TV Wall Mount
43" up to 90", ultra slim, VESA
Model AC8357EAN 8716065587067
29 specifications
- ColourBlack
- Number of displays supported1
- Tilt adjustmentYes
- Quantity per pack1 pc(s)
- Width632 mm
Overview
- Colour
- Black
- Number of displays supported
- 1
- Tilt adjustment
- Yes
- Quantity per pack
- 1 pc(s)
- Width
- 632 mm
- Brand
- ACT
- Category
- TV Mounts & Stands
- Model
- AC8357
- Part number
- AC8357
- EAN / UPC
- 8716065587067
- Also known as
- ACT Full motion TV Wall Mount, 43" up to 90", ultra slim, VESA
Specifications
29 specifications in 6 groups
Mounting
| Specification | Value |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 50 kg |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.29 m (90") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 200,200 x 200,200 x 300,200 x 400,300 x 300,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400 |

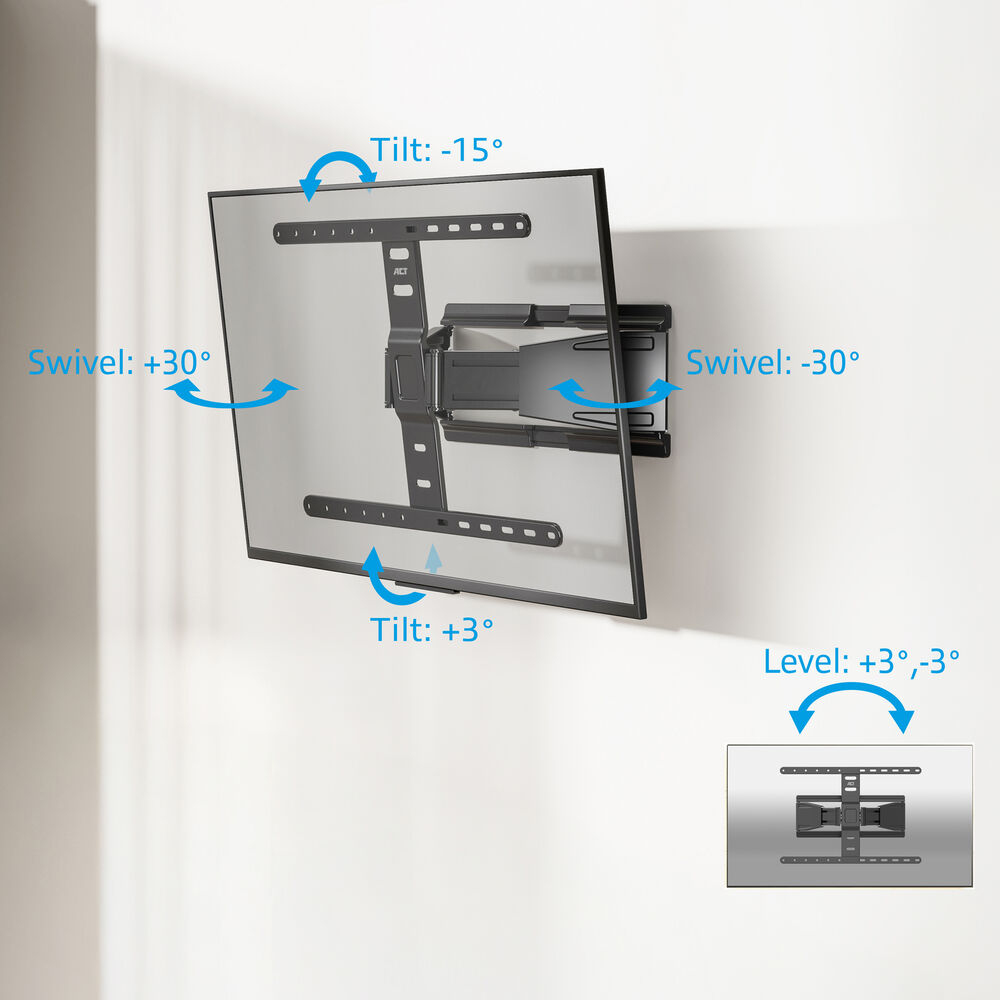

Ergonomics
| Specification | Value |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | 3 - -15° |
| Swivelling | Yes |
| Swivel angle range | 30 - -30° |
| Angle of rotation | 60° |

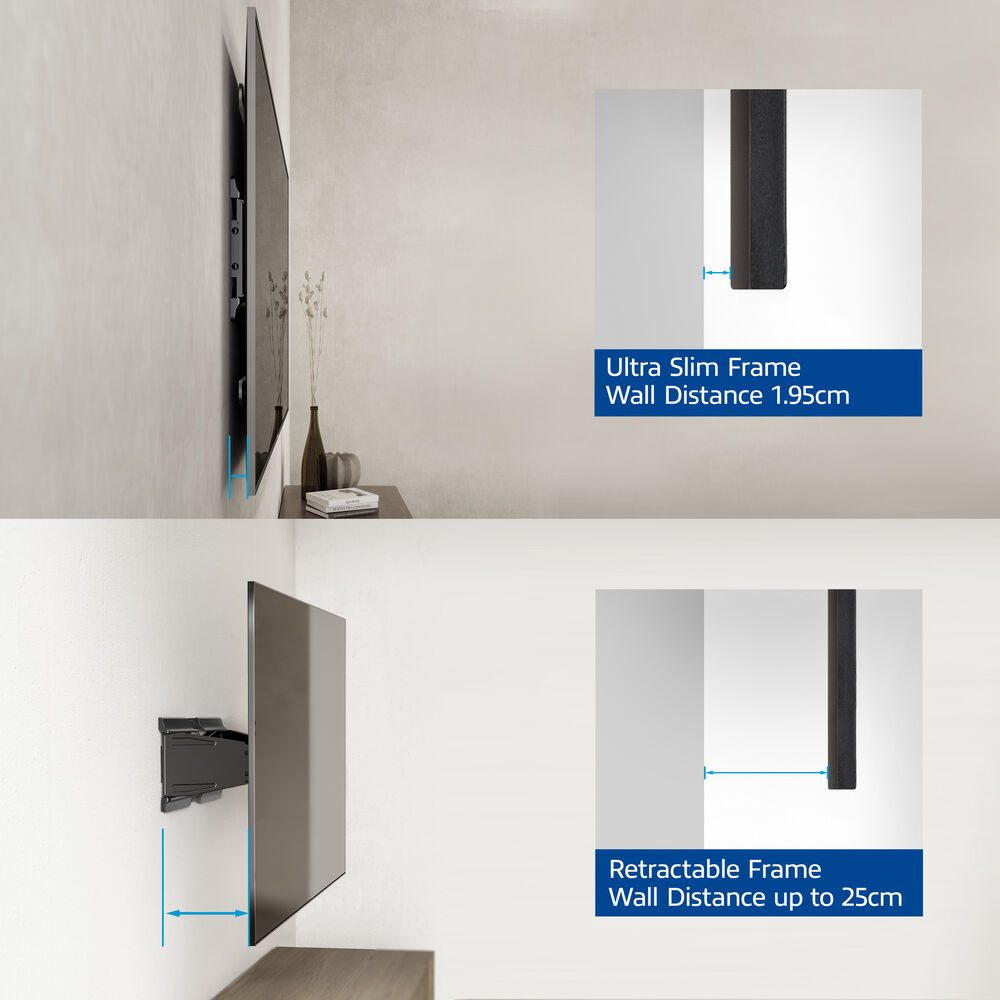

| Distance to the wall (max) | 25 cm |
| Distance to the wall (min) | 1.95 cm |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic, Steel |
Technical details
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Warranty period | 5 year(s) |

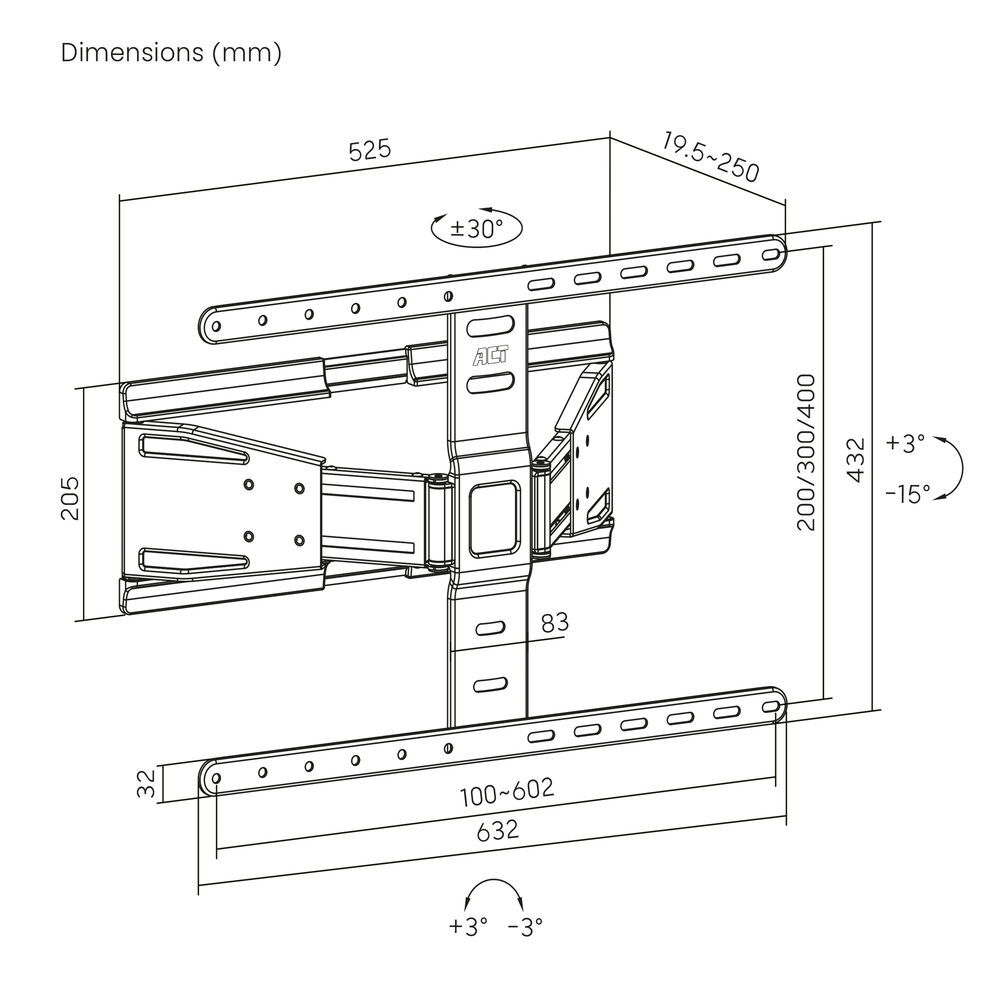

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 632 mm |
| Depth (min) | 1.95 cm |
| Depth (max) | 25 cm |
| Height | 432 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 667 mm |
| Package depth | 526 mm |
| Package height | 40 mm |
| Package weight | 6.54 kg |
| Package type | Box |
