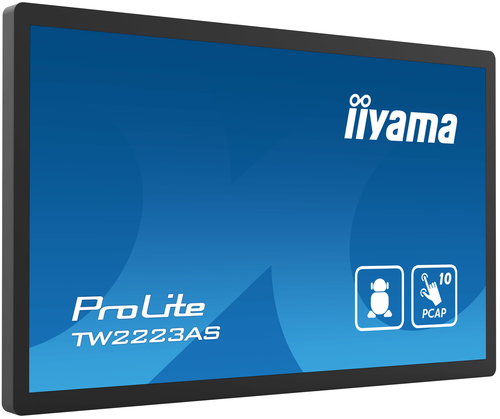

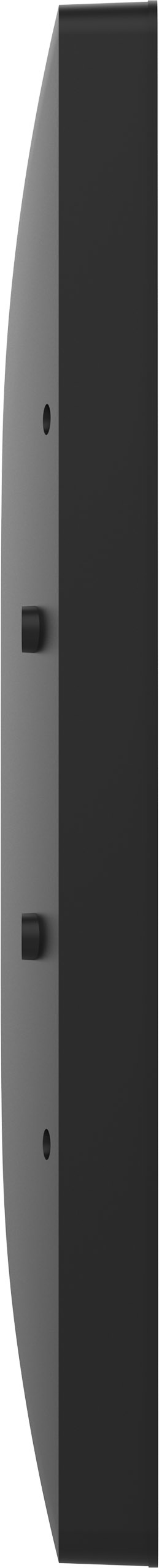

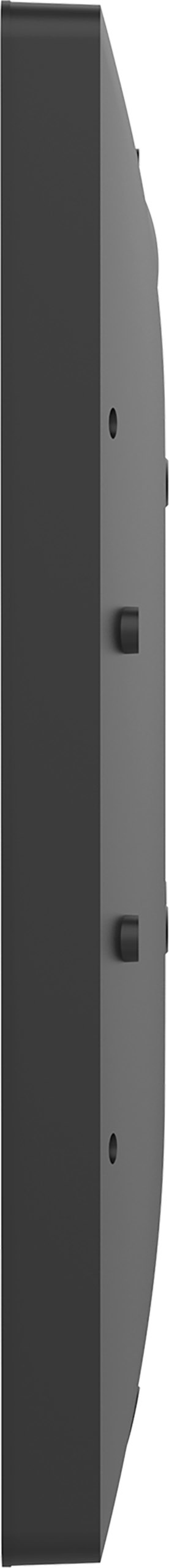

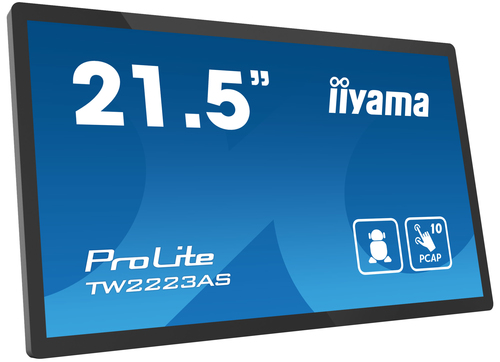

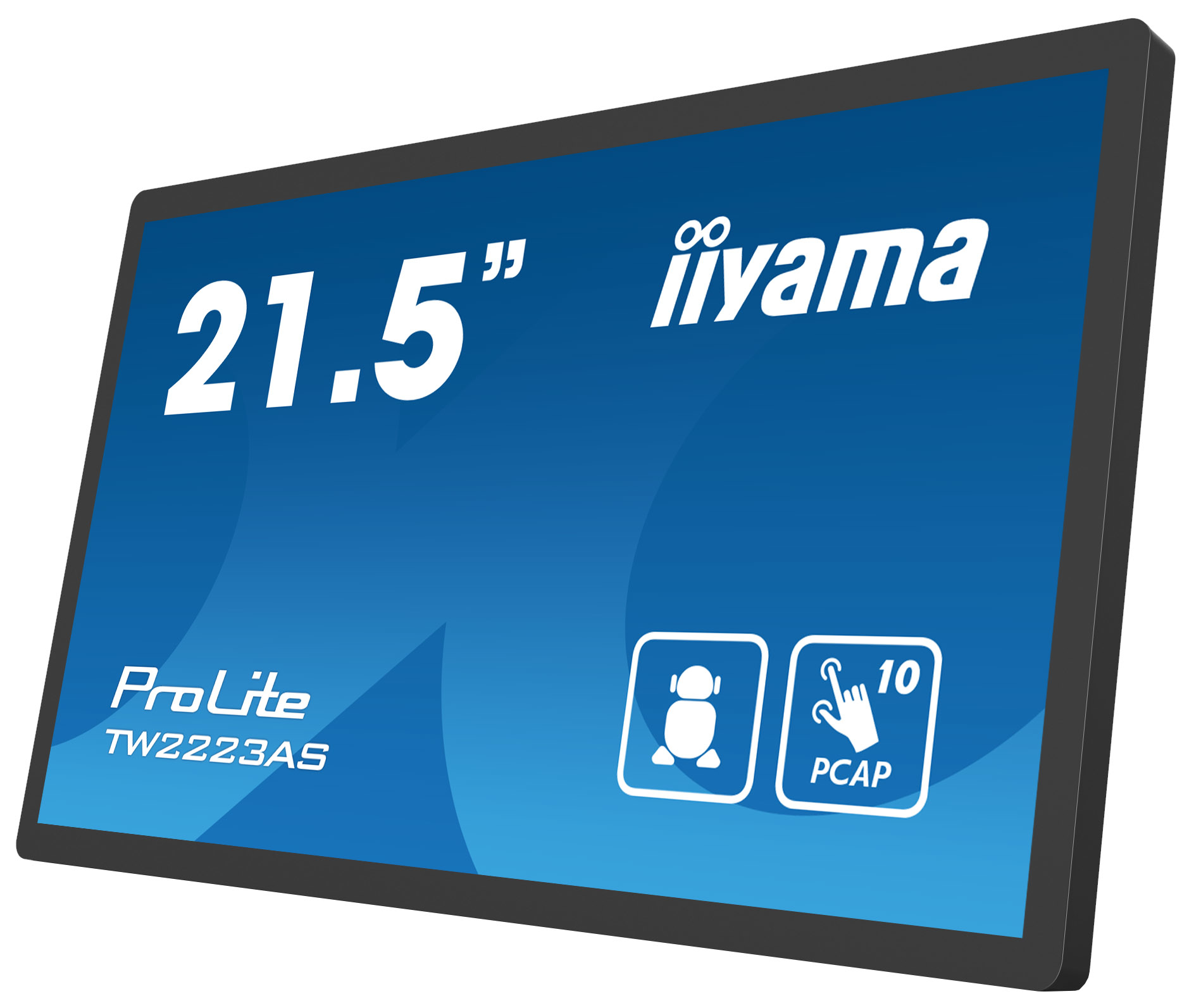

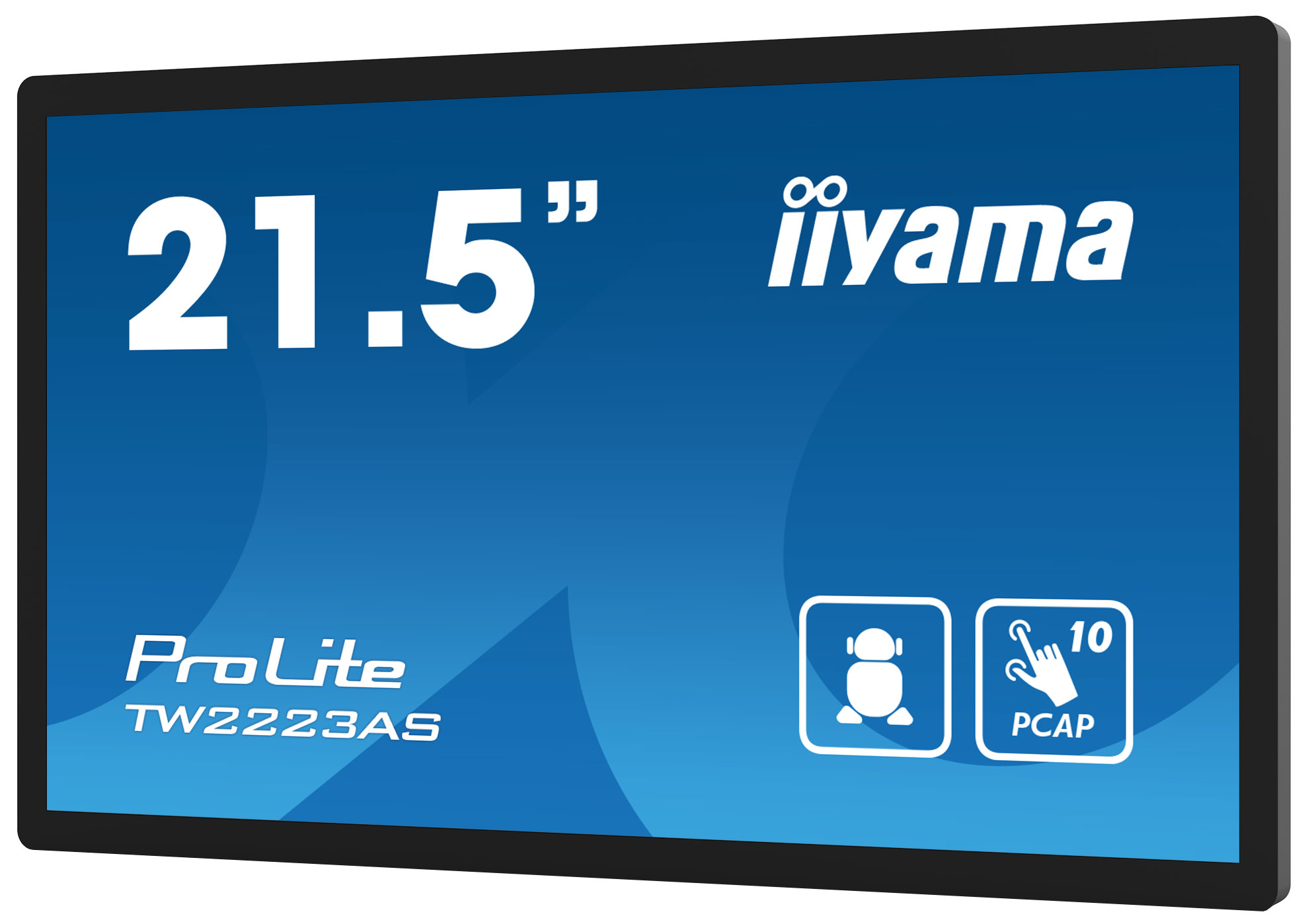

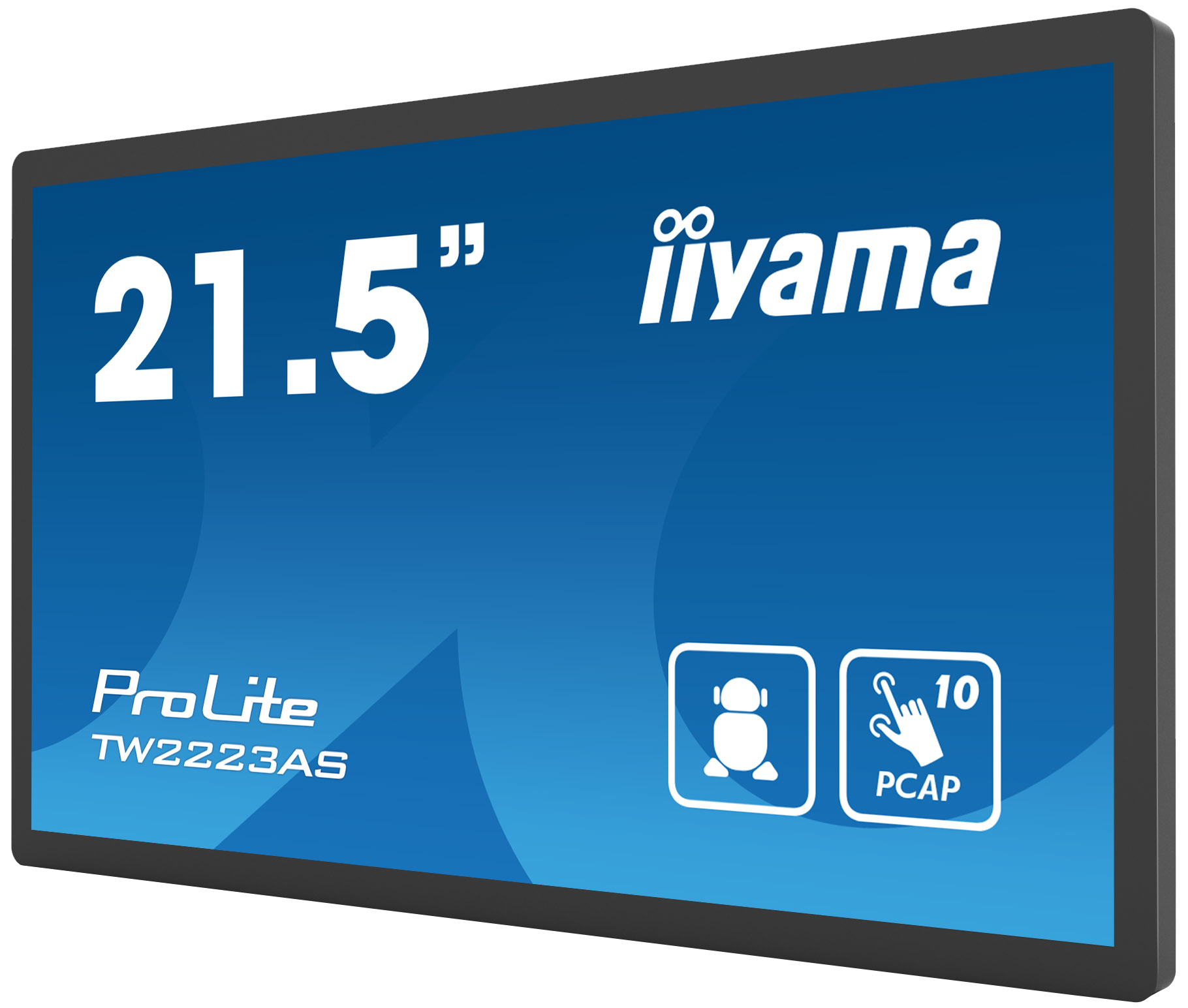

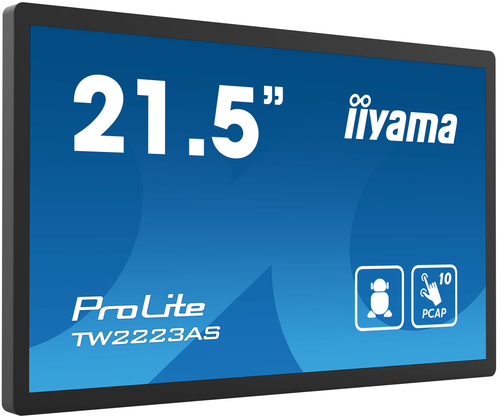

TW2223AS-B1 touch control panel
54.6 cm (21.5") 1920 x 1080 pixels
Model TW2223AS-B1EAN 4948570122936
39 specifications
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- OSAndroid
- Weight3.61 kg
- ColourBlack
- Mounting typeIn wall
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- OS
- Android
- Weight
- 3.61 kg
- Colour
- Black
- Mounting type
- In wall
- Brand
- iiyama
- Category
- Touch Control Panel
- Model
- TW2223AS-B1
- Part number
- TW2223AS-B1
- EAN / UPC
- 4948570122936, 5715063279250
- Also known as
- iiyama TW2223AS-B1 touch control panel 54.6 cm (21.5") 1920 x 1080 pixels
Specifications
39 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 400 cd/m² |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Contrast ratio | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Performance
| Specification | Value |
|---|---|
| Mounting type | In wall |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Product colour | Black |
| Mean time between failures (MTBF) | 50000 h |
| VESA mounting | Yes |
| Operating system installed | Android |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Speaker power | 2 W |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| RJ-45 ports quantity | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply location | External |
| Power consumption (typical) | 23 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 504.5 mm |
| Depth | 32 mm |
| Height | 302 mm |
| Weight | 3.61 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package depth | 640 mm |
| Package height | 410 mm |
| Package weight | 5.98 kg |
| Package width | 121 mm |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
