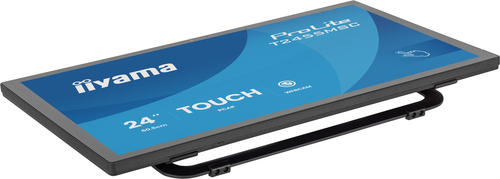

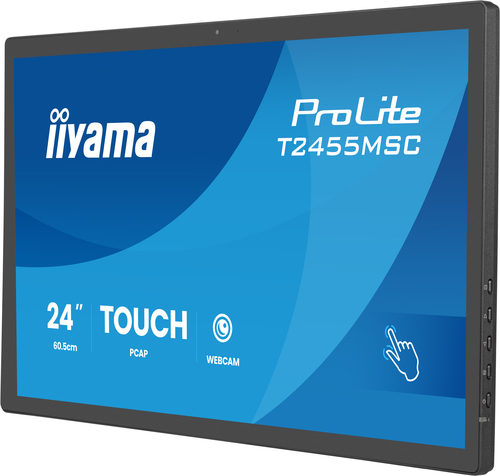

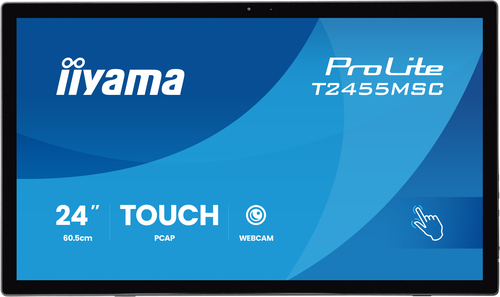

T2455MSC-B2 touch control panel
60.5 cm (23.8") 1920 x 1080 pixels
Model T2455MSC-B2EAN 4948570127283
38 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- Energy classE
- Weight4.4 kg
- ColourBlack
- Wi-FiNo
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Weight
- 4.4 kg
- Colour
- Black
- Wi-Fi
- No
- Brand
- iiyama
- Category
- Touch Control Panel
- Model
- T2455MSC-B2
- Part number
- T2455MSC-B2
- EAN / UPC
- 4948570127283
- Also known as
- iiyama T2455MSC-B2 touch control panel 60.5 cm (23.8") 1920 x 1080 pixels
Specifications
38 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Panel type | IPS |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 360 cd/m² |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Colour depth | 8 bit |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Native refresh rate | 60 Hz |
Performance
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Product colour | Black |
| Mean time between failures (MTBF) | 50000 h |
| VESA mounting | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Built-in microphone | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | E |
| Energy consumption per 1000 hours | 17.8 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.7 W |
| AC input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 567 mm |
| Depth | 43.5 mm |
| Height | 338 mm |
| Weight | 4.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 115 mm |
| Package height | 405 mm |
| Package weight | 5.8 kg |
| Package width | 635 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB, HDMI |
| Quick start guide | Yes |
| Packaging content | spiral tube |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
Technical details
| Specification | Value |
|---|---|
| Display number of colours | 16.7 million colours |
