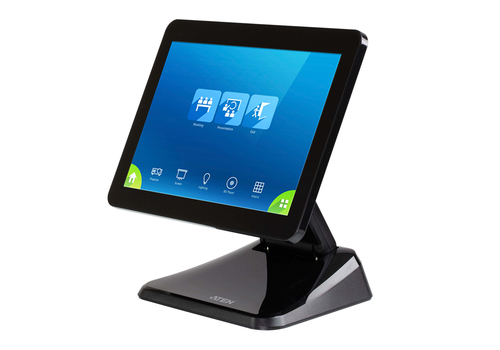

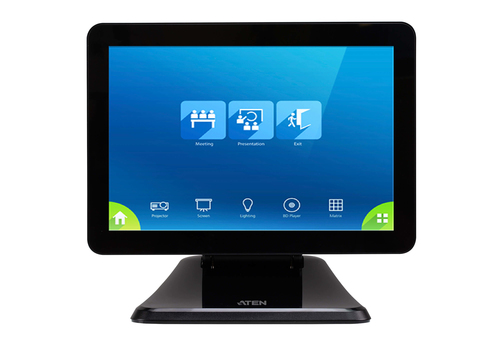

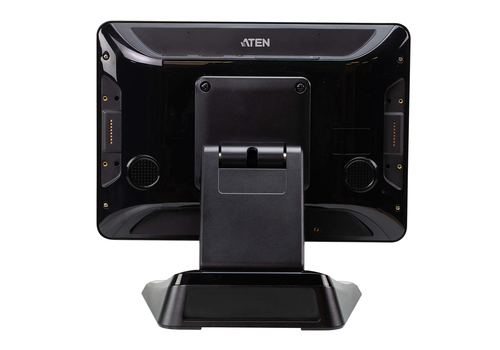

VKT100-AT touch control panel
25.6 cm (10.1") 1280 x 800 pixels
Model VKT100-AT
28 specifications
- Display25.6 cm (10.1")
- Resolution1280 x 800 pixels
- Memory8000 MB
- Weight620 g
- ColourBlack
- Mounting typeWall/Tabletop
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1280 x 800 pixels
- Memory
- 8000 MB
- Weight
- 620 g
- Colour
- Black
- Mounting type
- Wall/Tabletop
- Brand
- ATEN
- Category
- Touch Control Panel
- Model
- VKT100-AT
- Part number
- VKT100-AT
- Also known as
- ATEN VKT100-AT touch control panel 25.6 cm (10.1") 1280 x 800 pixels
Specifications
28 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display technology | LCD |
| Display resolution | 1280 x 800 pixels |
| Touchscreen technology | Capacitive |
| Native aspect ratio | 16:9 |
| Colour depth | 8 bit |
| Contrast ratio | 800:1 |
| Viewing angle, horizontal | 85° |
| Viewing angle, vertical | 85° |
Performance
| Specification | Value |
|---|---|
| Mounting type | Wall/Tabletop |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Internal memory | 8000 MB |
| RAM capacity | 2000 MB |
| Product colour | Black |
| Housing material | Plastic, Polycarbonate (PC) |
| VESA mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 Type-A ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Input voltage | 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177.8 mm |
| Depth | 252.2 mm |
| Height | 24.5 mm |
| Weight | 620 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
