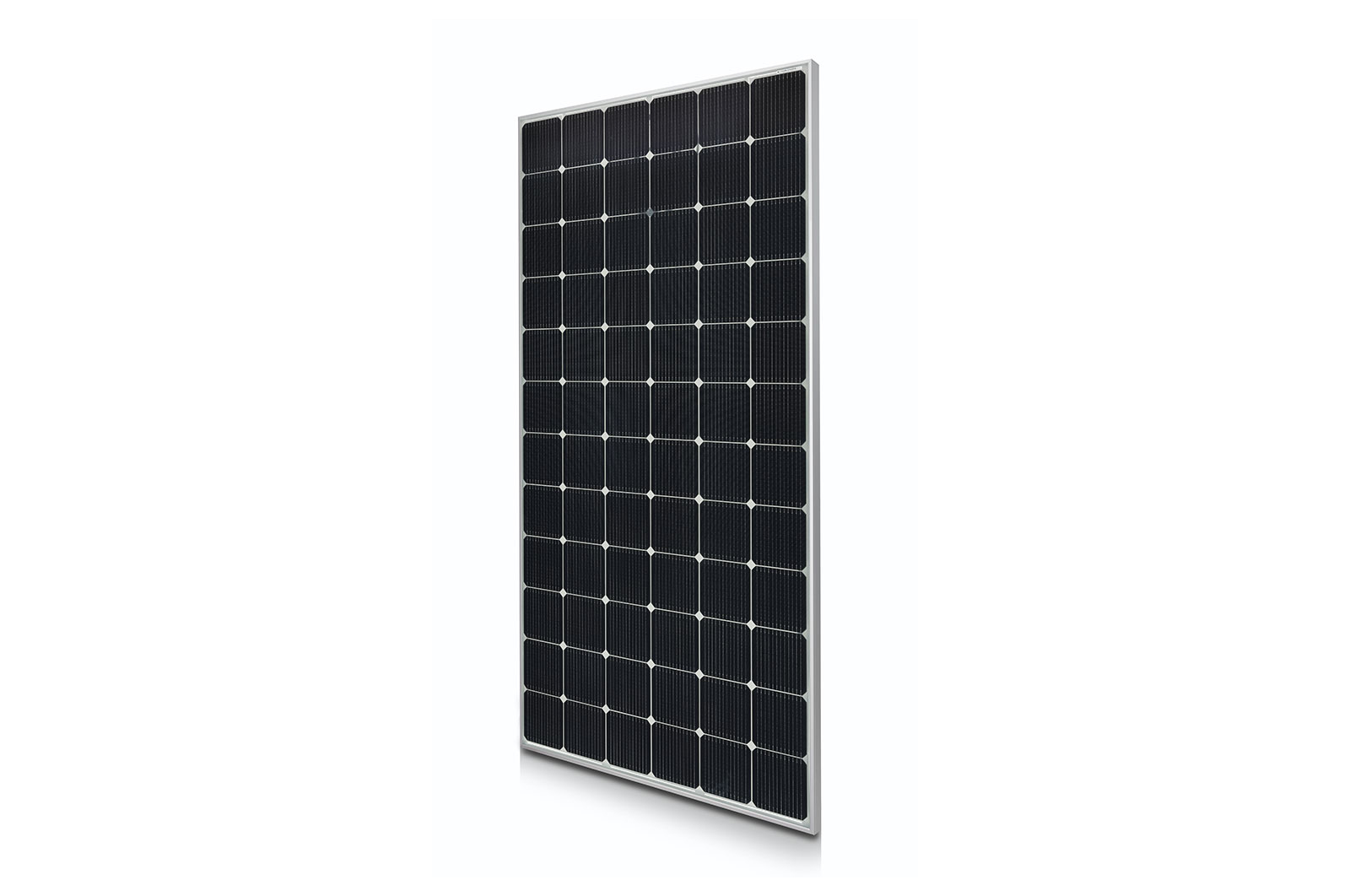

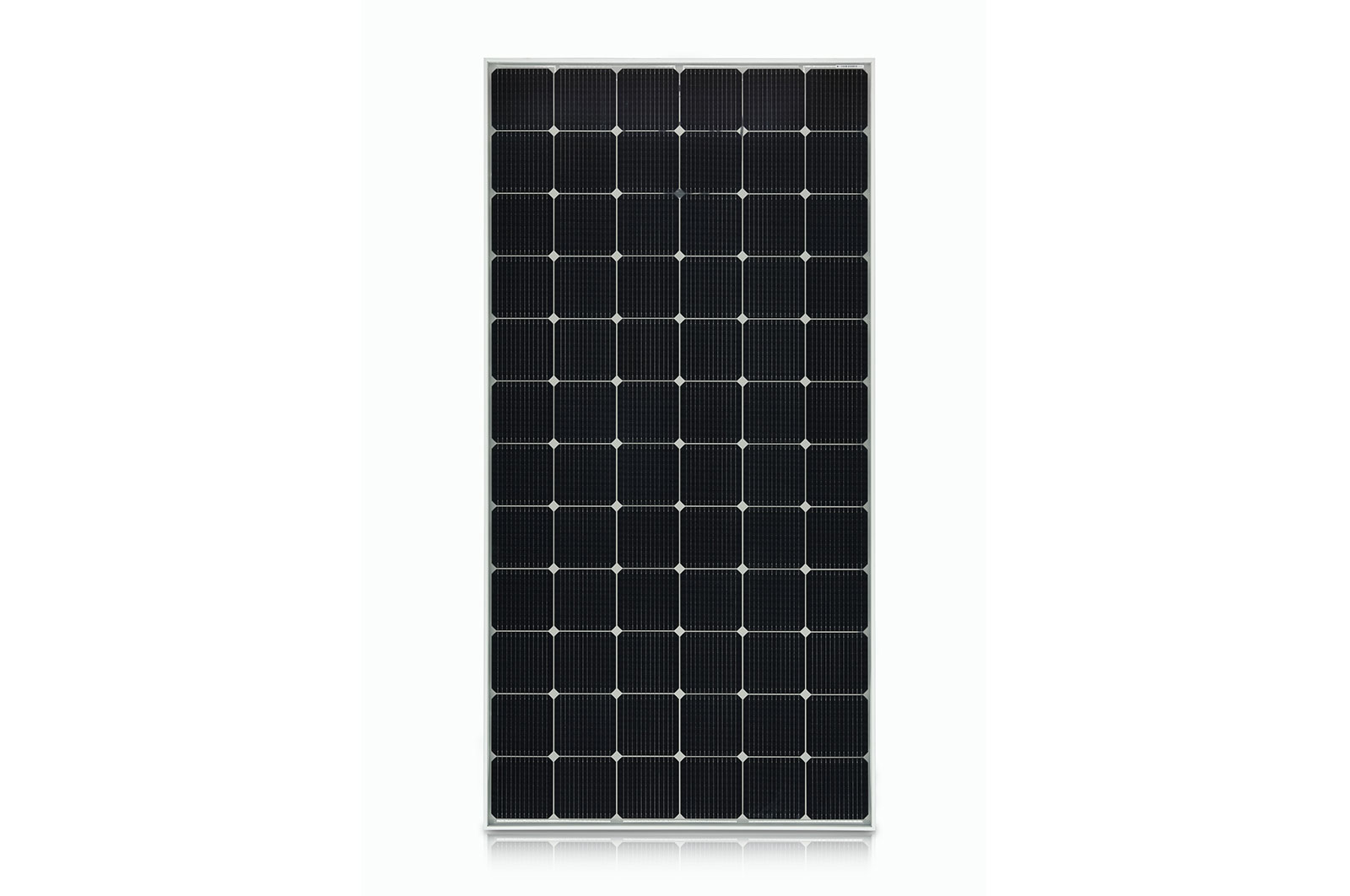

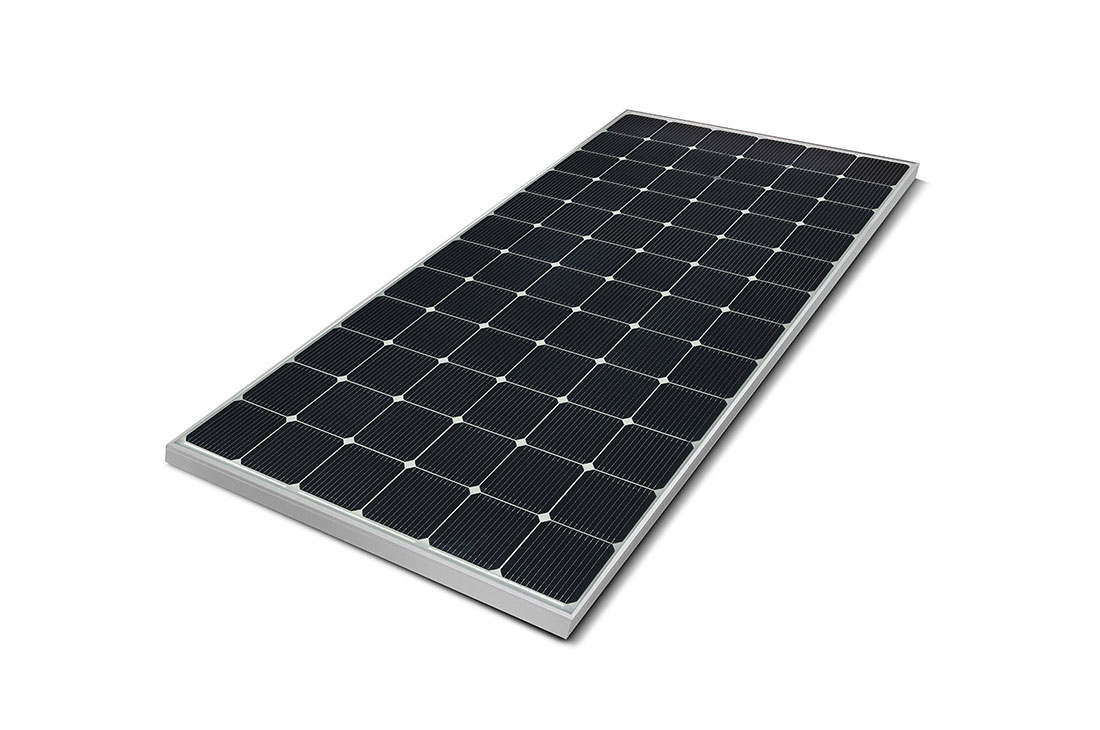

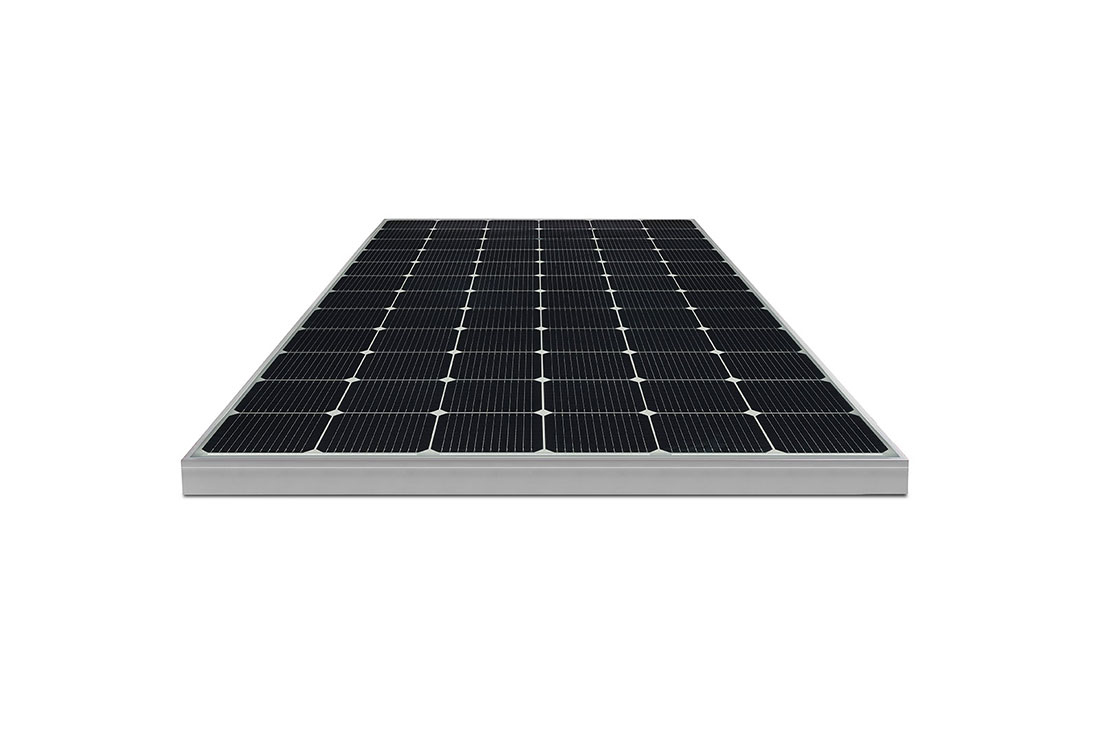

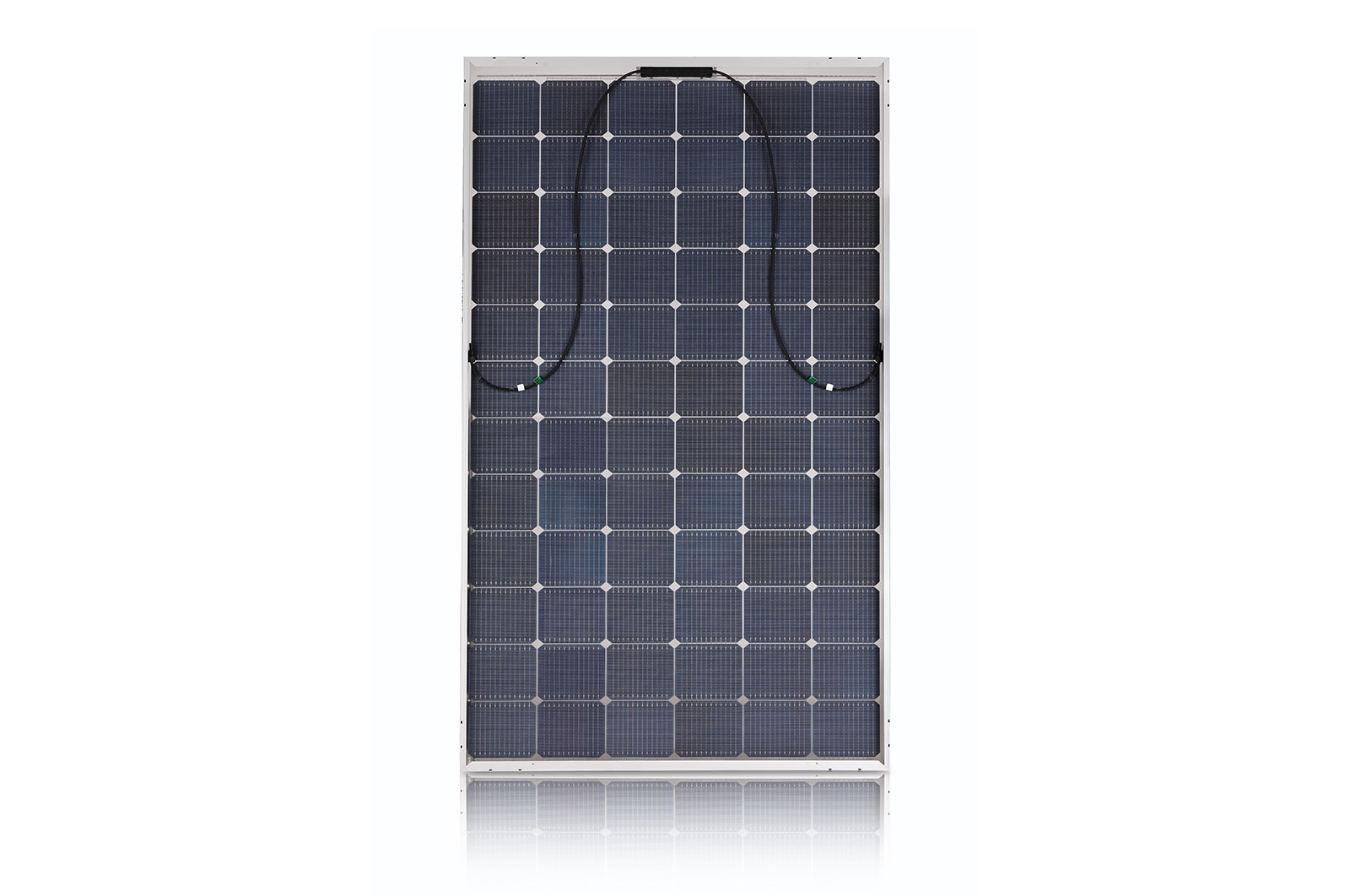

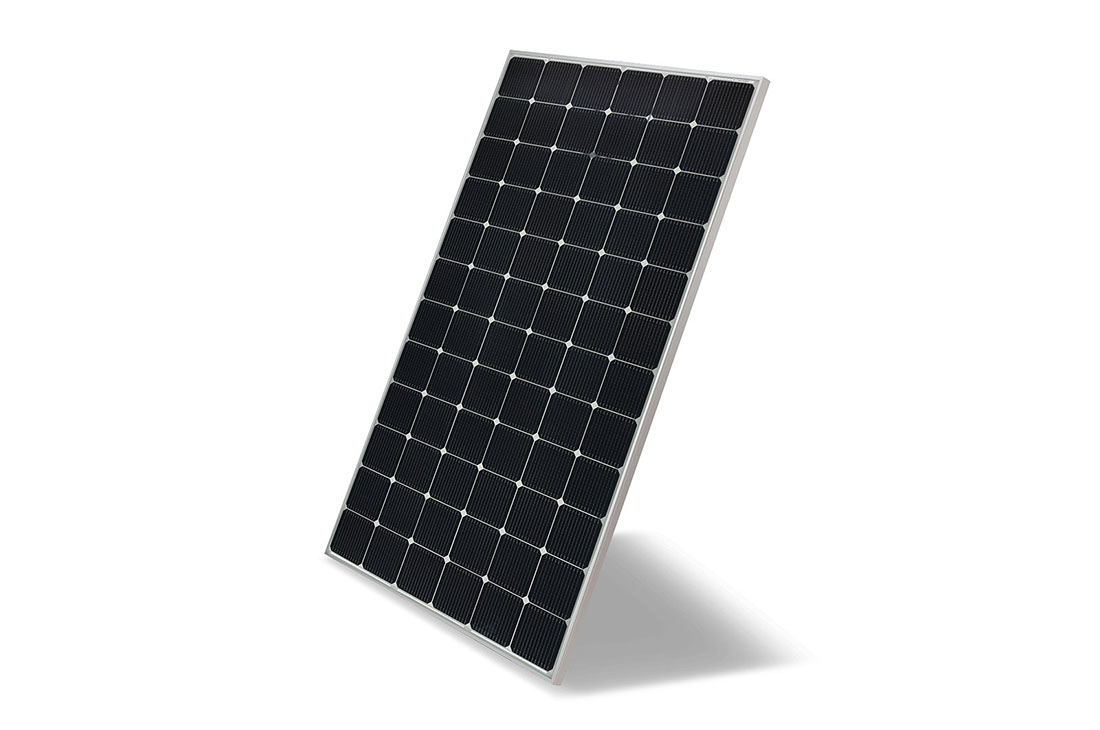

LG405N2T-J5 solar panel
405 W Monocrystalline silicon
Model LG405N2T-J5
16 specifications
- Power405 W
- Weight20.3 kg
- ColourBlack
- Solar cell typeMonocrystalline silicon
- Operating temperature (T-T)-40 - 90 °C
- Width1024 mm
Overview
- Power
- 405 W
- Weight
- 20.3 kg
- Colour
- Black
- Solar cell type
- Monocrystalline silicon
- Operating temperature (T-T)
- -40 - 90 °C
- Width
- 1024 mm
- Brand
- LG
- Category
- Solar Panel
- Model
- LG405N2T-J5
- Part number
- LG405N2T-J5
- Also known as
- LG LG405N2T-J5 solar panel 405 W Monocrystalline silicon
Specifications
16 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Rated power | 405 W |
Features
| Specification | Value |
|---|---|
| Solar cell type | Monocrystalline silicon |
| Connector type | MC4 |
| Product colour | Black |
| Housing material | Aluminium |
| International Protection (IP) code | IP68 |
| Certification | IEC 61215-1/-1-1/2 : 2016, IEC 61730-1/2:2016 UL 1703 |
| Number of cells | 72 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 90 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1120 mm |
| Package depth | 2080 mm |
| Package height | 1226 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1024 mm |
| Depth | 2024 mm |
| Height | 40 mm |
| Weight | 20.3 kg |
