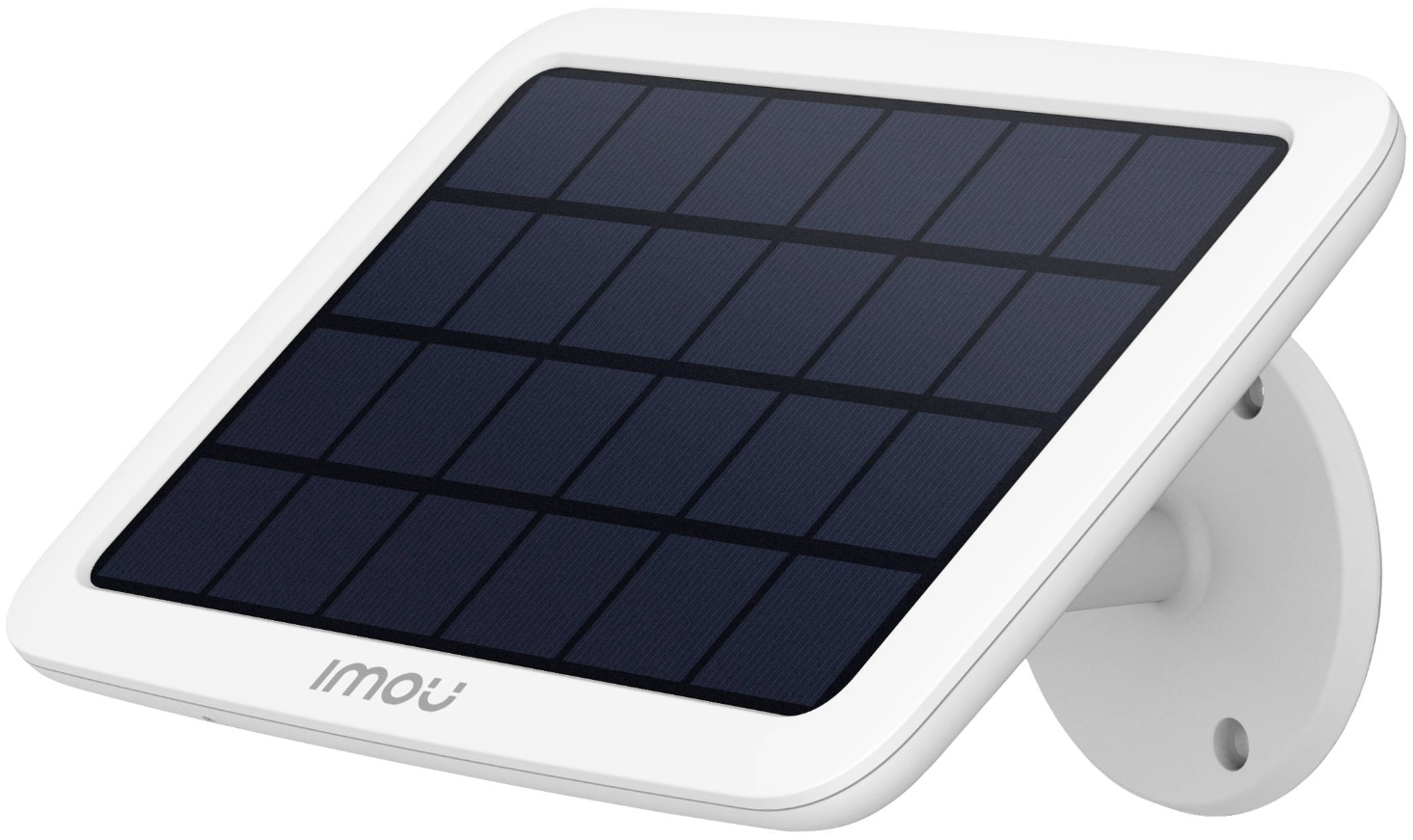

FSP12 solar panel
3 W Monocrystalline silicon
Model FSP12EAN 6976391037687
16 specifications
- Power3 W
- ColourWhite
- Solar cell typeMonocrystalline silicon
- Operating temperature (T-T)-20 - 60 °C
- Width197 mm
Overview
- Power
- 3 W
- Colour
- White
- Solar cell type
- Monocrystalline silicon
- Operating temperature (T-T)
- -20 - 60 °C
- Width
- 197 mm
- Brand
- Imou
- Category
- Solar Panel
- Model
- FSP12
- Part number
- FSP12
- EAN / UPC
- 6976391037687
- Also known as
- Imou FSP12 solar panel 3 W Monocrystalline silicon
Specifications
16 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Rated power | 3 W |
| Solar panel voltage | 6.2 V |
| Solar panel current | 484 mA |
| Short-circuit current (Isc) | 0.508 A |
| Voltage at open-circuit (Voc) | 7.4 V |
Features
| Specification | Value |
|---|---|
| Solar cell type | Monocrystalline silicon |
| Product colour | White |
| International Protection (IP) code | IP65 |
| USB connector type | Micro-USB |
| USB port | Yes |
| Compatible products | Imou Cell Go/Cell 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 45 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197 mm |
| Depth | 25 mm |
| Height | 138 mm |
