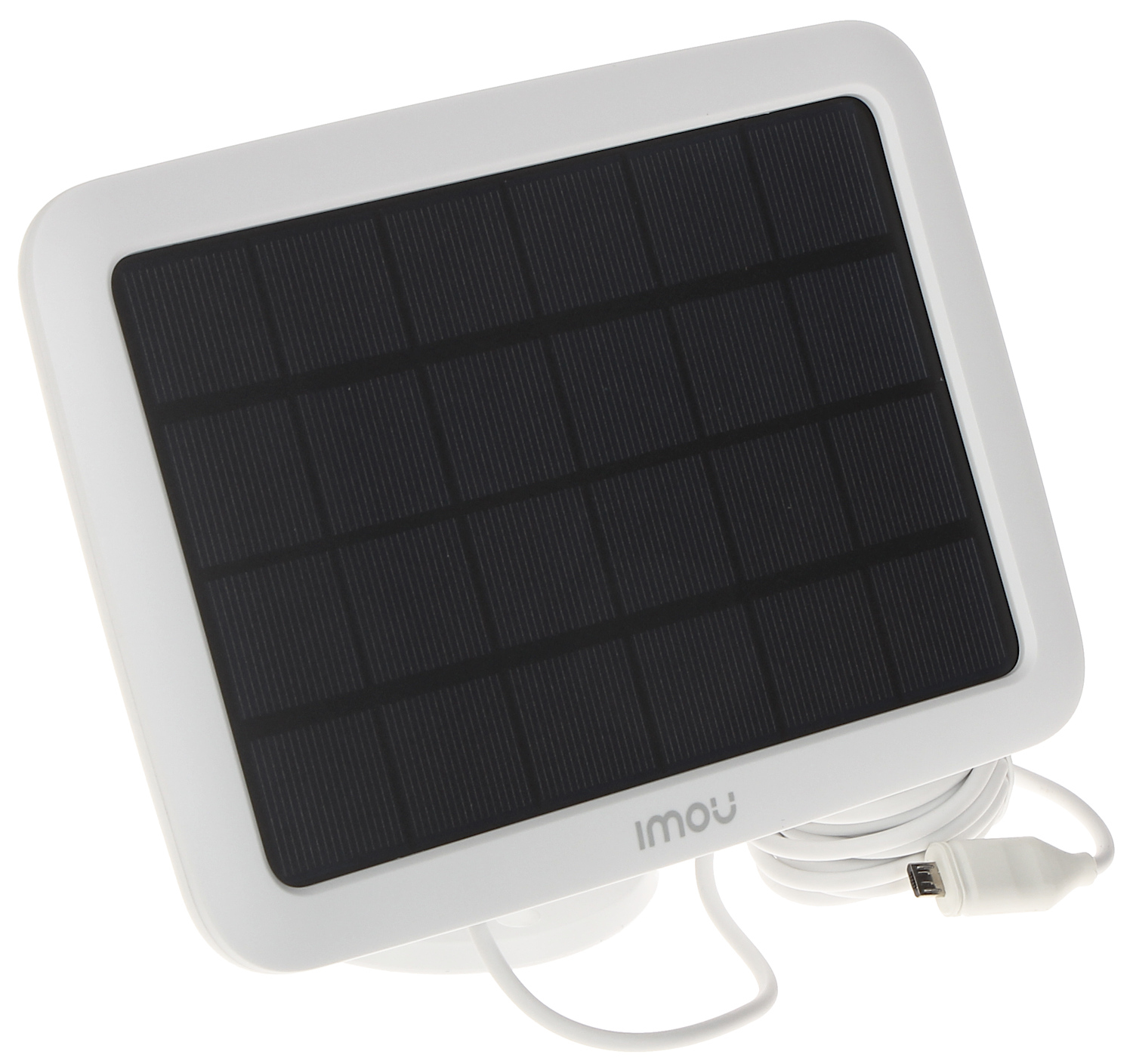

Solar Panel for cell
Model FSP11-IMOUEAN 6971927231843
13 specifications
- Power3 W
- International Protection (IP) codeIP65
- Operating temperature (T-T)-20 - 60 °C
- Width180 mm
Overview
- Power
- 3 W
- International Protection (IP) code
- IP65
- Operating temperature (T-T)
- -20 - 60 °C
- Width
- 180 mm
- Brand
- Imou
- Category
- Solar Panel
- Model
- FSP11-IMOU
- Part number
- FSP11-IMOU
- EAN / UPC
- 6971927231843
- Also known as
- Imou Solar Panel for cell
Specifications
13 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Rated power | 3 W |
| Solar panel voltage | 5.75 V |
| Solar panel current | 484 mA |
| Short-circuit current (Isc) | 0.508 A |
| Voltage at open-circuit (Voc) | 7.4 V |
Features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| Integrated cables | Yes |
| USB ports quantity | 1 |
| Compatible products | Cell 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 2.5 mm |
| Height | 120 mm |
