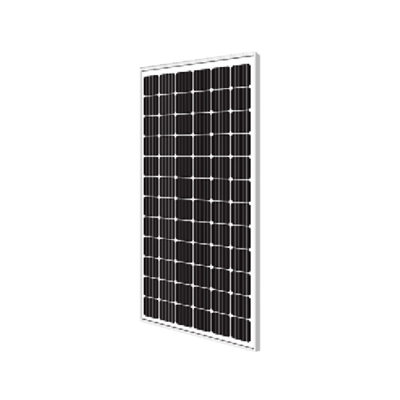

PFM371-M330 solar panel
330 W Monocrystalline silicon
Model PFM371-M330Part no. DH-PFM371-M330
19 specifications
- Power330 W
- Weight21 kg
- Solar cell typeMonocrystalline silicon
- Operating temperature (T-T)-40 - 85 °C
- Width1956 mm
Overview
- Power
- 330 W
- Weight
- 21 kg
- Solar cell type
- Monocrystalline silicon
- Operating temperature (T-T)
- -40 - 85 °C
- Width
- 1956 mm
- Brand
- Dahua Technology
- Category
- Solar Panel
- Model
- PFM371-M330
- Part number
- DH-PFM371-M330
- Also known as
- Dahua Technology PFM371-M330 solar panel 330 W Monocrystalline silicon
Specifications
19 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Rated power | 330 W |
| Solar panel power | 330 W |
| Solar panel voltage | 37.7 V |
| Solar panel current | 8760 mA |
Features
| Specification | Value |
|---|---|
| Solar cell type | Monocrystalline silicon |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2000 mm |
| Package depth | 1050 mm |
| Package height | 110 mm |
| Package weight | 21 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1956 mm |
| Depth | 992 mm |
| Height | 40 mm |
| Weight | 21 kg |
