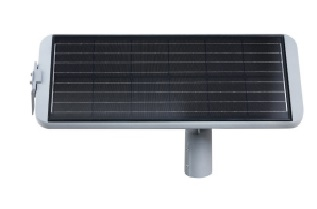

PFM364L-D1 solar panel
60 W Monocrystalline silicon
Model PFM364L-D1Part no. DH-PFM364L-D1
20 specifications
- Power60 W
- Weight16 kg
- Solar cell typeMonocrystalline silicon
- Operating temperature (T-T)-20 - 60 °C
- Width1149.5 mm
Overview
- Power
- 60 W
- Weight
- 16 kg
- Solar cell type
- Monocrystalline silicon
- Operating temperature (T-T)
- -20 - 60 °C
- Width
- 1149.5 mm
- Brand
- Dahua Technology
- Category
- Solar Panel
- Model
- PFM364L-D1
- Part number
- DH-PFM364L-D1
- Also known as
- Dahua Technology PFM364L-D1 solar panel 60 W Monocrystalline silicon
Specifications
20 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Rated power | 60 W |
| Solar panel power | 60 W |
Features
| Specification | Value |
|---|---|
| Solar cell type | Monocrystalline silicon |
| Housing material | Aluminium |
| Best uses | Camera |
| Tilt angle range | 0 - 360° |
| International Protection (IP) code | IP66 |
| Cell efficiency | 21% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 13513 mm |
| Package depth | 548 mm |
| Package height | 364 mm |
| Package weight | 22.5 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1149.5 mm |
| Depth | 367.6 mm |
| Height | 430.2 mm |
| Weight | 16 kg |
