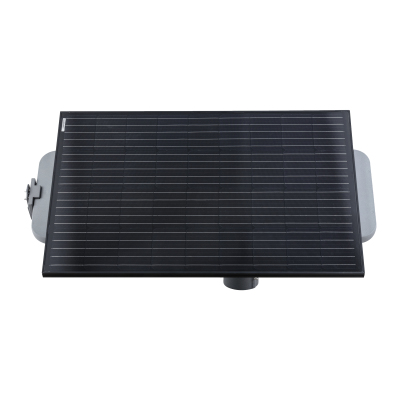

PFM363L-SD1 solar panel
120 W Monocrystalline silicon
Model PFM363L-SD1Part no. DH-PFM363L-SD1
20 specifications
- Power120 W
- Weight23.5 kg
- Solar cell typeMonocrystalline silicon
- Operating temperature (T-T)-20 - 60 °C
- Width1149.5 mm
Overview
- Power
- 120 W
- Weight
- 23.5 kg
- Solar cell type
- Monocrystalline silicon
- Operating temperature (T-T)
- -20 - 60 °C
- Width
- 1149.5 mm
- Brand
- Dahua Technology
- Category
- Solar Panel
- Model
- PFM363L-SD1
- Part number
- DH-PFM363L-SD1
- Also known as
- Dahua Technology PFM363L-SD1 solar panel 120 W Monocrystalline silicon
Specifications
20 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Rated power | 120 W |
| Solar panel power | 120 W |
Features
| Specification | Value |
|---|---|
| Solar cell type | Monocrystalline silicon |
| Housing material | Aluminium |
| Best uses | Camera |
| Tilt angle range | 0 - 360° |
| International Protection (IP) code | IP66 |
| Cell efficiency | 21% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1351 mm |
| Package depth | 796 mm |
| Package height | 378 mm |
| Package weight | 33 kg |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1149.5 mm |
| Depth | 670 mm |
| Height | 455.2 mm |
| Weight | 23.5 kg |
