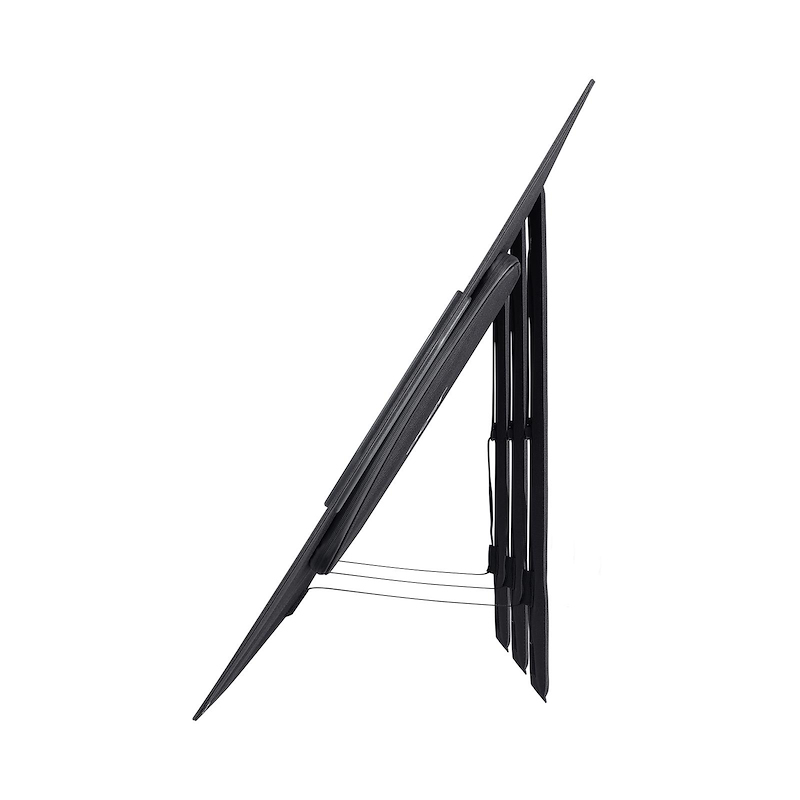

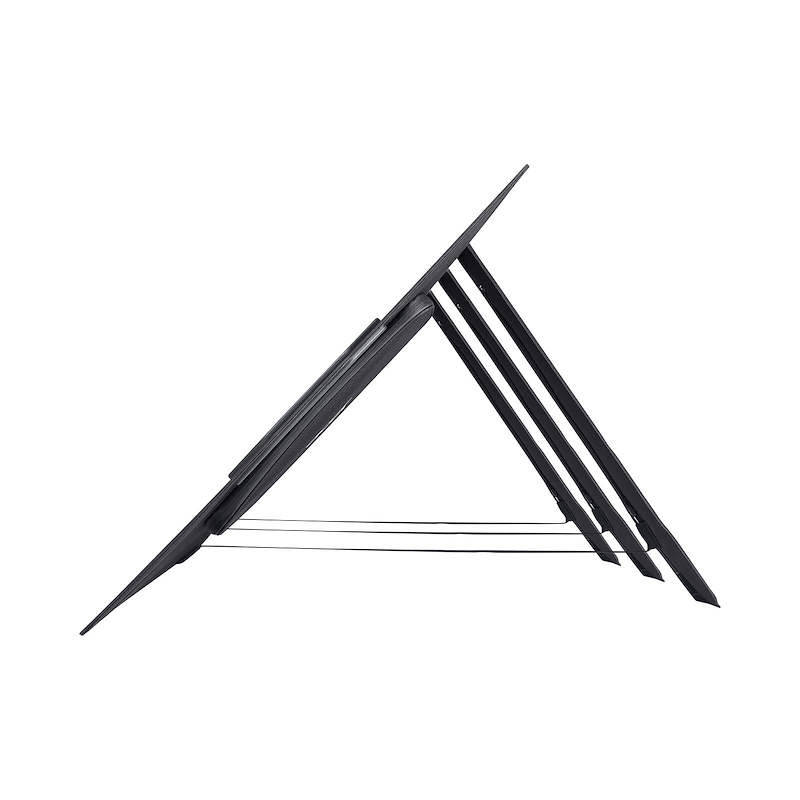

GP.ADT11.02N solar panel
200 W Monocrystalline silicon
Model GP.ADT11.02NEAN 4711121771101
14 specifications
- Power200 W
- Weight8.28 kg
- ColourBlack
- Solar cell typeMonocrystalline silicon
- Operating temperature (T-T)-10 - 65 °C
- Width500 mm
Overview
- Power
- 200 W
- Weight
- 8.28 kg
- Colour
- Black
- Solar cell type
- Monocrystalline silicon
- Operating temperature (T-T)
- -10 - 65 °C
- Width
- 500 mm
- Brand
- Acer
- Category
- Solar Panel
- Model
- GP.ADT11.02N
- Part number
- GP.ADT11.02N
- EAN / UPC
- 4711121771101
- Also known as
- Acer GP.ADT11.02N solar panel 200 W Monocrystalline silicon
Specifications
14 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Rated power | 200 W |
| Maximum system voltage | 20 V |
| Power tolerance | 10% |
| Short-circuit current (Isc) | 14.64 A |
| Voltage at open-circuit (Voc) | 23.4 V |
| Short-circuit current (Isc) (STC) | 14.64 A |
Features
| Specification | Value |
|---|---|
| Solar cell type | Monocrystalline silicon |
| Product colour | Black |
| Cell efficiency | 23% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 500 mm |
| Depth | 5 mm |
| Height | 765 mm |
| Weight | 8.28 kg |
