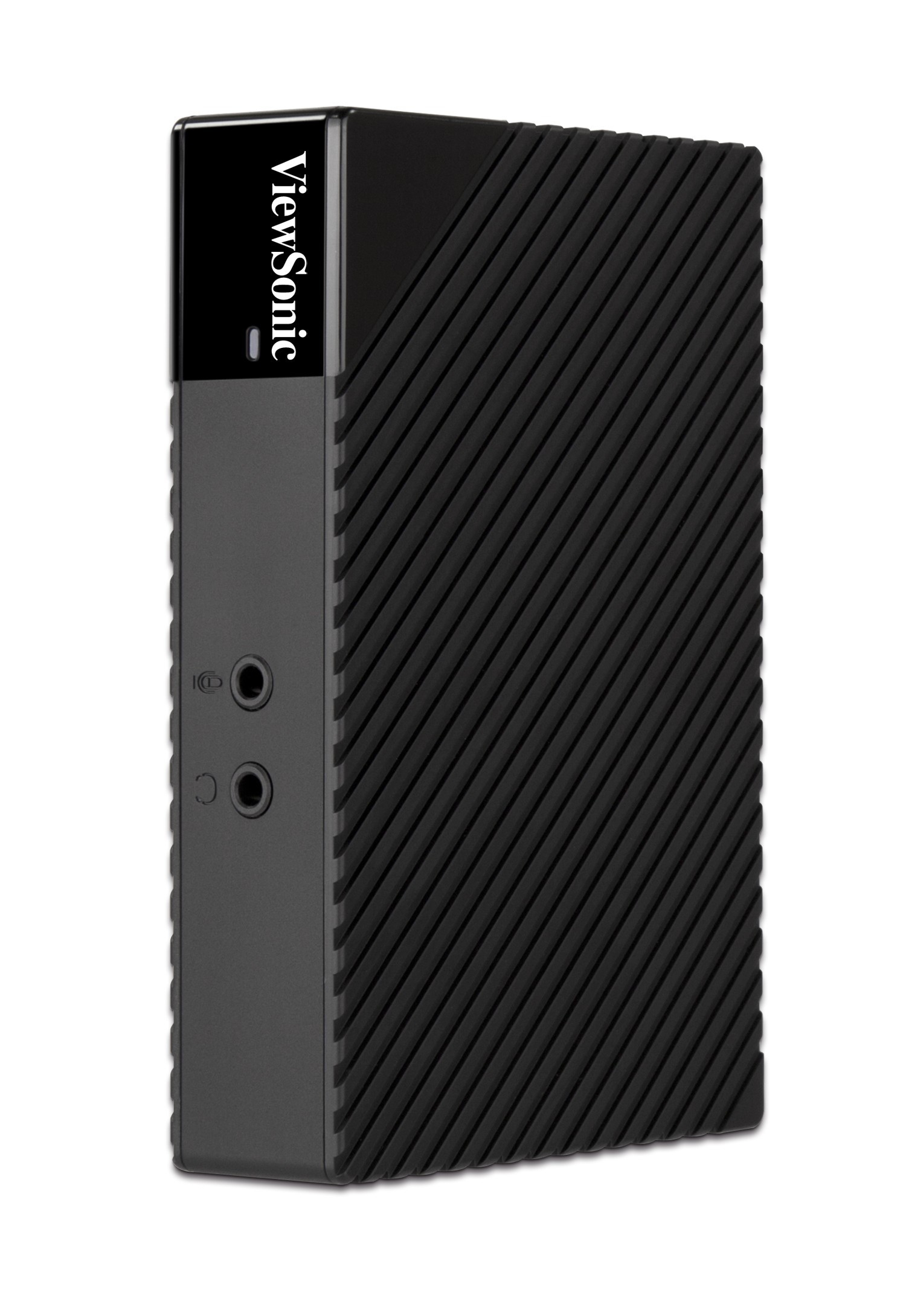

Viewsonic VMS700 server
1 TB Micro Tower Intel® Core™ i3 i3-550 3.2 GHz 8 GB DDR3-SDRAM 250 W Windows Small Business Server 2011 Standard
Model VMS700Part no. VMS700B_S1US_01EAN 766907588415
110 specifications
- ProcessorIntel® Core™ i3
- Memory8 GB
- Storage1 TB
- Noise45 dB
- Weight6.94 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Storage
- 1 TB
- Noise
- 45 dB
- Weight
- 6.94 kg
- Processor manufacturer
- Intel
- Brand
- Viewsonic
- Category
- Server
- Model
- VMS700
- Part number
- VMS700B_S1US_01
- EAN / UPC
- 766907588415, 7669075884156
- Also known as
- Viewsonic VMS700 server 1 TB Micro Tower Intel® Core™ i3 i3-550 3.2 GHz 8 GB DDR3-SDRAM 250 W Windows Small Business Server 2011 Standard
Specifications
110 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | Intel® Core™ i3 |
| Processor model | i3-550 |
| Processor frequency | 3.2 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 73 W |
| Processor cache type | Smart Cache |
| System bus rate | 2.5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 24 |
| Compatible processor series | Intel® Core™ i3 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 16 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of Processing Die Transistors | 382 M |
| PCI Express configurations | 1x16, 2x8 |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processing Die size | 81 mm² |
| Processor code | SLBUD |
| Processor codename | Clarkdale |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Core i3-500 Desktop Series |
| Processor socket | LGA 1156 (Socket H) |
| Processor threads | 4 |
| Stepping | K0 |
| Supported instruction sets | SSE4.2 |
| Tcase | 72.6 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD interface | Serial ATA |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 733 MHz |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 12 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
Performance
| Specification | Value |
|---|---|
| Noise level | 45 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Small Business Server 2011 Standard |
| Compatible operating systems | Windows MultiPoint Server 2011 Standard License, Windows MultiPoint Server 2011, Userful Multiseat Linux 2011 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 48505 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 250 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, FCC, CE, CCC, BSMI, NRTL, WEEE, RoHS, WHQL 2008 R2 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96 mm |
| Depth | 330 mm |
| Height | 400 mm |
| Weight | 6.94 kg |
| Package weight | 8.34 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 330 x 400 x 96 mm |
| Graphics card | GeForce 8400 GS |
| Graphics card family | NVIDIA |
