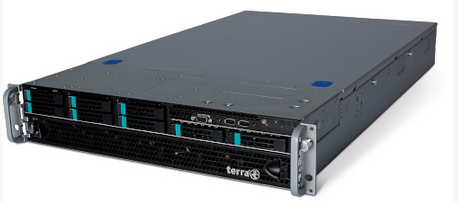

TERRA SERVER 8220 G1 (B-t-O)
Model TERRA SERVER 8220 G1 (B-t-O)Part no. 1100762
100 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory16 GB
- OSNo
- Weight31.1 kg
- Processor manufacturerIntel
- HDD interfaceSerial Attached SCSI (SAS)
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 16 GB
- OS
- No
- Weight
- 31.1 kg
- Processor manufacturer
- Intel
- HDD interface
- Serial Attached SCSI (SAS)
- Brand
- TERRA
- Category
- Server
- Model
- TERRA SERVER 8220 G1 (B-t-O)
- Part number
- 1100762
- Also known as
- TERRA 8220 G1 (B-t-O) server Rack (2U) Intel® Xeon® E5 Family E5-4603 2 GHz 16 GB DDR3-SDRAM 1600 W
Specifications
100 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-4603 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Processor cache | 10 MB |
| Motherboard chipset | Intel® C602 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 1.5 TB |
| Maximum number of PCI Express lanes | 40 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| Processor code | SR0LF |
| Processor codename | Sandy Bridge EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45.0 mm |
| Processor series | Intel Xeon E5-4600 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 8 |
| Scalability | 4S |
| Stepping | M1 |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 4 x 4 GB |
| Memory slots | 4 |
| Maximum internal memory | 1.53 TB |
Storage
| Specification | Value |
|---|---|
| HDD interface | Serial Attached SCSI (SAS) |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Hot-swap | Yes |
| Internal drive bays | 1 x Slim 5.25 ", 8x 2.5 " |
| Optical drive type | DVD±RW |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit |
| LAN controller | Intel® X540 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 6 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 6 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2008 SP2 32/64 bit Windows Server 2008 R2 Windows Server 2012 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 4 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64609 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1600 W |
| Number of main power supplies | 2 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, ISO9001 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 712 mm |
| Height | 88 mm |
| Weight | 31.1 kg |
