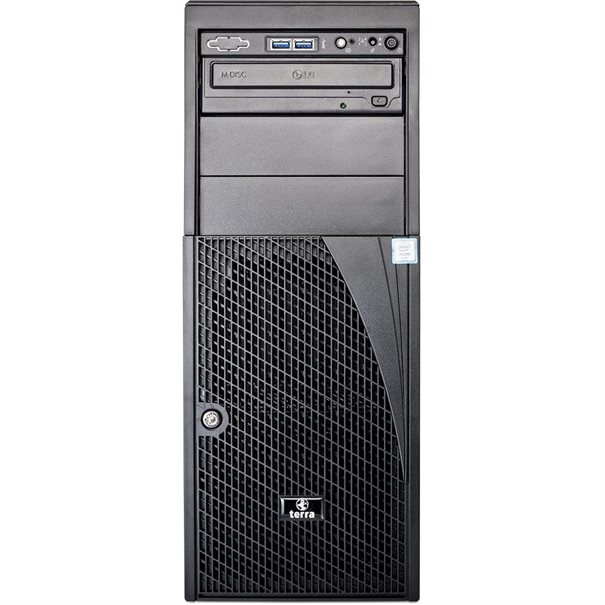

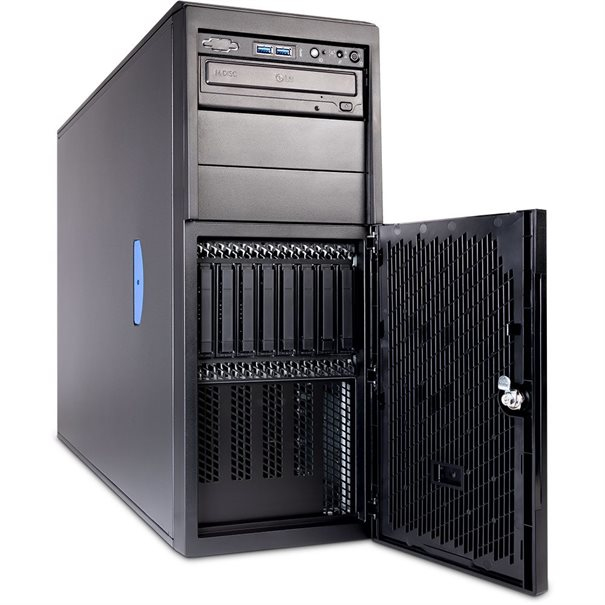

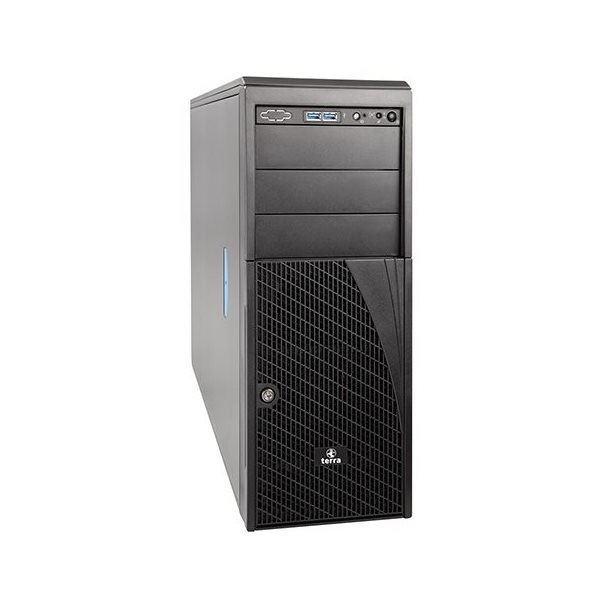

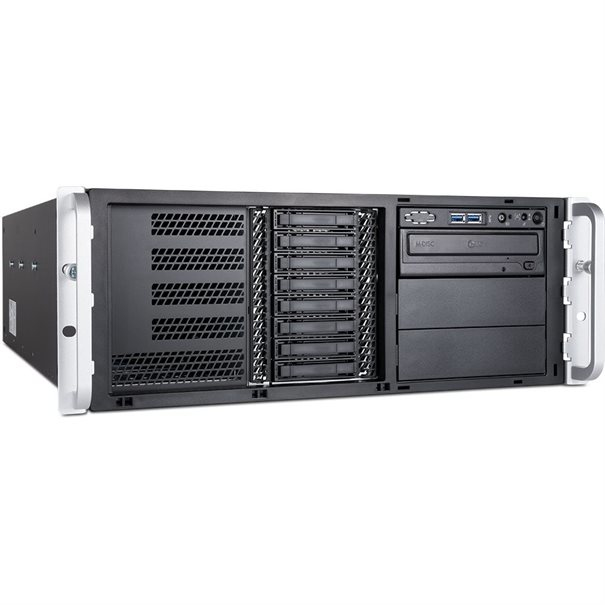

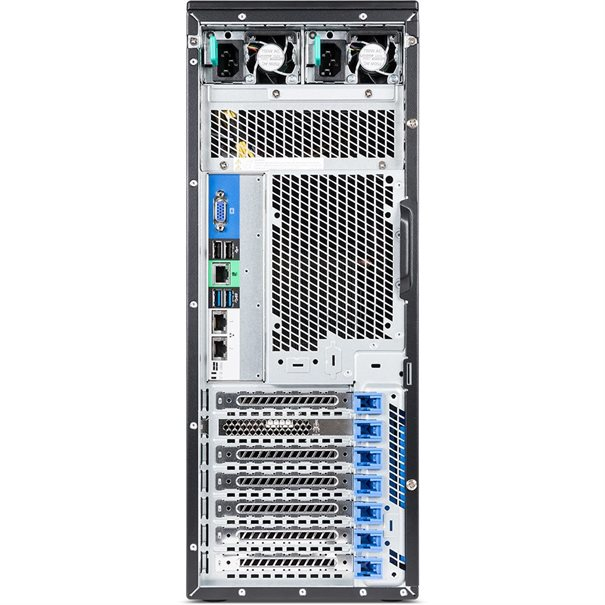

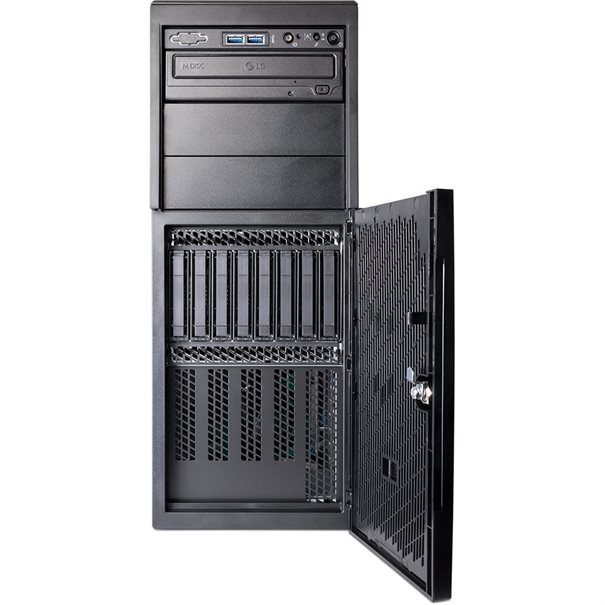

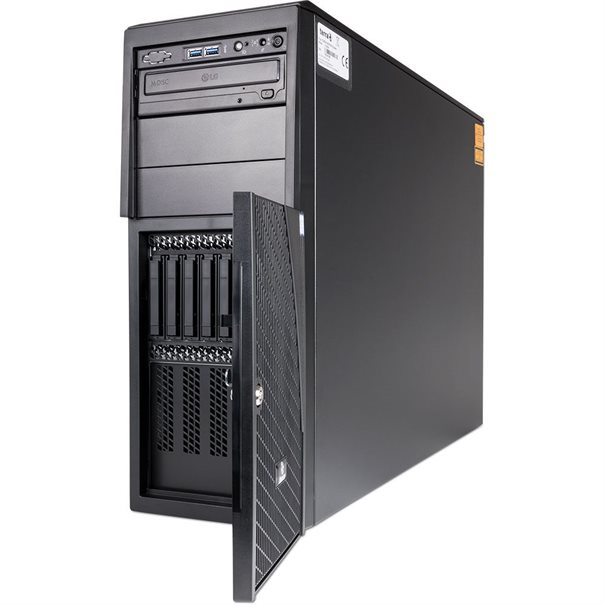

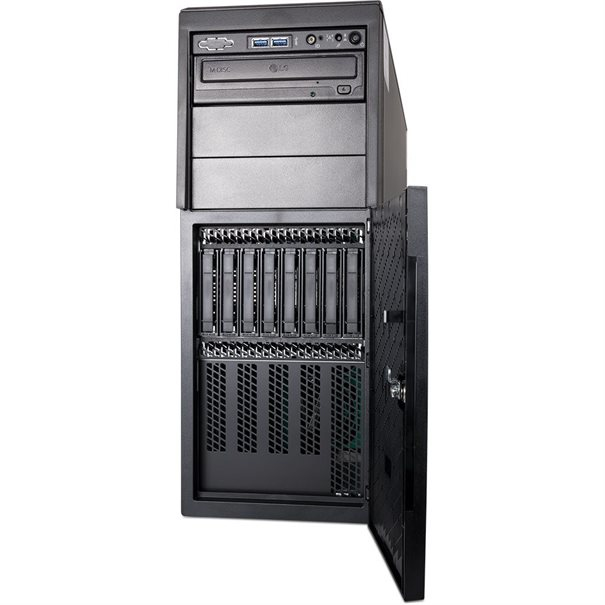

SERVER 7420
Model SERVER 7420Part no. 1100267EAN 4039407070022
48 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage1.92 TB
- OSNo
- Weight30 kg
- ColourBlack
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 1.92 TB
- OS
- No
- Weight
- 30 kg
- Colour
- Black
- Brand
- TERRA
- Category
- Server
- Model
- SERVER 7420
- Part number
- 1100267
- EAN / UPC
- 4039407070022
- Also known as
- TERRA 7420 server 1.92 TB Tower (4U) Intel Xeon Silver 4215R 3.2 GHz 32 GB DDR4-SDRAM 1600 W
Specifications
48 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4215R |
| Processor frequency | 3.2 GHz |
| Processor cache | 11 MB |
| Motherboard chipset | Intel® C624 |
| Number of processors installed | 1 |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory slots | 16x DIMM |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| RAID support | Yes |
| RAID levels | 1 |
| Optical drive type | DVD±RW |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4U) |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2022 Windows Server 2019 Windows Server 2016 VMware ESXi 7.0 VMware ESXi 6.7 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1600 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 173 mm |
| Depth | 633 mm |
| Height | 438 mm |
| Weight | 30 kg |
