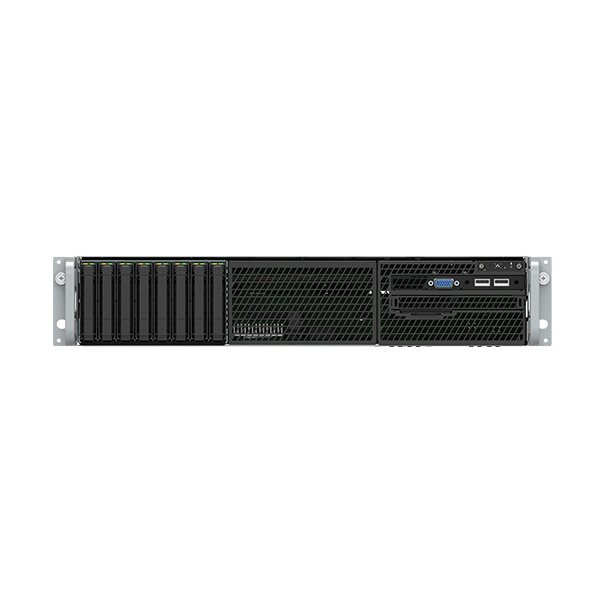

TERRA SERVER 7220 G3 SSD
Model TERRA SERVER 7220 G3 SSDPart no. 1100986EAN 4039407044108
81 specifications
- ProcessorIntel® Xeon®
- Memory48 GB
- Storage240 GB
- OSNo
- Weight31 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon®
- Memory
- 48 GB
- Storage
- 240 GB
- OS
- No
- Weight
- 31 kg
- Processor manufacturer
- Intel
- Brand
- TERRA
- Category
- Server
- Model
- TERRA SERVER 7220 G3 SSD
- Part number
- 1100986
- EAN / UPC
- 4039407044108
- Also known as
- TERRA 7220 G3 SSD server Rack Intel® Xeon® 4114 2.2 GHz 48 GB DDR4-SDRAM 1300 W
Specifications
81 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 4114 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3 GHz |
| Processor cores | 10 |
| Processor cache | 13.75 MB |
| Motherboard chipset | Intel® C624 |
| Memory channels supported by processor | Hexa |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| Bus type | UPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Maximum number of SMP processors | 2 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3GK |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 20 |
| Scalability | 2S |
| Stepping | U0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 78 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 48 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory slots | 24 |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| HDD interface | Serial ATA III |
| Number of HDDs supported | 24 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 240 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Internal drive bays | 8 x 2.5" |
| Optical drive type | DVD±RW |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2016 Windows Server 2012 R2 VMware ESXi 6.5 VMware ESXi 6.0 U3 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 123550 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1300 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439 mm |
| Depth | 712 mm |
| Height | 89 mm |
| Weight | 31 kg |
