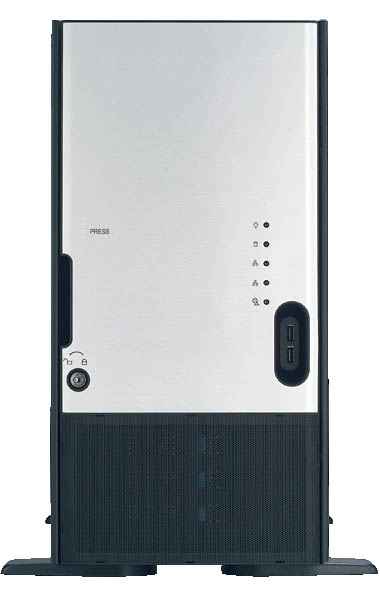

TERRA Server 6320
Model TERRA Server 6320Part no. 1100555
114 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory4 GB
- Storage1 TB
- OSNo
- Weight34.7 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 4 GB
- Storage
- 1 TB
- OS
- No
- Weight
- 34.7 kg
- Processor manufacturer
- Intel
- Brand
- TERRA
- Category
- Server
- Model
- TERRA Server 6320
- Part number
- 1100555
- Also known as
- TERRA 6320 server 1 TB Tower (5U) Intel® Xeon® 5000 Sequence E5506 2.13 GHz 4 GB DDR3-SDRAM 650 W
Specifications
114 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5506 |
| Processor frequency | 2.13 GHz |
| Processor cores | 4 |
| Processor cache | 4 MB |
| Motherboard chipset | Intel® 5500 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 4.8 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 16 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 144 GB |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
| Memory clock speeds supported by processor | 800 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SLBF8 |
| Processor codename | Nehalem EP |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 x 45 mm |
| Processor series | Intel Xeon 5500 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor system type | DP |
| Processor threads | 4 |
| Stepping | D0 |
| Tcase | 76 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 6 |
| Maximum internal memory | 48 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 500 GB |
| HDD interface | Serial ATA II |
| HDD size | 3.5" |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Internal drive bays | 4 x 3.5" |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (5U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | MS Windows Server 2003/2008 MS Windows Server 2008 R2 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 37096 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power requirements | 100 - 240V, 5 - 10A |
| Power supply | 650 W |
| Power supply input frequency | 50 - 60 Hz |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS, ISO9001 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 660 mm |
| Height | 425 mm |
| Weight | 34.7 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | AST2050 |
| Graphics card family | Aspeed |
| Motherboard manufacturer | Asus |
| Number of drive bays | 3 x 5.25", 1 x 3.5" |
