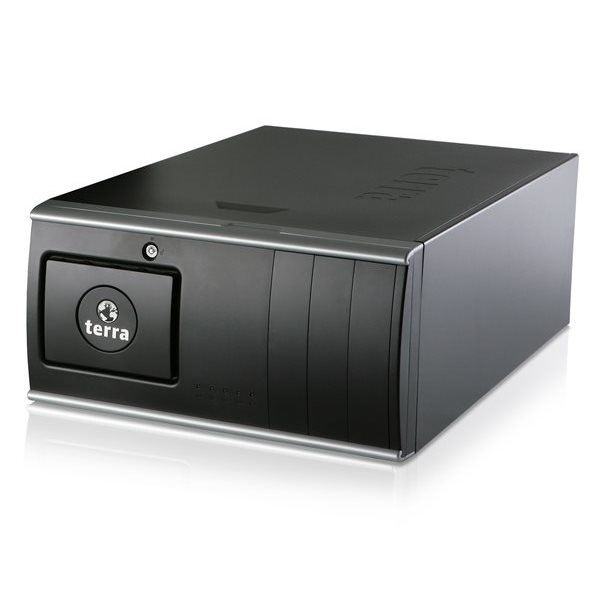

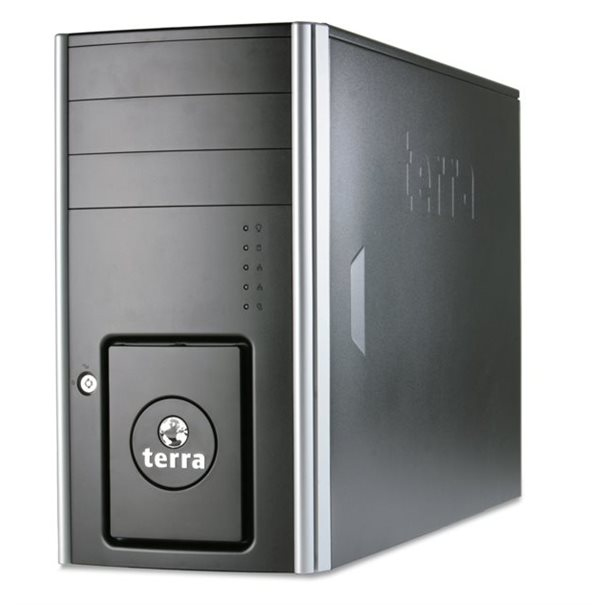

SERVER 6000
Model SERVER 6000Part no. 1100178EAN 4039407054657
72 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage1.92 TB
- OSNo
- Weight30 kg
- ColourBlack
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 1.92 TB
- OS
- No
- Weight
- 30 kg
- Colour
- Black
- Brand
- TERRA
- Category
- Server
- Model
- SERVER 6000
- Part number
- 1100178
- EAN / UPC
- 4039407054657
- Also known as
- TERRA 6000 server 1.92 TB Tower Intel Xeon Silver 4208 2.1 GHz 32 GB DDR4-SDRAM 650 W
Specifications
72 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4208 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 8 |
| Processor cache | 11 MB |
| Motherboard chipset | Intel® C624 |
| Memory channels supported by processor | Hexa |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 16 |
| Scalability | 2S |
| Supported instruction sets | AVX-512 |
| Tcase | 78 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory slots | 16x DIMM |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| SSD capacity | 1.92 TB |
| SSD interface | SATA |
| RAID support | Yes |
| RAID levels | 1 |
| Internal drive bays | 4x 3.5 " optional 8x 3.5" |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2019 Windows Server 2016 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 193390 |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, ISO9001 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 660 mm |
| Height | 425 mm |
| Weight | 30 kg |
