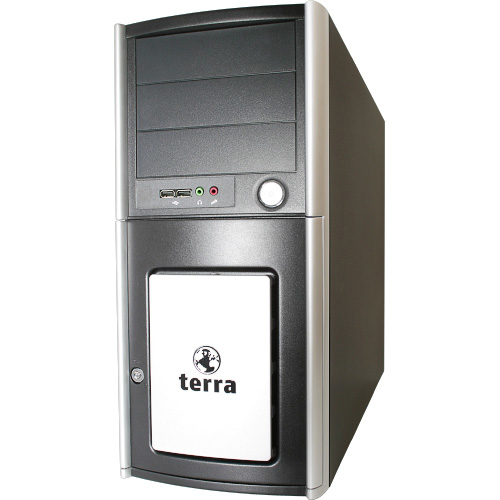

TERRA SERVER 5031 G1 (BTO)

Model TERRA SERVER 5031 G1 (BTO)Part no. 1100832

106 specifications

Overview

Brand: TERRA
Category: Server
Model: TERRA SERVER 5031 G1 (BTO)
Part number: 1100832
Also known as: TERRA 5031 G1 (BTO) server 0 GB Tower Intel® Xeon® E5 Family E5-2603V2 1.8 GHz 16 GB DDR3-SDRAM 650 W

106 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2603V2
Processor frequency	1.8 GHz
Processor cores	4
Processor cache	10 MB
Motherboard chipset	Intel C602A
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	6.4 GT/s
Bus type	QPI
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	42.6 GB/s
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Processor codename	Ivy Bridge EP
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v2
Processor socket	LGA 2011 (Socket R)
Processor threads	4
Scalability	2S
Supported instruction sets	AVX
Supported processor sockets	LGA 2011 (Socket R)
Tcase	71 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Total storage capacity	0 GB
Number of HDDs installed	0
Supported HDD sizes	3.5"
RAID support	Yes
RAID levels	0, 1, 5, 10
Optical drive type	DVD±RW
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Card reader integrated	No

Specification	Value
Maximum graphics card memory	16 MB

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
PS/2 ports quantity	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Tower

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2008 R2 Windows SBS 2011 Windows Server 2012 Windows Server 2012 R2

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	76157

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	650 W
Number of redundant power supplies installed	2
Number of main power supplies	1

Specification	Value
Certification	CE, ISO9001

Specification	Value
Graphics card	AST2300
Graphics card family	Aspeed
