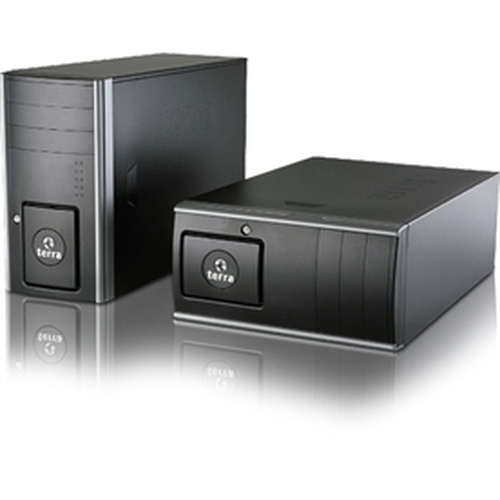

TERRA SERVER 4030 G1 SAS

Model TERRA SERVER 4030 G1 SASPart no. 1100804EAN 4039407022793

118 specifications

Overview

Brand: TERRA
Category: Server
Model: TERRA SERVER 4030 G1 SAS
Part number: 1100804
EAN / UPC: 4039407022793
Also known as: TERRA 4030 G1 SAS server 600 GB Tower Intel® Xeon® E3 V2 Family E3-1245V2 3.4 GHz 16 GB DDR3-SDRAM 650 W

118 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V2 Family
Processor model	E3-1245V2
Processor frequency	3.4 GHz
Processor boost frequency	3.8 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C204
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	77 W
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	34
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
Processor code	SR0P9
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v2
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Stepping	E1
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics P4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1250 MHz
Maximum graphics card memory	64 MB

Specification	Value
Chassis type	Tower

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2008 R2 Windows Server 2012 Windows 7 (32-/64-bit)

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	65729

Specification	Value
Redundant power supply (RPS) support	O
Power supply	650 W
Number of main power supplies	1
Power supply input frequency	50 - 60 Hz

Specification	Value
Certification	CE, ISO9001

Specification	Value
Graphics card	Server Engine LLC Pilot III
