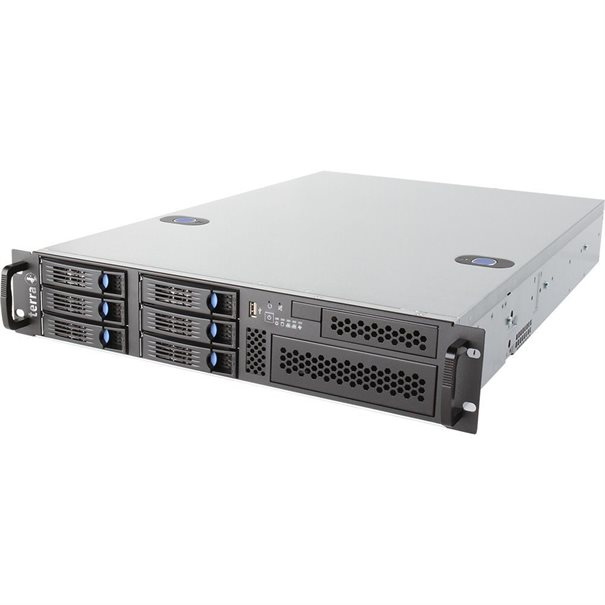

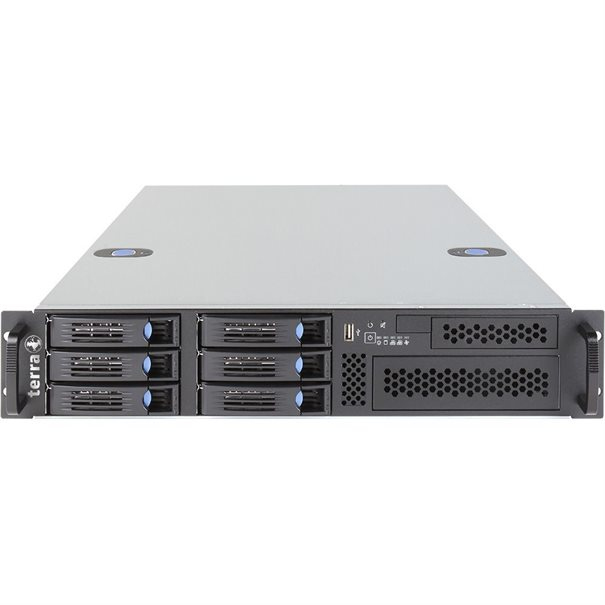

TERRA SERVER 3230 G3 SSD
TERRA

TERRA SERVER 3230 G3 SSD

Model TERRA SERVER 3230 G3 SSDPart no. 1100995EAN 4039407045648

54 specifications
  • ProcessorIntel® Xeon® E3 v6
  • Memory16 GB
  • Storage960 GB
  • GraphicsAspeed AST2400
  • OSNo
  • Weight30.2 kg
See all specifications

Overview

Processor
Intel® Xeon® E3 v6
Memory
16 GB
Storage
960 GB
Graphics
Aspeed AST2400
OS
No
Weight
30.2 kg
Brand
TERRA
Category
Server
Model
TERRA SERVER 3230 G3 SSD
Part number
1100995
EAN / UPC
4039407045648
Also known as
TERRA 3230 G3 SSD server 960 GB Rack (2U) Intel® Xeon® E3 v6 E3-1230V6 3.5 GHz 16 GB DDR4-SDRAM 600 W

Specifications

54 specifications in 13 groups

Processor

Processor familyIntel® Xeon® E3 v6
Processor modelE3-1230V6
Processor frequency3.5 GHz
Processor cores4
Motherboard chipsetIntel® C236
Number of processors installed1
Processor socketLGA 1151 (Socket H4)

Memory

Internal memory16 GB
Internal memory typeDDR4-SDRAM
ECCYes
Memory clock speed2133 MHz
Memory slots4
Maximum internal memory64 GB

Storage

Total storage capacity960 GB
HDD interfaceSerial ATA III
HDD speed7200 RPM
Number of HDDs supported6
Supported HDD sizes3.5"
Number of SSDs installed2
SSD capacity480 GB
RAID supportYes
RAID levels0, 1, 5, 10
Optical drive typeDVD±RW

Graphics

Discrete graphics cardYes
Discrete graphics card modelAspeed AST2400
Maximum graphics card memory32 MB

Network

Cabling technology10/100/1000Base-T(X)
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I210-AT

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
PS/2 ports quantity1
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express x4 (Gen 3.x) slots1
PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1

Design

Chassis typeRack (2U)
Rack mountingYes

Software

Operating system installedNo
Compatible operating systemsWindows Server 2012 R2 Windows Server 2016

Power

Redundant power supply (RPS) supportYes
Power supply600 W
Number of redundant power supplies supported2
Number of redundant power supplies installed1
Power supply input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)10 - 75%

Certificates

CertificationCE, ISO 9001

Weight & dimensions

Width430 mm
Depth660 mm
Height88 mm
Weight30.2 kg
