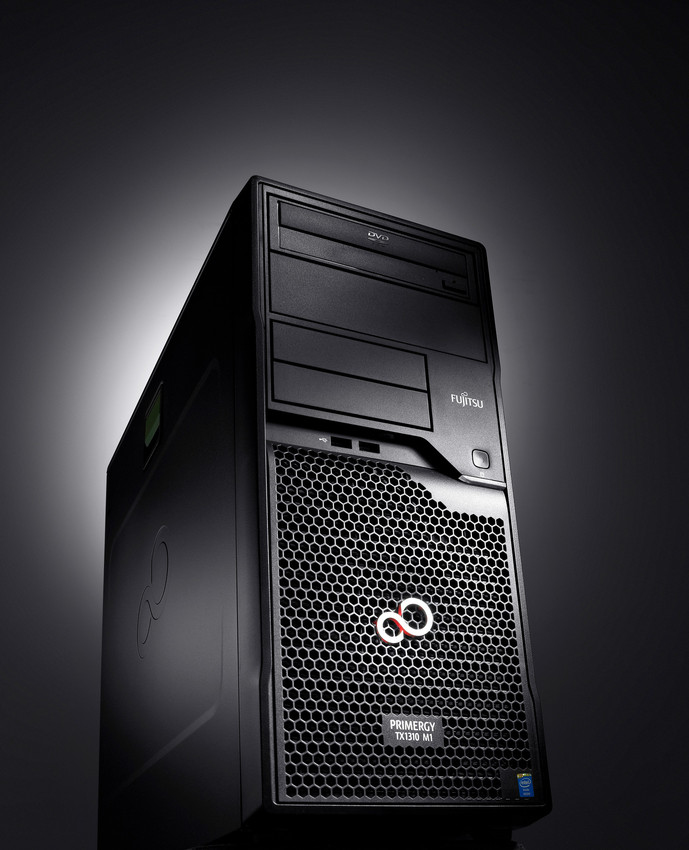

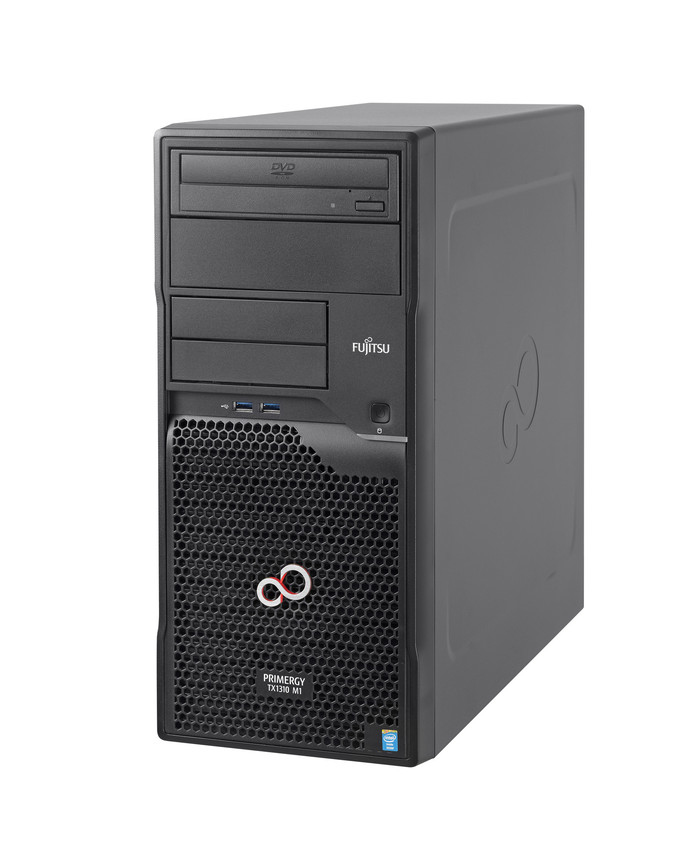

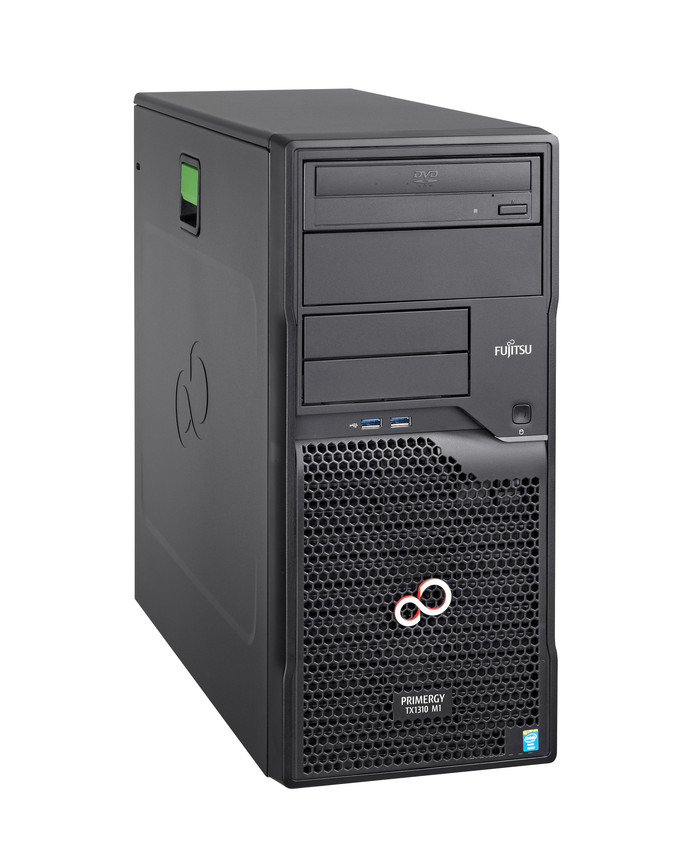

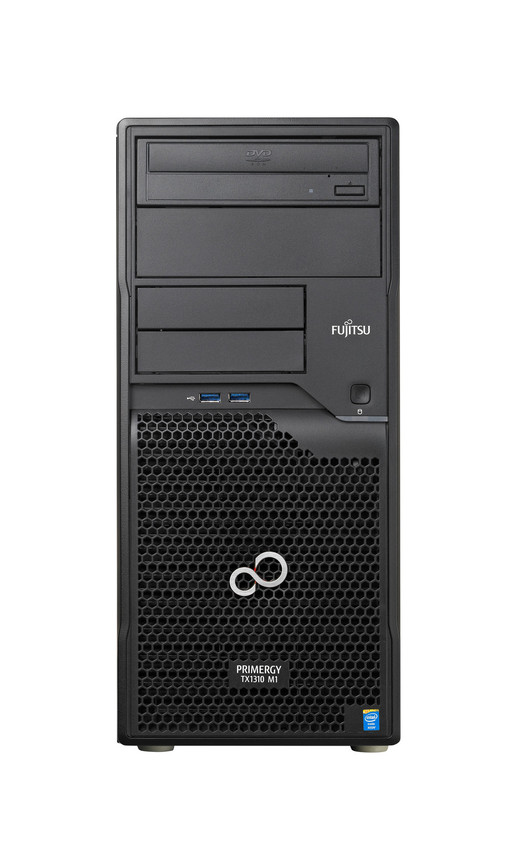

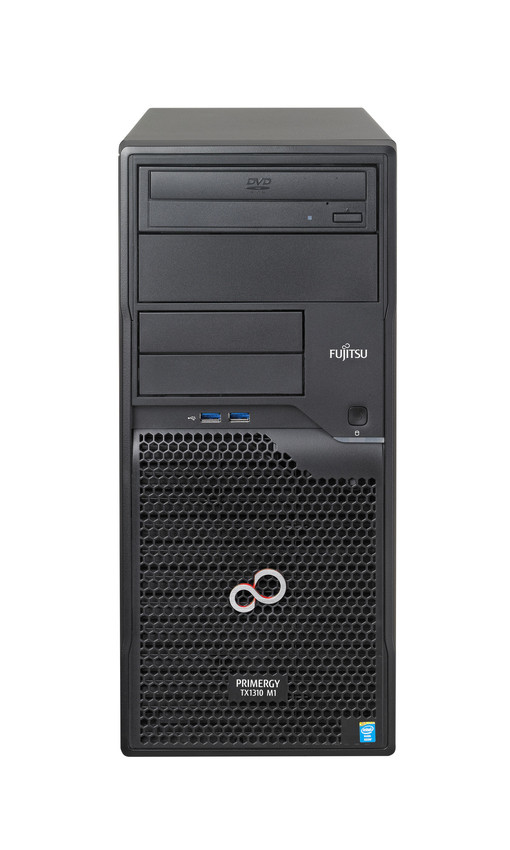

PRIMERGY TX1310 M1
Model PRIMERGY TX1310 M1Part no. VFY:T1311SC060INEAN 4053026674843
137 specifications
- ProcessorIntel® Xeon® E3 V3 Family
- Memory8 GB
- Storage1 TB
- Noise24 dB
- OSNo
- Weight14 kg
Overview
- Processor
- Intel® Xeon® E3 V3 Family
- Memory
- 8 GB
- Storage
- 1 TB
- Noise
- 24 dB
- OS
- No
- Weight
- 14 kg
- Brand
- Fujitsu
- Category
- Server
- Model
- PRIMERGY TX1310 M1
- Part number
- VFY:T1311SC060IN
- EAN / UPC
- 4053026674843
- Also known as
- Fujitsu PRIMERGY TX1310 M1 server 1 TB Tower Intel® Xeon® E3 V3 Family E3-1226V3 3.3 GHz 8 GB DDR3-SDRAM 250 W
Specifications
137 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 V3 Family |
| Processor model | E3-1226V3 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C226 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 84 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI2 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 16 |
| Maximum number of SMP processors | 1 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v3 |
| Processor socket | LGA 1150 (Socket H3) |
| Processor threads | 4 |
| Scalability | 1S |
| Stepping | C0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013D |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4 |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 500 GB |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-Plug support | No |
| Internal drive bays | 4 |
| Optical drive type | DVD Super Multi |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics P4600 |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| Number of execution units | 20 |
| On-board graphics card DirectX version | 11.2 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210, Intel® I217 |

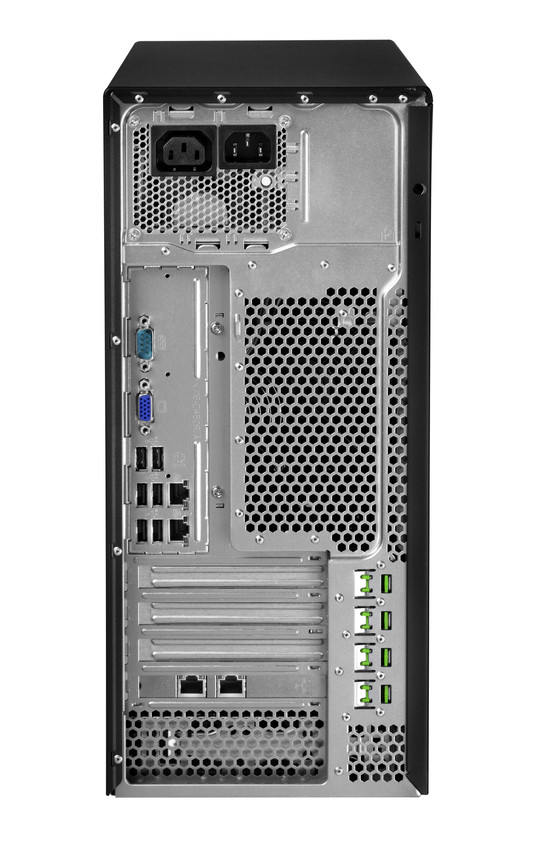

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Performance
| Specification | Value |
|---|---|
| Noise level | 24 dB |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Hyper-V Server 2012 R2, Microsoft Windows Server 2012 R2 Datacenter, Microsoft Windows Server 2012 R2 Standard, Microsoft Windows Server 2012 R2 Essentials, Microsoft Windows Server 2012 R2 Foundation, Microsoft Windows Storage Server 2012 R2 Standard, Microsoft Hyper-V Server 2012, Micros |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 80917 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 250 W |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | CB, RoHS, WEEE, GS, CE A, CSA us, ULc/us, FCC A, VCCI A, KC, C-Tick |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 419 mm |
| Height | 395 mm |
| Weight | 14 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | HD Graphics P4600 |
| Graphics card family | Intel |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
