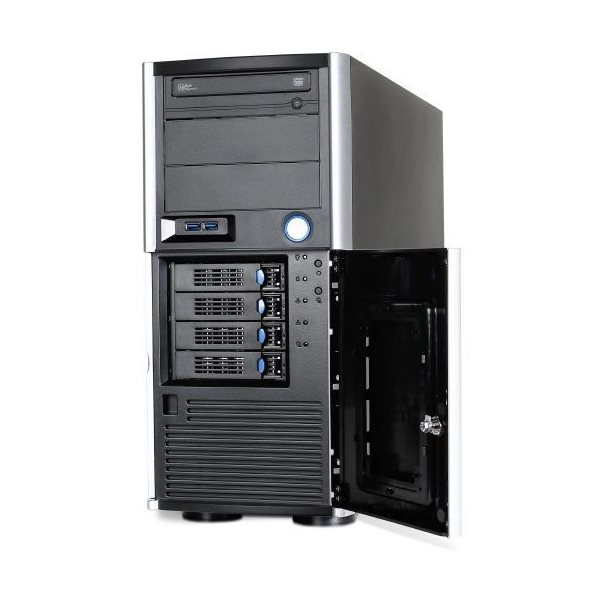

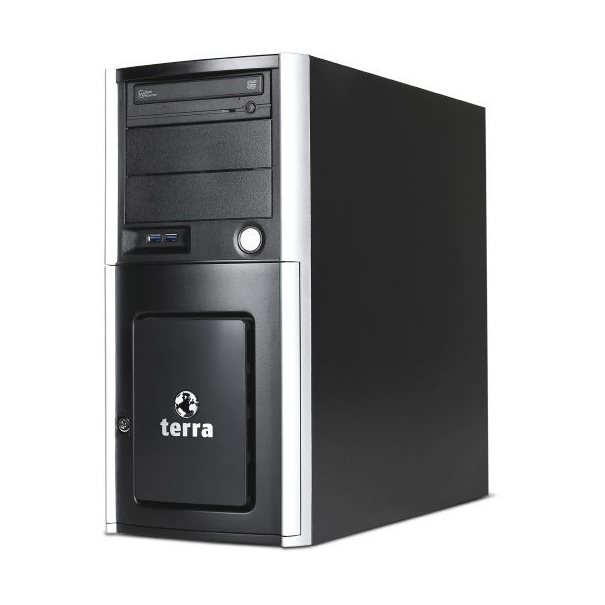

Server 3030
Model Server 3030Part no. 1100253EAN 4039407068760
61 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage1.92 TB
- OSNo
- Weight26.5 kg
- ColourBlack
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 1.92 TB
- OS
- No
- Weight
- 26.5 kg
- Colour
- Black
- Brand
- TERRA
- Category
- Server
- Model
- Server 3030
- Part number
- 1100253
- EAN / UPC
- 4039407068760
- Also known as
- TERRA 3030 server 1.92 TB Tower Intel® Xeon® E-2286G 4 GHz 16 GB DDR4-SDRAM 650 W
Specifications
61 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E-2286G |
| Processor frequency | 4 GHz |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C246 |
| Number of processors installed | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| Internal drive bays | 4x 3.5 " |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2500 |
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2019 Windows Server 2016 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 650 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 570 mm |
| Height | 440 mm |
| Weight | 26.5 kg |
