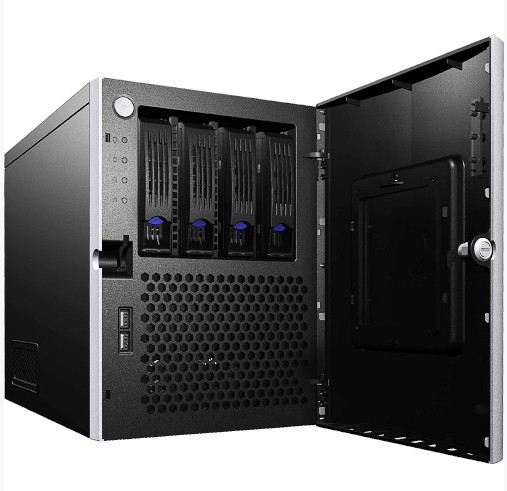

TERRA G3 WS2016 Essentials
Model G3 WS2016 EssentialsPart no. 1100957EAN 4039407038633
116 specifications
- ProcessorIntel® Xeon® E3 v5
- Memory16 GB
- Storage480 GB
- GraphicsAspeed AST2400
- OSWindows Server 2016 Essentials
- Weight14 kg
Overview
- Processor
- Intel® Xeon® E3 v5
- Memory
- 16 GB
- Storage
- 480 GB
- Graphics
- Aspeed AST2400
- OS
- Windows Server 2016 Essentials
- Weight
- 14 kg
- Brand
- TERRA
- Category
- Server
- Model
- G3 WS2016 Essentials
- Part number
- 1100957
- EAN / UPC
- 4039407038633
- Also known as
- TERRA G3 WS2016 Essentials server 480 GB Mini Tower Intel® Xeon® E3 v5 E3-1220V5 3 GHz 16 GB DDR4-SDRAM 400 W Windows Server 2016 Essentials
Specifications
116 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 v5 |
| Processor model | E3-1220V5 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C232 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Configurable TDP-down | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 64 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Processor code | SR2LG |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v5 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Scalability | 1S |
| Stepping | R0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory slots | 2 |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA III |
| Number of HDDs supported | 6 |
| Supported HDD sizes | 2.5,3.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 240 GB |
| SSD interface | SATA |
| RAID support | Yes |
| RAID levels | 1 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | Aspeed AST2400 |
| On-board graphics card | No |
| Number of displays supported (on-board graphics) | 0 |
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2016 Essentials |
| Compatible operating systems | Windows Server 2012 R2 Windows Server 2016 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 88172 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 400 W |
| Number of redundant power supplies supported | 0 |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Certificates
| Specification | Value |
|---|---|
| Certification | 80+ gold |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 340 mm |
| Height | 270 mm |
| Weight | 14 kg |
Technical details
| Specification | Value |
|---|---|
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 4 |
What people say
Reviews & ratings
TERRA G3 WS2016 Essentials
No reviews yet
Be the first to tell others how TERRA G3 WS2016 Essentials works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare TERRA G3 WS2016 Essentials
All server comparisons- TERRA G3 WS2016 Essentials vsTERRA 1030 G3 WS2016ECompare specs
- TERRA G3 WS2016 Essentials vsTERRA SERVER 7220 G3Compare specs
- TERRA G3 WS2016 Essentials vsTERRA G3 WS2016Compare specs
- TERRA G3 WS2016 Essentials vsTERRA 4030 G3 WS2016S (SSD)Compare specs
- TERRA G3 WS2016 Essentials vsFujitsu RX1330 M2 LFFCompare specs
- TERRA G3 WS2016 Essentials vsLenovo TD350 + 01GU569Compare specs
- TERRA G3 WS2016 Essentials vsLenovo ThinkServer TS460 serverCompare specs

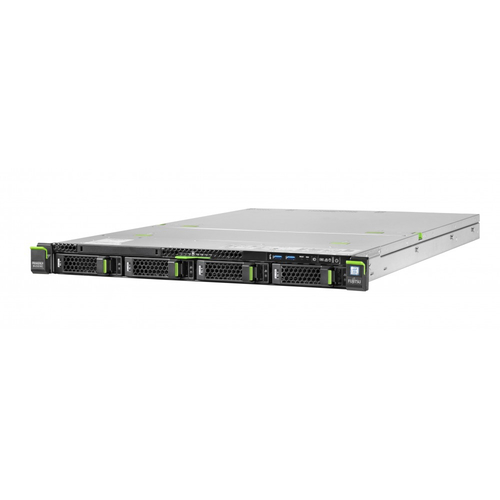

- TERRA G3 WS2016 Essentials vsFujitsu PRIMERGY RX2510M2 serverCompare specs
