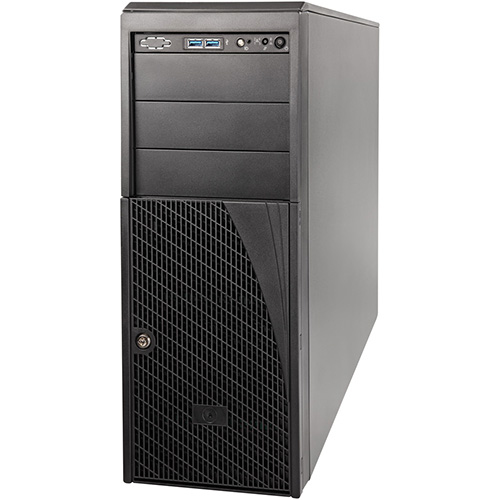

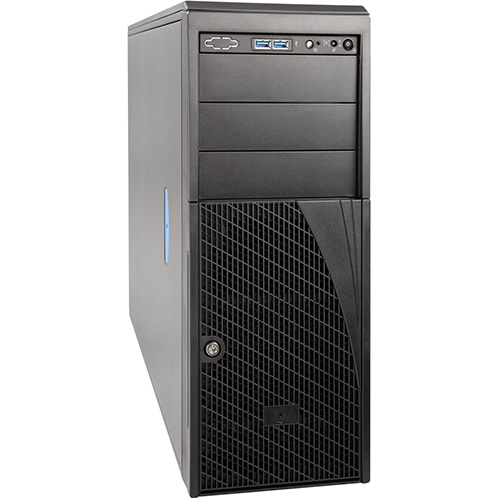

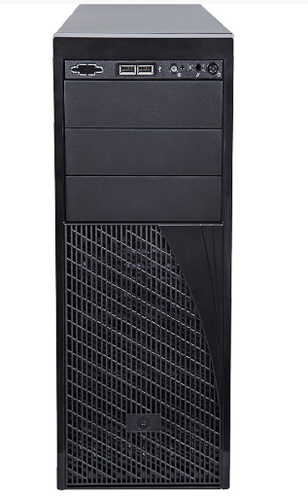

TERRA 7420 G2

Model TERRA 7420 G2Part no. 1100881EAN 4039407029228

119 specifications

Overview

Brand: TERRA
Category: Server
Model: TERRA 7420 G2
Part number: 1100881
EAN / UPC: 4039407029228
Also known as: TERRA 7420 G2 server 480 GB Tower Intel Xeon E5 v3 E5-2620V3 2.4 GHz 32 GB DDR4-SDRAM

119 specifications in 13 groups

Specification	Value
Processor manufacturer	intel
Processor family	Intel Xeon E5 v3
Processor model	E5-2620V3
Processor frequency	2.4 GHz
Processor boost frequency	3.2 GHz
Processor cores	6
Processor cache	15 MB

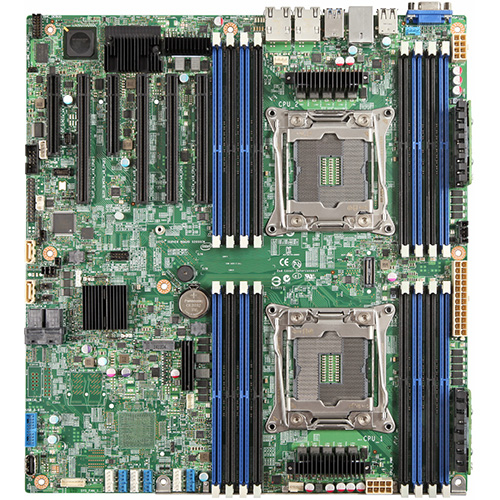

Motherboard chipset	Intel C610
Memory channels supported by processor	Quad
Number of processors installed	2
Thermal Design Power (TDP)	85 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	22 nm
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	59 GB/s
Memory clock speeds supported by processor	1600,1866 MHz
Memory types supported by processor	DDR4-SDRAM
Memory voltage supported by processor	1.3 V
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR207
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	12
Scalability	2S
Stepping	R2
Supported instruction sets	AVX
Tcase	72.6 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
On-board graphics card model	Not available

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Serial ports quantity	0
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Tower

Specification	Value
Compatible operating systems	Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	83352

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 75%

Specification	Value
Number of 2.5" bays	24
