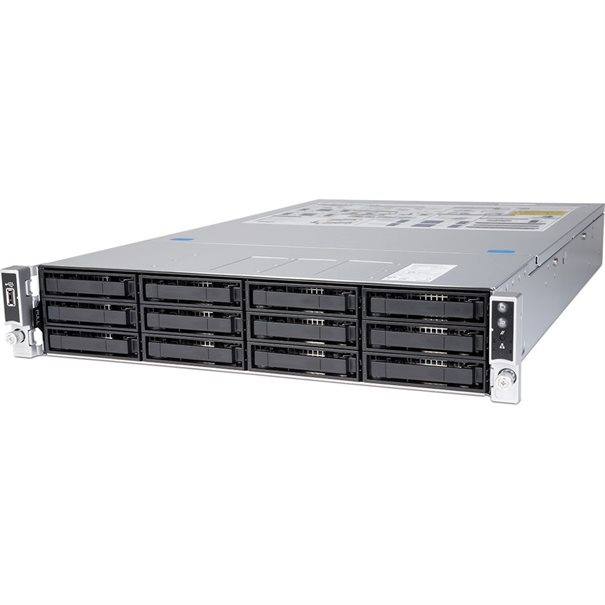

7230 G3
Model 7230 G3Part no. 1100973
56 specifications
- ProcessorIntel® Xeon®
- Memory32 GB
- Processor manufacturerIntel
- Optical drive typeDVD±RW
- PCI Express slots version3.0
- Rack mountingYes
Overview
- Processor
- Intel® Xeon®
- Memory
- 32 GB
- Processor manufacturer
- Intel
- Optical drive type
- DVD±RW
- PCI Express slots version
- 3.0
- Rack mounting
- Yes
- Brand
- TERRA
- Category
- Server
- Model
- 7230 G3
- Part number
- 1100973
- Also known as
- TERRA 7230 G3 server Intel® Xeon® 3104 1.7 GHz 32 GB DDR4-SDRAM 1100 W
Specifications
56 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 3104 |
| Processor frequency | 1.7 GHz |
| Processor cores | 6 |
| Processor cache | 8.25 MB |
| Motherboard chipset | Intel® C624 |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3GM |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 6 |
| Scalability | 2S |
| Stepping | U0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 78 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD±RW |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2019 Windows Server 2016 Windows Server 2012 R2 VMware ESXi 6.7 VMware ESXi 6.5 VMware ESXi 6.0 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 123546 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Power supply input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439 mm |
| Depth | 712 mm |
| Height | 89 mm |
