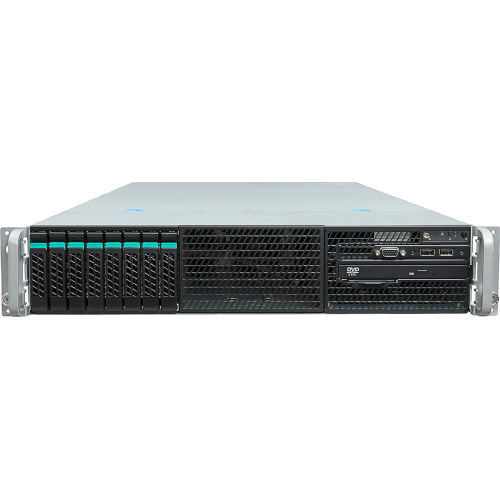

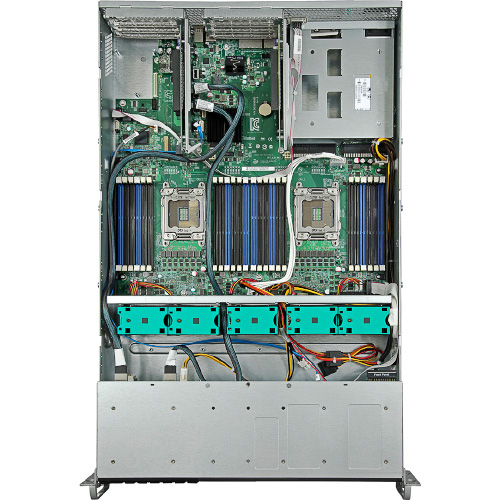

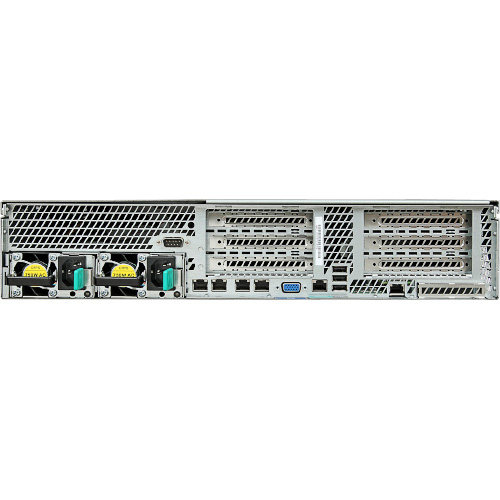

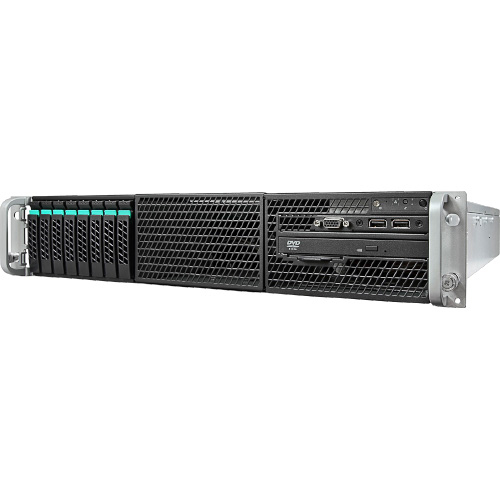

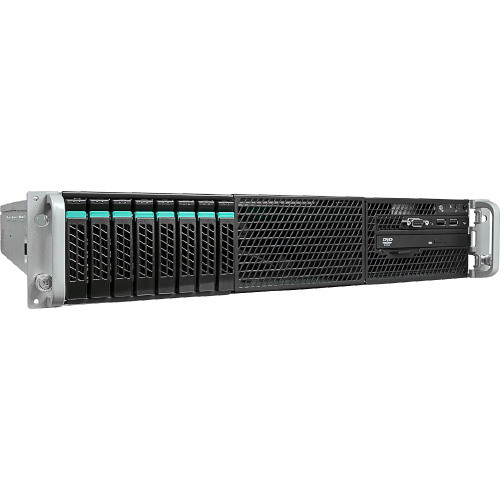

TERRA 7220 G1

Model TERRA 7220 G1Part no. 1100842EAN 4039407026593

116 specifications

Overview

Brand: TERRA
Category: Server
Model: TERRA 7220 G1
Part number: 1100842
EAN / UPC: 4039407026593
Also known as: TERRA 7220 G1 server 600 GB Rack (2U) Intel® Xeon® E5 V2 Family E5-2620V2 2.1 GHz 32 GB DDR3-SDRAM 750 W

116 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2620V2
Processor frequency	2.1 GHz
Processor boost frequency	2.6 GHz
Processor cores	6
Processor cache	15 MB
Motherboard chipset	Intel® C602
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	7.2 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	51.2 GB/s
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Processor codename	Ivy Bridge EP
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v2
Processor socket	LGA 2011 (Socket R)
Processor threads	12
Scalability	2S
Supported instruction sets	AVX
Tcase	71 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Maximum graphics card memory	16 MB

Specification	Value
PCI Express x16 slots	6
PCI Express slots version	3.0

Specification	Value
Chassis type	Rack (2U)
Rack mounting	Yes

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2012 Windows Server 2012 R2 VMware ESXi 5.0 (E5 v1) VMware ESXi 5.1 (E5 v1) VMware ESXi 5.1 (E5 v2) VMware ESXi 5.5 (E5 v1) VMware ESXi 5.5 (E5 v2) VMware ESXi 6.0 (E5 v1) VMware ESXi 6.0 (E5 v2)

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75789

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W
Number of main power supplies	2

Specification	Value
Certification	CE

Specification	Value
Sustainability certificates	EPEAT Bronze

Specification	Value
Number of 2.5" bays	8

Specification	Value
Built-in display	No
Graphics card family	Intel
