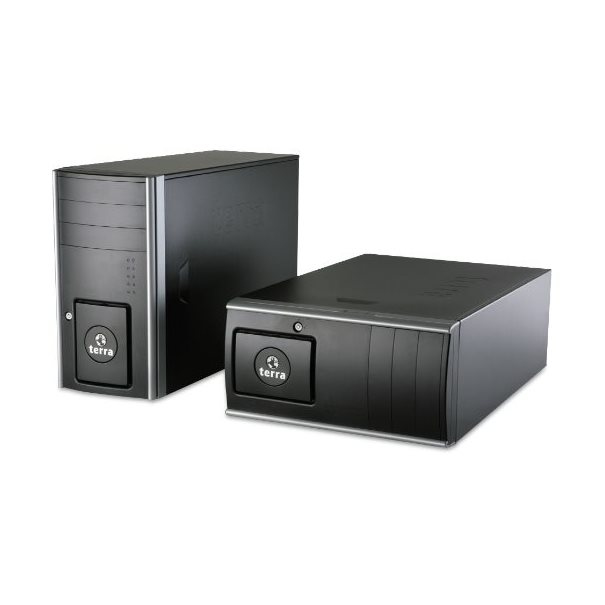

TERRA 5530 G3
Model 5530 G3Part no. 1100998EAN 4039407046553
86 specifications
- ProcessorIntel® Xeon®
- Memory32 GB
- Storage960 GB
- GraphicsAspeed AST2500
- OSNo
- Weight28.3 kg
Overview
- Processor
- Intel® Xeon®
- Memory
- 32 GB
- Storage
- 960 GB
- Graphics
- Aspeed AST2500
- OS
- No
- Weight
- 28.3 kg
- Brand
- TERRA
- Category
- Server
- Model
- 5530 G3
- Part number
- 1100998
- EAN / UPC
- 4039407046553
- Also known as
- TERRA 5530 G3 server 960 GB Tower Intel® Xeon® 4110 2.1 GHz 32 GB DDR4-SDRAM 650 W
Specifications
86 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 4110 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3 GHz |
| Processor cores | 8 |
| Processor cache | 11 MB |
| Motherboard chipset | Intel® C621 |
| Memory channels supported by processor | Hepta |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Maximum number of SMP processors | 2 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | LPDDR4-SDRAM |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 16 |
| Scalability | 2S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 77 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory slots | 8x DIMM |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Internal drive bays | 4x 3.5" |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | Aspeed AST2500 |
| Maximum graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | Incl. ASMB9-iKVM Modul |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2016 Windows Server 2012 R2 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 123547 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 650 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 1 |
| Power supply input frequency | 50 - 60 Hz |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, ISO 9001 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 660 mm |
| Height | 425 mm |
| Weight | 28.3 kg |
