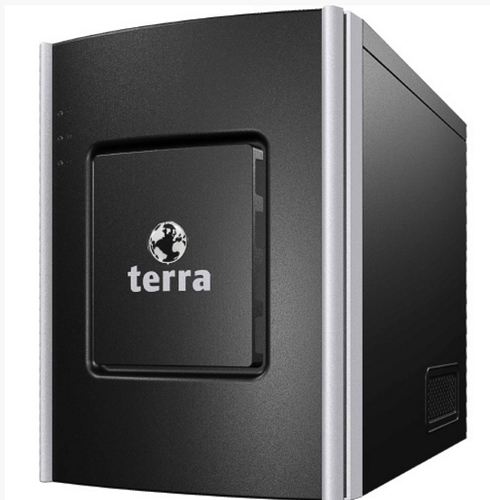

TERRA 4030 G3 WS2012R2S
Model 4030 G3 WS2012R2SPart no. 1100928EAN 4039407035922
119 specifications
- ProcessorIntel® Xeon® E3 Family
- Memory16 GB
- Storage1.2 TB
- OSWindows Server 2012 R2 Standard
- Weight26 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E3 Family
- Memory
- 16 GB
- Storage
- 1.2 TB
- OS
- Windows Server 2012 R2 Standard
- Weight
- 26 kg
- Processor manufacturer
- Intel
- Brand
- TERRA
- Category
- Server
- Model
- 4030 G3 WS2012R2S
- Part number
- 1100928
- EAN / UPC
- 4039407035922
- Also known as
- TERRA 4030 G3 WS2012R2S server 1.2 TB Tower Intel® Xeon® E3 Family E3-1245 3.3 GHz 16 GB DDR4-SDRAM 650 W Windows Server 2012 R2 Standard
Specifications
119 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1245 |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C236 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 33 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 20 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Processor code | SR00L |
| Processor codename | Sandy Bridge |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 8 |
| Scalability | 1S |
| Stepping | D2 |
| Supported instruction sets | AVX |
| Tcase | 72.6 °C |
| Thermal Monitoring Technologies | Yes |
| VID Voltage Range | 0.55 - 1.52 V |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2133 MHz |
| Memory slots | 4 |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 600 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 10000 RPM |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Hot-swap | Yes |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics P3000 |
| Maximum on-board graphics card memory | 1.7 GB |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1350 MHz |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2012 R2 Standard |
| Compatible operating systems | Windows Server 2012 R2 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Advanced Vector Extensions | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Pro Wireless Display (Intel® Pro WiDi) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 52274 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | O |
| Power supply | 650 W |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, ISO9001 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 570 mm |
| Height | 440 mm |
| Weight | 26 kg |
Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
