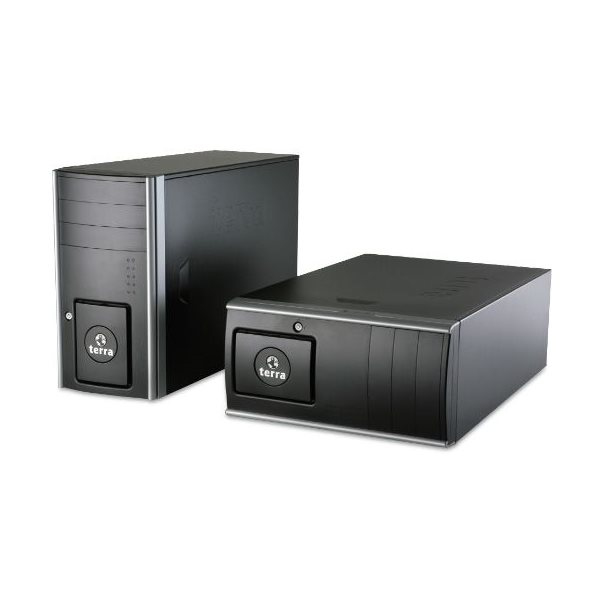

TERRA 1100999 server

960 GB Tower Intel® Xeon® 4110 2.1 GHz 32 GB DDR4-SDRAM 650 W

Model 1100999EAN 4039407048397

78 specifications

Overview

Brand: TERRA
Category: Server
Model: 1100999
Part number: 1100999
EAN / UPC: 4039407048397
Also known as: TERRA 1100999 server 960 GB Tower Intel® Xeon® 4110 2.1 GHz 32 GB DDR4-SDRAM 650 W

78 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor generation	1st Generation Intel® Xeon® Scalable
Processor model	4110
Processor frequency	2.1 GHz
Processor boost frequency	3 GHz
Processor cores	8
Processor cache	11 MB
Motherboard chipset	Intel® C624
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	L3
Embedded options available	Yes
Execute Disable Bit	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2400 MHz
Memory types supported by processor	LPDDR4-SDRAM
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	76.0 x 56.5 mm
Processor socket	LGA 3647 (Socket P)
Processor threads	16
Scalability	2S
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Supported processor sockets	LGA 3647 (Socket P)
Tcase	77 °C
Conflict-Free processor	Yes

Specification	Value
Maximum graphics card memory	16 MB

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
VGA (D-Sub) ports quantity	1

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	123547

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	650 W
Number of redundant power supplies supported	1

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 75%

Specification	Value
Certification	CE, ISO 9001
