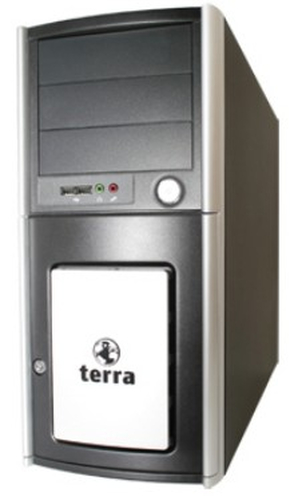

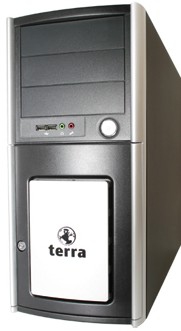

TERRA 1100531 server

1 TB Tower Intel® Xeon® 3000 Sequence X3430 2.4 GHz 4 GB DDR3-SDRAM 550 W

Model 1100531

109 specifications

Overview

Brand: TERRA
Category: Server
Model: 1100531
Part number: 1100531
Also known as: TERRA 1100531 server 1 TB Tower Intel® Xeon® 3000 Sequence X3430 2.4 GHz 4 GB DDR3-SDRAM 550 W

109 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 3000 Sequence
Processor model	X3430
Processor frequency	2.4 GHz
Processor boost frequency	2.8 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® 3420
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	95 W
Processor cache type	Smart Cache
System bus rate	2.5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	18
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	21 GB/s
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Number of Processing Die Transistors	774 M
PCI Express configurations	1x16, 2x8, 4x4
Physical Address Extension (PAE)	36 bit
Processing Die size	296 mm²
Processor code	SLBLJ
Processor codename	Lynnfield
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon 3400 Series
Processor socket	LGA 1156 (Socket H)
Processor threads	4
Stepping	B1
Supported instruction sets	SSE4.2
Tcase	72.7 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Maximum graphics card memory	8 MB

Specification	Value
Ethernet LAN	Yes
Networking features	Gigabit Ethernet

Specification	Value
Chassis type	Tower

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2003/2008, Windows Server 2008 R2, Windows XP/Vista/7, RedHAT/SuSE Linux

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42927

Specification	Value
Redundant power supply (RPS) support	Yes
Power requirements	100 - 240V, 5 - 10 A
Power supply	550 W
Number of main power supplies	1
Power supply input frequency	50 - 60 Hz

Specification	Value
Certification	CE, ISO9001
