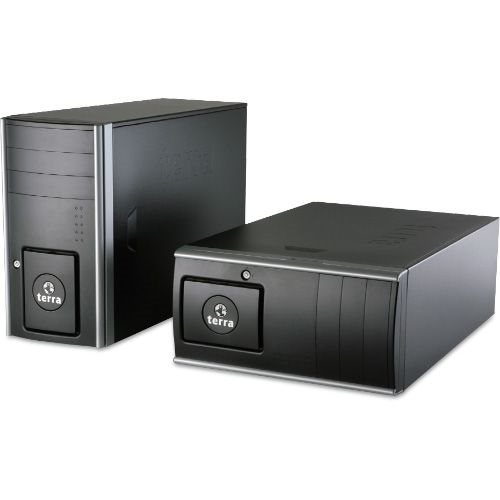

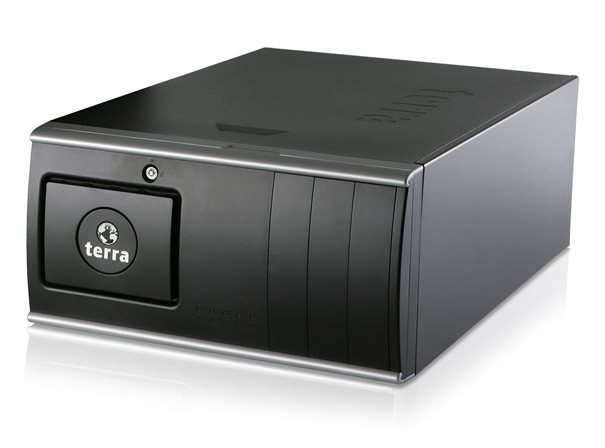

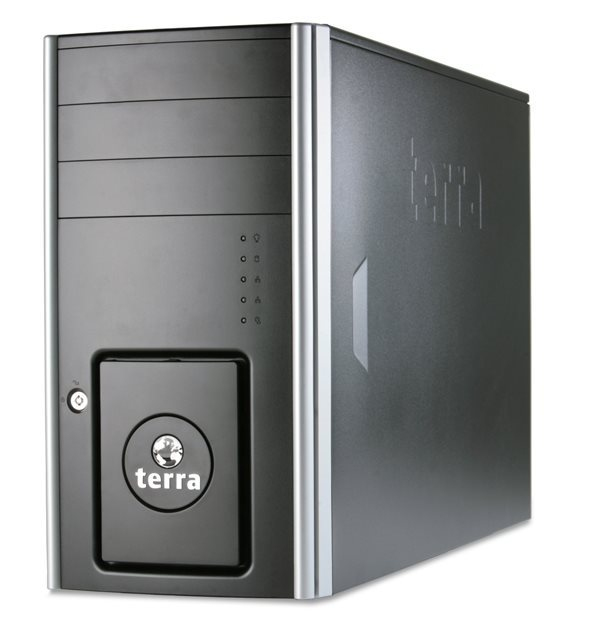

1100321 server
3.8 TB Tower Intel Xeon Silver 4309Y 2.8 GHz 64 GB DDR4-SDRAM 800 W
Model 1100321EAN 4039407079971
54 specifications
- ProcessorIntel Xeon Silver
- Memory64 GB
- Storage3.8 TB
- OSNo
- Weight30.5 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 64 GB
- Storage
- 3.8 TB
- OS
- No
- Weight
- 30.5 kg
- Processor manufacturer
- Intel
- Brand
- TERRA
- Category
- Server
- Model
- 1100321
- Part number
- 1100321
- EAN / UPC
- 4039407079971
- Also known as
- TERRA 1100321 server 3.8 TB Tower Intel Xeon Silver 4309Y 2.8 GHz 64 GB DDR4-SDRAM 800 W
Specifications
54 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4309Y |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor cores | 8 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C621A |
| Memory channels supported by processor | Octa |
| Number of processors installed | 1 |
| Maximum number of SMP processors | 2 |
| Processor socket | LGA 4189 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory ranking | 8 |
| ECC | Yes |
| Memory slots | 16x DIMM |
| Maximum internal memory | 4 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 1.9 TB |
| Total storage capacity | 3.8 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 3.8 TB |
| SSD interface | SATA III |
| RAID support | Yes |
| RAID levels | 1 |
| Supported RAID controllers | Broadcom MegaRAID 9560-8i |
| Number of 5.25" bays | 3 |
| Internal drive bays | 4x 3.5"/2.5" ¦ optional 8x 3.5"/2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel I210, Intel® X550 |
| Number of LAN controllers | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cooling type | Active |
Performance
| Specification | Value |
|---|---|
| Remote administration | Ja |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2019¦ |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of main power supplies | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 660 mm |
| Height | 425 mm |
| Weight | 30.5 kg |
Other features
| Specification | Value |
|---|---|
| Memory type | 16x DDR4 PC3200/2933, REG ECC |
| Motherboard manufacturer | Supermicro X12DAI-N6 |
