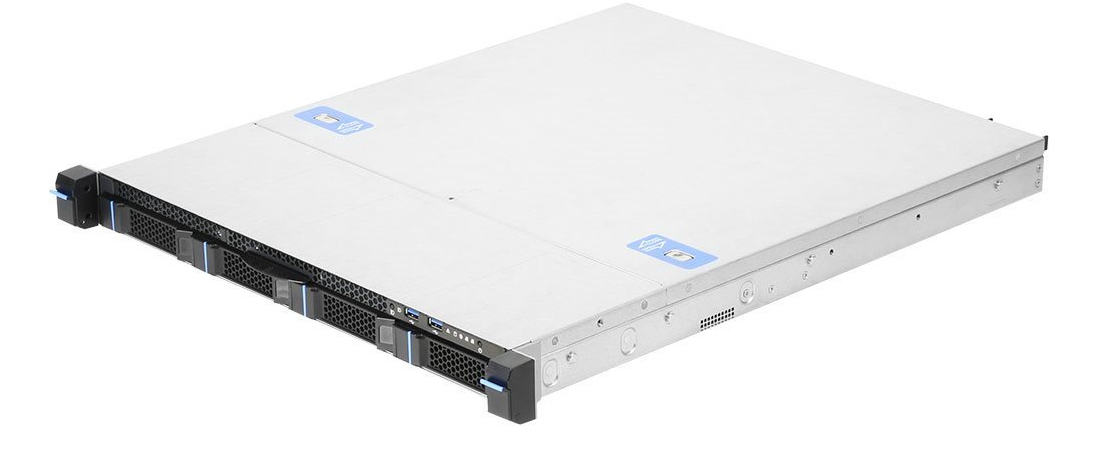

1100257 server
1.92 TB Rack (1U) Intel® Xeon® E-2324G 3.1 GHz 32 GB DDR4-SDRAM 400 W Windows Server 2022 Standard
Model 1100257
70 specifications
- ProcessorIntel® Xeon®
- Memory32 GB
- Storage1.92 TB
- OSWindows Server 2022 Standard
- ColourBlack, Zinc
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon®
- Memory
- 32 GB
- Storage
- 1.92 TB
- OS
- Windows Server 2022 Standard
- Colour
- Black, Zinc
- Processor manufacturer
- Intel
- Brand
- TERRA
- Category
- Server
- Model
- 1100257
- Part number
- 1100257
- Also known as
- TERRA 1100257 server 1.92 TB Rack (1U) Intel® Xeon® E-2324G 3.1 GHz 32 GB DDR4-SDRAM 400 W Windows Server 2022 Standard
Specifications
70 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E-2324G |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C256 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1200 (Socket H5) |
| Intel® Optane™ Memory Ready | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Supported HDD sizes | 2.5,3.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | 2.5", 3.5" |
| RAID support | Yes |
| RAID levels | 1 |
| Supported RAID controllers | Onboard-Controller |
| Hot-swap | Yes |
| Number of 5.25" bays | 1 |
| Internal drive bays | 4x 3.5"/2.5" (HotSwap-fähig) ¦ 2x 2.5" (für Festeinbau von SSDs) |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
| Maximum graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
| Number of LAN controllers | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Total number of SATA connectors | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Zinc |
| Cooling type | Passive |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | Ja |
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2022 Standard |
| Compatible operating systems | Windows Server 2019¦ |
| Operating system language | Multilingual |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 400 W |
| Number of main power supplies | 1 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438.5 mm |
| Depth | 547.6 mm |
| Height | 43.5 mm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Other features
| Specification | Value |
|---|---|
| Memory type | 4x DDR4 PC3200/2933/2666, UB ECC |
| Motherboard manufacturer | Asus P12R-E |
