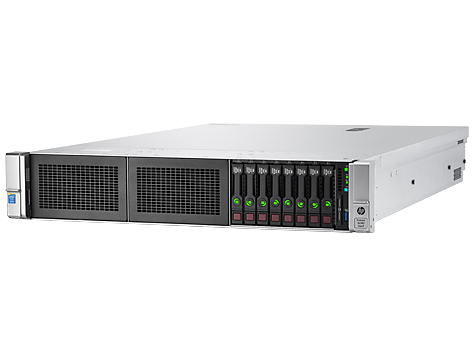

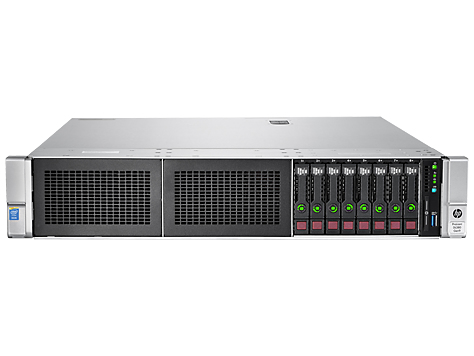

HPE ProLiant DL380 Gen9 8SFF 2U
Model HPE ProLiant DL380 Gen9 8SFF 2UPart no. T1A-S-826684-B21-EEAN 5711603070189
83 specifications
- ProcessorIntel® Xeon® E5 v4
- Memory32 GB
- Storage0 GB
- OSNo
- Weight14.8 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E5 v4
- Memory
- 32 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 14.8 kg
- Processor manufacturer
- Intel
- Brand
- T1A
- Category
- Server
- Model
- HPE ProLiant DL380 Gen9 8SFF 2U
- Part number
- T1A-S-826684-B21-E
- EAN / UPC
- 5711603070189
- Also known as
- T1A Enterprise HPE ProLiant DL380 Gen9 8SFF 2U server 0 GB Rack (2U) Intel® Xeon® E5 v4 E5-2650V4 2.2 GHz 32 GB DDR4-SDRAM 800 W
Specifications
83 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-2650V4 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 2.9 GHz |
| Processor cores | 12 |
| Processor cache | 30 MB |
| Memory channels supported by processor | Quad |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | Smart Cache |
| System bus rate | 9.6 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 1.53 TB |
| Maximum number of PCI Express lanes | 40 |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SR2N3 |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 52.5 mm |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 24 |
| Scalability | 2S |
| Stepping | M0 |
| Supported instruction sets | AVX 2.0 |
| Tcase | 80 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 24x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI-X slots | 6 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 91767 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies installed | 2 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 680 mm |
| Height | 90 mm |
| Weight | 14.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Other features
| Specification | Value |
|---|---|
| Integrated LAN | Yes |
